Successful Center Seat Retrofit

OK guys, despite the numerous people saying it was impossible...it's now complete. I've retrofitted the center (7th seat) into a 2006 R500. It's actually not all that complex, figuring out the right parts to order was the hardest part.

Here are the steps:
1. remove arm rests (search forum) pretty easy...remove the carpet on the back, undo the leather, and almost directly under the cusion, there's a pin to pull, and the arm rest comes off as once piece (this is my short example). There were pictures on how to do this on this forum.
2. now remove the 2 captain chairs, you'll need to replace the belt buckles, with smaller thinner ones, see my picture. The cover, is held on by a torque screw at the bottom, and just be gentle when taking it apart after that, it's clipped in.
3. after removal of both seats, remove the side trims/sills...just pull, no screws just clips.
4. now pull carpet up, and tie something to hold it open, and you'll now see the predrilled holes and screws sticking up for the brackets...install, then cut carpet, then bolt down seats and put it all back together.

All in all, about a 3 hour job, and not all that complicated, once again, getting the right parts was painful. Total cost, about $600. But I was able to find the center seat, and seatbelt for about $200 from ebay...now for the good parts
To remove this ad, register today or login if you already are registered!

Attached Thumbnails
Successful Center Seat Retrofit-1.jpg   Successful Center Seat Retrofit-2.jpg   Successful Center Seat Retrofit-3.jpg   Successful Center Seat Retrofit-4.jpg   Successful Center Seat Retrofit-5.jpg

Successful Center Seat Retrofit-6.jpg
davidbho is offline   Reply With Quote
Old 02-14-2011, 04:31 PM   #2
Member

Join Date: Nov 2006
Location: california
Posts: 223
Drives: ML55, C32 (sold), R500, Ducati 749 (sold and bought kids), P-c4s
more pictures

and the last ones...
Attached Thumbnails
Successful Center Seat Retrofit-7.jpg   Successful Center Seat Retrofit-8.jpg
davidbho is offline   Reply With Quote
Old 02-14-2011, 04:52 PM   #3
Member

Join Date: Nov 2006
Location: california
Posts: 223
Drives: ML55, C32 (sold), R500, Ducati 749 (sold and bought kids), P-c4s
and the part numbers

1. seat: from ebay, came with seat belt, so i can't help with those parts
2. seat buckles: need to replace the 2 in the car now (the existing 2 in the car are too big, and smaller ones are used to fit the 7th seat, and 3rd for center seat. was about $80 total...2 of these A2518602769 and 1 of these A2518602469
3. there are 2 seperate cross members, front is A2516100426(25 euro) rear is A2516100326 (40euro)

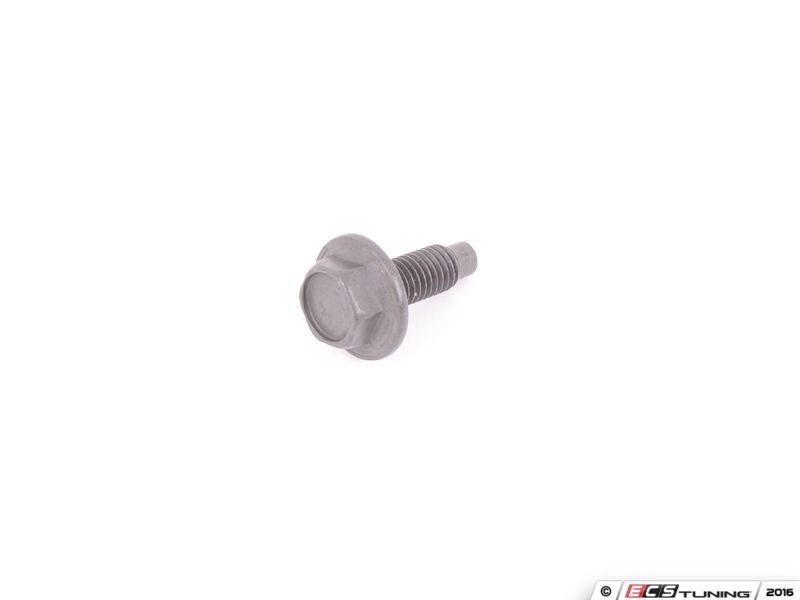

4. all misc bolts about $30...N 910112 008000 Need 4; A202 990 13 01 need 2; N000000003175 need 2

I'm happy it's done...but to be honest, I don't like it. The car is less roomy, the center seat doesn't slide to match the positions of the other 2, so they're constantly all the way back to match, which crowds the back seats, and the center also doesn't recline back as far as the other 2 captains chairs. So as soon as I don't need the center seat, I think I'll remove it since it really wasn't all that complicated.
davidbho is offline   Reply With Quote
Old 09-19-2011, 03:25 PM   #4
Newbie

Join Date: Jun 2011
Posts: 5
Drives: r320cdi
Add to the parts list:
N913023012002 - need 4 to mount the seat to the cross-members. The Mercedes description is Nut, Seat Mounting M12X1.5. Note that Mercedes dealers in northern California at this time have the right description but are handing out M10 (10mm) nuts. These will not fit. Either have them re-order them or get the right size from a store that specializes in nuts/bolts as an alternative.

I completed the same installation on an 07 R320cdi using these instructions. Works great and increases storage capacity by a lot. Besides, the arm rests were just taking up space.

Unplugging the harness under each captain's seat prior to removal of the seat may trigger a fault code for the SRS system. If so, it will show on your dash display on startup. Mine did, David Bho's did not. My friendly mechanic cleared the code from the system memory in a minute.

BTW, the arm rests are easy to take out - peel the back cover off the seat just around the arm rest. You don't need to peel the entire cover. Behind the cover and next to the arm rest you will see the foam seat cushion. Push aside the foam til you see the steel shaft for the arm rest and a plastic sleeve. Keep looking and you will see the ends of a metal retaining clip about 3" long with two prongs. This needs to be pulled/pushed off the arm rest as its what holds the arm in place. If you see the top of the clip, just pull it toward you with some pliers. If you see the prongs, push them back. In my case, I pushed one clip and pulled the other. Depends on orientation of the clip. Once that's done, just rotate the arm to about half-way between vertical and horizontal and gently pull the arm rest out. You are looking for the spot where the arm will pull free. Its there, but it might take some minutes of rotating the arm to find the spot. When you find it, the arm will slide out easily. Then put the seat cover back in place and press it into position along the edge.

Last edited by sherpa1; 09-21-2011 at 01:36 PM.
sherpa1 is offline   Reply With Quote
Old 09-23-2011, 05:44 PM   #5
Member

Join Date: Nov 2006
Location: california
Posts: 223
Drives: ML55, C32 (sold), R500, Ducati 749 (sold and bought kids), P-c4s
instructions on arm rest removal

this is what I referenced when i removed the armrest...

http://www.benzworld.org/forums/w251...-arm-rest.html
davidbho is offline   Reply With Quote
Old 10-27-2011, 10:29 PM   #6
Newbie

Join Date: Oct 2011
Posts: 3
Drives: R class
Successful Centre Seat Addition

Hi,
I am looking to put a centre seat into a 2007 R350.
Does anyone know where I can get a seat someone doesnt want?
The seats in my car are the black vinly or pleather( plastic looking leather).

I tried ebay but there doesnt seem to be any listed.

I am from Australia but I dont mind paying shipping if I can get a reasonabily priced used one. I presume a new one would be astronomically expensive.

Also where in Germany did you order the mounting plates and bolts and extra thin plug seat belts?

Thanks for any info.
Regards Hanns
doogie is offline   Reply With Quote
Old 10-27-2011, 10:41 PM   #7
Newbie

Join Date: Jun 2011
Posts: 5
Drives: r320cdi
Check with Carlos Duarte : Carlos Duarte <caduarte@LKQCORP.com>
He works for the largest parts recycler in the States and got me my seat. LKQ has yards all over the country. Also check car parts.com for listings of wrecking yards and recyclers. The seat belts came from LKQ with my seat, but should be readily available from dealers. The plates and bolts came from Mercedes here in the U.S. once a dealer requested that their part numbers be added to the U.S. inventory list. Dealer may have to order them from Germany, but the part numbers are in the U.S. system.

Last edited by sherpa1; 10-27-2011 at 10:45 PM.
sherpa1 is offline   Reply With Quote
Old 10-29-2011, 04:45 PM   #8
Newbie

Join Date: Oct 2011
Posts: 3
Drives: R class
Thanks for the info.

Just want to check that the middle seat can be put in a 2007 R350.

Are the mounting points in the car for the plates and fittings, before I check with Carlos? Thanks
Hanns
doogie is offline   Reply With Quote
Old 10-29-2011, 06:21 PM   #9
Newbie

Join Date: Jun 2011
Posts: 5
Drives: r320cdi
Mine is a 2007 R320cdi which at least here is the same car, but with a diesel engine. David's is a 2006 R500 - same car, different engine. At least in the U.S. and Canada, there was only one body style used for the R class. In both cases, all the holes and fittings were in the frame and floor pan. We both pulled out the existing seats, cut away the carpet and then you can bolt in the mounting brackets and the seat belt brackets. Drop on the seat and bolt it down. David's directions are spot on. It may even be possible to do this without pulling the other seats, but I wouldn't do it that way.
sherpa1 is offline   Reply With Quote
Old 10-30-2011, 02:06 AM   #10
Newbie

Join Date: Oct 2011
Posts: 3
Drives: R class
Thanks for the info, the body style and shape is the same. The wife has the 2009 model R 280CDi and it has the same interior and body but the 7 seat version, so wish me luck. Ill try to get everthing off Carlos. Thanks Hanns
doogie is offline   Reply With Quote
Old 06-28-2014, 03:08 AM   #11
Newbie

Join Date: Nov 2012
Location: Australia
Posts: 4
Drives: 2007 R-320L
Third seat in

Finally got around to installing the seventh seat in my originally six-seat R320 CDI LWB this afternoon.

Got the seat from a wrecker in Sydney with all mounting hardware, but quickly learned that the two black mounting brackets are different for short and long-wheel base cars, and my new seat had come from a short wheel base. Ordered the new brackets, and, as DavidBho says, its a three-hour job.

However, I didn't remove the seats entirely - you can unbolt them and tip them sideways to get the carpet up - saves mucking around with the electrical connections.

I'm pretty happy with it. It was a bit daunting cutting into the carpet, but it looks fine, and it makes the car far more flexible for a family of five plus greyhound. And my wife is very pleased, so life is good.

One more thing - If you are replacing a centre console with a seventh seat, keep the carpet that you need to cut out to accommodate the new seat. You can use the offcuts to fill the space left quite successfully, using contact glue and bit of cutting and shutting. Black carpet, like mine, may be more forgiving than lighter colours. You'd never know it was patched.
