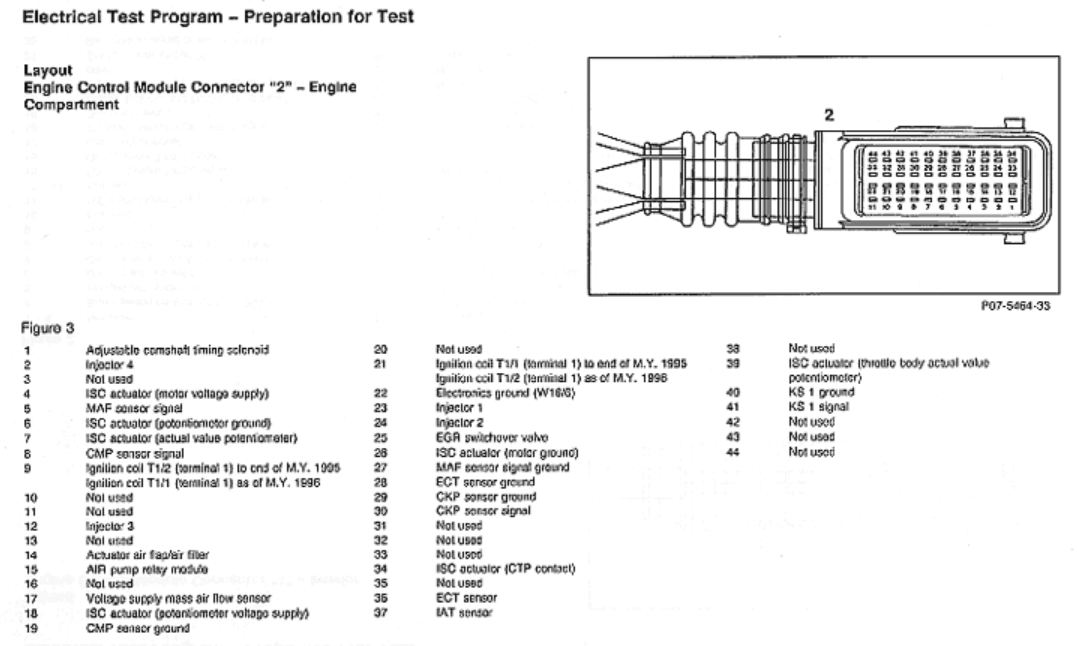

W124 E220 1996 ECU Wiring question
Hey,

I bought a W124 E220 1996, late model with an M111.960 engine. It's Bosch HFM with wasted spark ignition.
I am going to rebuild the wiring harness but wanted to as if anybody can tell me if I'm using the right information please?
It is a UK car, wanted to know if there is a different version of the engine ECU drawing that I should be using.

My ECU part number is A0165455532, Bosch: 0261203230

Also, I think the HT lead connection should be 1&4 on the forward coil, 2&3 on the back?

Thanks!
