SL/R230: ABC high pressure line / Pulsation Dampner
MBworld Guru
Joined: Dec 2009
Posts: 10,782
Likes: 1,011
NO LONGER ACTIVE
Sorry - my type - yes Y36/1. Now, it's possible this has changed with the ABC revisions that have been made over the production of the R230, but on my MY2011, the pressure hose from the pump goes to the front valve block first (I just got through changing it!) It may just be a pass-through on its way to the pressure supply valve, but it tells me that the diagram doesn't show everything.
Thread Starter
Super Member
Joined: Jan 2007
Posts: 744
Likes: 73
From: PNW Wa State
R230, C5 Corvette Convertible, Audi Allroad, Lexus RX350, AE86 Hachi Roku
After doing a rodeo nothing else popped up on a quick check so I new I might find something in a different section. While doing a failed level calibration I followed the ABC section back to history and I find 16k hits for C1000. Make matters worse I find 3 different names related to C1000.
Why it won't show on a quick check I have no answer.
After I match serial #'s for the corresponding modules turns out they're all the same; it's the ABC control unit.
Until a replacement arrives I'm going to remove all the underbody panels and double check all my hoses and valve block connections. If the valve block seals were tired I want to be sure the hoses are still within service tolerances and not cracking or swelling.
Why it won't show on a quick check I have no answer.
After I match serial #'s for the corresponding modules turns out they're all the same; it's the ABC control unit.
Until a replacement arrives I'm going to remove all the underbody panels and double check all my hoses and valve block connections. If the valve block seals were tired I want to be sure the hoses are still within service tolerances and not cracking or swelling.
Banned
Joined: Jan 2006
Posts: 1,982
Likes: 393
From: Atlanta, unfortunately
'09 S600, (2) R129 300SLs, '03 SL500, '03 SL55
If the ABC controller actually is the cause of your problem, then with power removed from the module the vehicle should maintain level.
Last edited by bobterry99; Aug 10, 2016 at 03:22 AM.
MBworld Guru
Joined: Dec 2009
Posts: 10,782
Likes: 1,011
NO LONGER ACTIVE
Yeah, I was looking at some diagrams in WIS and the front valve block definitely looks different.
Junior Member
Joined: Aug 2008
Posts: 65
Likes: 1
From: Houston, TX
2003 SL500, 1998 E320 Wagon
This might sound dumb, but it's worth a try. The front of my dropped consistently after I shut the car off. And typically within 1 hour after turning the car off the front would be completely lowered with the red light Car too Low error when I would start the car.
Couple of weeks ago, I had the rear supply hose rupture on my way home. This is the main supply to the rear valve body. When I replaced that hose, and refilled the system, the car worked as before and the front end did not drop or lower at all when I shut the car off. The suspension stood up for two days with minimal droop.
Initially, my intention was to rebuild the valve block assemblies as it is well documented on this forum, but I was waiting for the cooler weather before I tackled that chore.
So, in summary, it might be worthwhile to flush the ABC system before tackling something that is more complicated.
Couple of weeks ago, I had the rear supply hose rupture on my way home. This is the main supply to the rear valve body. When I replaced that hose, and refilled the system, the car worked as before and the front end did not drop or lower at all when I shut the car off. The suspension stood up for two days with minimal droop.
Initially, my intention was to rebuild the valve block assemblies as it is well documented on this forum, but I was waiting for the cooler weather before I tackled that chore.
So, in summary, it might be worthwhile to flush the ABC system before tackling something that is more complicated.
Thread Starter
Super Member
Joined: Jan 2007
Posts: 744
Likes: 73
From: PNW Wa State
R230, C5 Corvette Convertible, Audi Allroad, Lexus RX350, AE86 Hachi Roku
This might sound dumb, but it's worth a try. The front of my dropped consistently after I shut the car off. And typically within 1 hour after turning the car off the front would be completely lowered with the red light Car too Low error when I would start the car.
Couple of weeks ago, I had the rear supply hose rupture on my way home. This is the main supply to the rear valve body. When I replaced that hose, and refilled the system, the car worked as before and the front end did not drop or lower at all when I shut the car off. The suspension stood up for two days with minimal droop.
Initially, my intention was to rebuild the valve block assemblies as it is well documented on this forum, but I was waiting for the cooler weather before I tackled that chore.
So, in summary, it might be worthwhile to flush the ABC system before tackling something that is more complicated.
Couple of weeks ago, I had the rear supply hose rupture on my way home. This is the main supply to the rear valve body. When I replaced that hose, and refilled the system, the car worked as before and the front end did not drop or lower at all when I shut the car off. The suspension stood up for two days with minimal droop.
Initially, my intention was to rebuild the valve block assemblies as it is well documented on this forum, but I was waiting for the cooler weather before I tackled that chore.
So, in summary, it might be worthwhile to flush the ABC system before tackling something that is more complicated.
I just finished doing another redeo and then tried a level calibration which failed. So now the next move is pulling off all my belly pans and panels covering the hoses and valve blocks to be sure something like you mentioned has/hasn't gone bad
MBWorld Fanatic!
Joined: Feb 2009
Posts: 6,897
Likes: 85
From: Central WI (BFE)
SL55, ML500 & Acura TL
Hey guys, I am finally getting around to replacing the front and rear accumulators or "pressure reservoirs" as MB calls them. While replacing the rear accumulator it makes sense to me to replace the return accumulator. Does anyone happen to have the part number for the return accumulator? Clearly the front and rear accumulators are the same part (A2203270115), but the return looks different to me in the WIS.
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
MBWorld Fanatic!
Joined: May 2015
Posts: 4,037
Likes: 1,012
From: Miami, FL
2003 CL 600
There are two bigger ones and two smaller ones IIRC, I would suggest, if you're doing some of them, do all of them.
2203270415 - return
2203270215 - pump/primary
From the ABC Drive carefully blog. He has everything listed there.
The big one is 2203270115 and is the same for front and rear.
2203270415 - return
2203270215 - pump/primary
From the ABC Drive carefully blog. He has everything listed there.
The big one is 2203270115 and is the same for front and rear.
Last edited by ItalianJoe1; May 2, 2017 at 06:59 PM.
MBWorld Fanatic!
Joined: Feb 2009
Posts: 6,897
Likes: 85
From: Central WI (BFE)
SL55, ML500 & Acura TL
There are two bigger ones and two smaller ones IIRC, I would suggest, if you're doing some of them, do all of them.
2203270415 - return
2203270215 - pump/primary
From the ABC Drive carefully blog. He has everything listed there.
The big one is 2203270115 and is the same for front and rear.
2203270415 - return
2203270215 - pump/primary
From the ABC Drive carefully blog. He has everything listed there.
The big one is 2203270115 and is the same for front and rear.
MBWorld Fanatic!
Joined: May 2015
Posts: 4,037
Likes: 1,012
From: Miami, FL
2003 CL 600
My car is much better after doing them. I had a line fail, drove the car back to my job as it was midnight and I wasn't far, i think that burned up the front seal on the pump.
I ended up dropping the subframe, doing the 3 lines under the engine, all 4 accumulators, and a pump. Much better now with everything leak-free and the suspension working as it should, I was getting the flash warning over big bumps prior to the accumulator replacement.
I ended up dropping the subframe, doing the 3 lines under the engine, all 4 accumulators, and a pump. Much better now with everything leak-free and the suspension working as it should, I was getting the flash warning over big bumps prior to the accumulator replacement.
Senior Member
Joined: Jul 2008
Posts: 436
Likes: 64
From: Dartmouth, MA
1967 250SE, 2022 GLC300 2023 EQB300, 2018 AMG GT
When the engine is shut-off the pressure in the system rapidly decays. The pump quits making pressure, of course, and the front and rear accumulators as well as the pulsation dampener lose pressure as they empty. I believe Star Diagnosis has a test which monitors that rate of decay to discern the health of the accumulators.
I will try to post the graph later.
Thank you,
Radu
Banned
Joined: Jan 2006
Posts: 1,982
Likes: 393
From: Atlanta, unfortunately
'09 S600, (2) R129 300SLs, '03 SL500, '03 SL55
Troubleshooting by means of complaints or symptoms > Handling characteristics > Vehicle damping too soft or spongy handling characteristics > Pressure change during pressure release.
Follow the instructions to determine which accumulator is faulty.
Last edited by bobterry99; Apr 15, 2018 at 05:41 PM.
Senior Member
Joined: Jul 2008
Posts: 436
Likes: 64
From: Dartmouth, MA
1967 250SE, 2022 GLC300 2023 EQB300, 2018 AMG GT
This is what I got.
Earlier today after a longer drive it was a continuous decaying line without the sudden drop 2/3 into the graph.
Last edited by gafitanu; Apr 15, 2018 at 07:56 PM.
Senior Member
Joined: Aug 2010
Posts: 359
Likes: 291
From: Rockport, TX
2007 S65 AMG-Sold, 2007 SL55 P030 - 2016 GL450 - - 2017 AMG GTS - Sold - 2015 AMG S65
Trying to find a part number for this hose...
Rodney I have read this old thread about the high pressure hose for 2007-2008 and ^ that runs from the ABC (Tandem pump) to the valve block in the left bumper cover in front of the left front wheel.
I had one repaired in 2019 (see the attached picture) and also found this number on it A 230 320 88 53 however so far I have not been able to located it on EPC.
At this time I like to get a replacement on order however my local dealer has not been able to identify it as well.
Did you by any chance know the part number?
Any feedback would be appreciated.
Best H

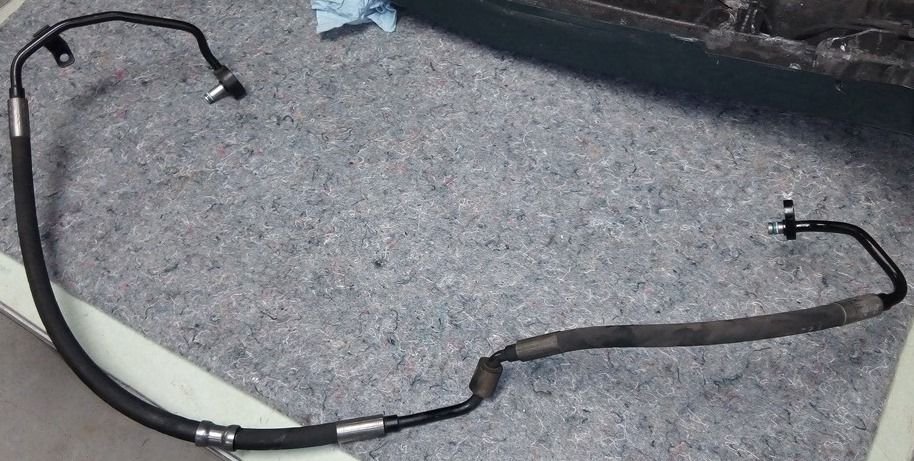

Overall View

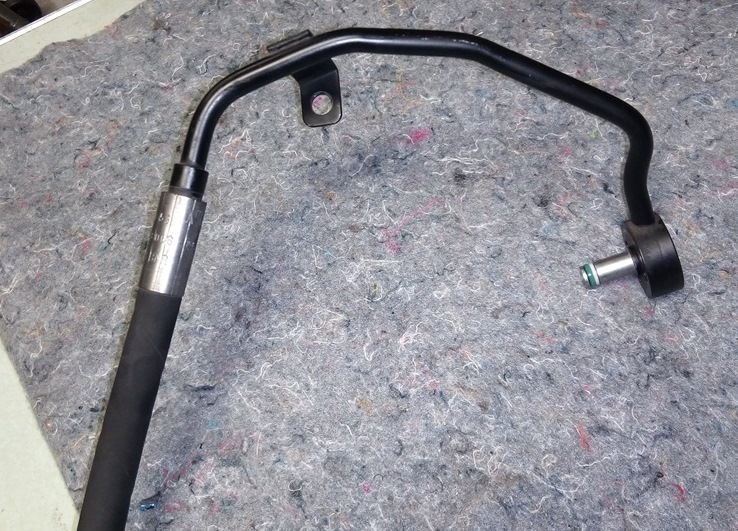

Upper section were it connects to the pump
Lower section were it connects to the valve unit

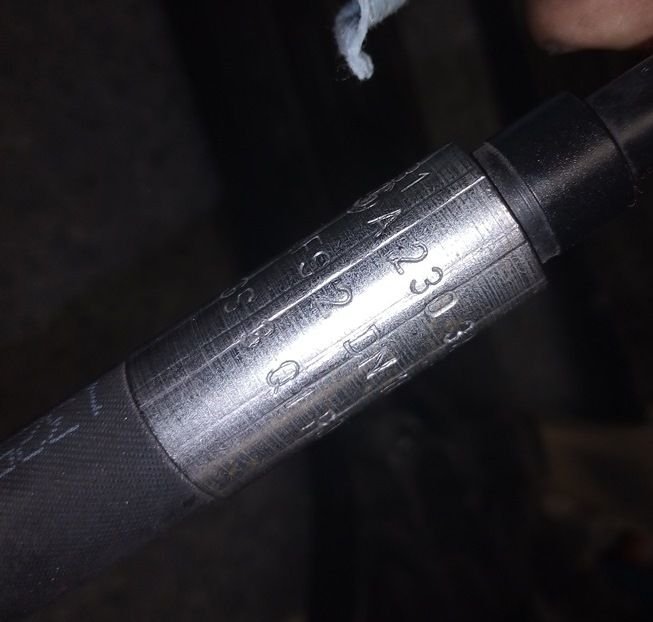

Location were I found the number 230 320 88 53
Last edited by Hendrik Koster; Oct 29, 2020 at 03:21 PM.
MBWorld Fanatic!
Joined: Aug 2020
Posts: 1,329
Likes: 365
From: Gretna, NE
'03 SL55 Black, '03 SL500's Aegean, Mars Red, Tazanite, Alabaster, '11 S550 Flint Gray
It looks correct to me. Item 380 in EPC, you might have to scroll over a couple of screens to see it on the diagram, but it is in there (unique to 472 submodel).
Mike
Mike
Senior Member
Joined: Aug 2010
Posts: 359
Likes: 291
From: Rockport, TX
2007 S65 AMG-Sold, 2007 SL55 P030 - 2016 GL450 - - 2017 AMG GTS - Sold - 2015 AMG S65
Correct part number
The assist is appreciated.
Happy motoring to all.
H
Senior Member
Joined: Jul 2013
Posts: 448
Likes: 48
From: Europe, but from Norway
89 SL500 Silver ,97 SL500 Carlsson 04 Mercedes SL55 AMG , 07 Mercedes SL55 AMG convertedBlack series
Thread Starter
Super Member
Joined: Jan 2007
Posts: 744
Likes: 73
From: PNW Wa State
R230, C5 Corvette Convertible, Audi Allroad, Lexus RX350, AE86 Hachi Roku
Holy S#*t !
I Have car covers older than this thread but 4 yrs is old. Oh well, as long as its relevant. Party on Garth
I Have car covers older than this thread but 4 yrs is old. Oh well, as long as its relevant. Party on Garth
