SL/R231: Headlight assembly
Junior Member
Joined: Mar 2022
Posts: 45
Likes: 26
From: Branford CT
13SL550,11CL550,61 190SL, 67 300SE, 54 220
Head light
Newbie
Joined: May 2021
Posts: 6
Likes: 0
2013 Mercedes SL550
Newbie
Joined: Aug 2025
Posts: 14
Likes: 4
2017 SL 550
Left headlight wiring
I am in need if the correct wiring diagram for the Headlight control module plug. The headlight was knocked out in an accident
and it pulled the wires out of the rear of the plug. The repair added three inches of white wire to the harness. But he messed up
putting the white wires into the correct pins of the plug. Headlight and turn signal will not work. Just blows the fuse.
What I need is what is the wire color that goes in to each of the plug pins.
and it pulled the wires out of the rear of the plug. The repair added three inches of white wire to the harness. But he messed up
putting the white wires into the correct pins of the plug. Headlight and turn signal will not work. Just blows the fuse.
What I need is what is the wire color that goes in to each of the plug pins.
Thread Starter
Member
Joined: Aug 2022
Posts: 111
Likes: 44
From: Bainsville, Ontario, Canada
SL 550 (2014) Kia Sorento (2016)
Up to 2017
Doc PE 82.10-P-2102-97RKA
BKWH to pin 1
OGWH to 2
GY to 3
BN to 5 and 10
YEBK to 6
BUWH to 9
RD to 11
If you need a year later then 2017 send me your VIN.
Doc PE 82.10-P-2102-97RKA
BKWH to pin 1
OGWH to 2
GY to 3
BN to 5 and 10
YEBK to 6
BUWH to 9
RD to 11
If you need a year later then 2017 send me your VIN.
Last edited by Montreal300; Aug 31, 2025 at 09:38 AM.
Trending Topics
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
Newbie
Joined: Aug 2025
Posts: 14
Likes: 4
2017 SL 550

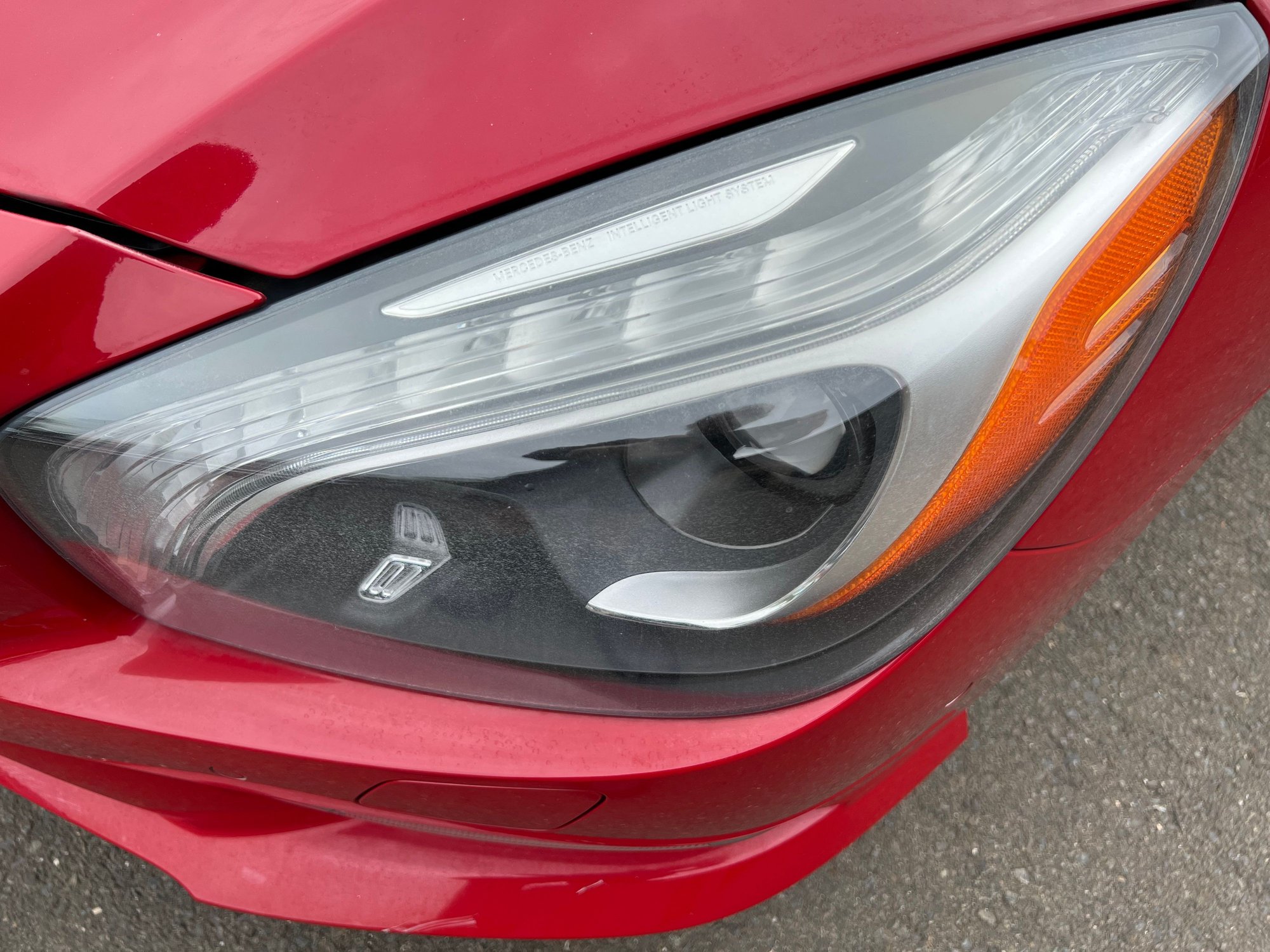

Driver's side headlight SL 550
I just obtained a Driver's side headlight from this guy on Ebay.. He shipped it very fast, I got it in three days. It looks like a fresh new light. Not a
blemish on it. I paid upwards of $600. but it was well worth it.
Ebay headlight
https://www.ebay.com/str/5ohboss
blemish on it. I paid upwards of $600. but it was well worth it.
Ebay headlight
https://www.ebay.com/str/5ohboss
