I just bought a 1998 C230 and it's missing the paper for the rear fuse box designations. The fuse box in the front has all the information for the uses of the rear fuses but no information on what fuse numbers i need to use (10, 15, 20 etc.) I called the dealership but they had nothing on record.

Would anyone happen to have the same car as me and be able to look at theirs or does anyone know where I could find this information?

Thanks in advance for all your help.



I have a 99C280 and I'll get the pix of the cover and box for you. Send me your E Mail address and I get them to you on Sunday 12/2



〖^o^〗^o^ 〖^o^〗
naruto
comic
Angel Sanctuary



my friend can u send me that pics as well i have a c180 i am missing the diagram as well, thanks for ur help.



Hello, I have not been able to locate fuse designations for my 2007 C 230. All I have read are for W 202 and 1998 C230. Would these be the same for my model? If they are, can I please request for someone to provide me with the diagrams/pics. Thank you in anticipation.
Sure1



Hey Guys,
Guess what? I found what I wanted. (Yes, yes, your silence was deafening.) I heard what you were saying, so I continued to search and searched the forums and found what I wanted through a title, "2004 c230k sport fuse chart". Thanks to BabyBenz6spd for the scanned images. I have since located the fuse box at the driver's compartment and also the original fuse chart which was neatly folded and inserted in a slot just above the fuses.

The saying 'seek and ye shall find' sure holds true.
Thanks for your patience towards a

Sure1

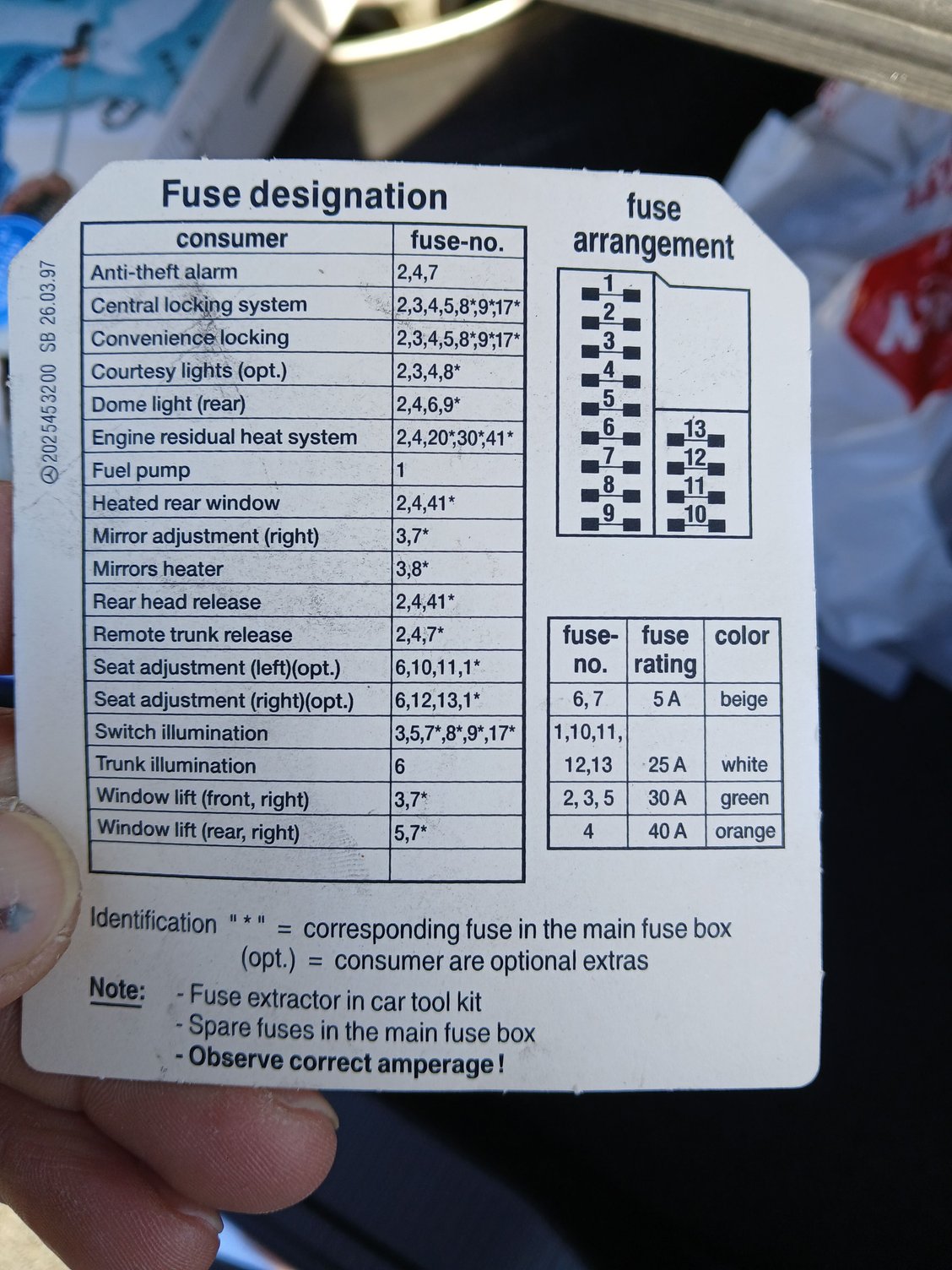

might be to late seeing how this post was from '07 but I have the same car and here's picture of the paper that's supposed to be inside the fuse box from trunk.
