RETROFIT REAR SUNSHADE W203
Thread Starter
Newbie
Joined: Mar 2017
Posts: 3
Likes: 0
W203
RETROFIT REAR SUNSHADE W203
Hello im from indonesia......i got an idea to install Rear Electric Sunshade on my C240 02. I was have an item as describe
1. The main unit Rear Curtain
2. Front Center console.
The problem is i cant find the wiring to connect from the motor to center console or the rear sam....some friend told me in fact the 203 in Indonesia came with original wiring so theres just plug and play.
But in my car never came with the original wiring so i cannot connect the socket from rear sunshade to center console.
So help me ... anyone here now the wiring loom parts number that connect to rear sunshade to center console or to the rear SAM
Thsnk you...sorry if my language are bad.
1. The main unit Rear Curtain
2. Front Center console.
The problem is i cant find the wiring to connect from the motor to center console or the rear sam....some friend told me in fact the 203 in Indonesia came with original wiring so theres just plug and play.
But in my car never came with the original wiring so i cannot connect the socket from rear sunshade to center console.
So help me ... anyone here now the wiring loom parts number that connect to rear sunshade to center console or to the rear SAM
Thsnk you...sorry if my language are bad.
MBWorld Fanatic!
Joined: Feb 2006
Posts: 1,489
Likes: 110
From: WNY
2005 w203 C230
You will need to upgrade your upper control panel with one that can send the CAN signal to the rear SAM to activate the retrofitted sunshade.
There is a CLEAR step by step in the Retro-fit section of WIS.
(I can try to post at a later date...)
Essentially you install the switchrow, the rear sunshade and parcel shelf (I would get a complete working unit out of a wreck/eBay) ENSURE the tabs and clips are intact - there are some "fragile" and glued in clips/etc. Then, you plug the motor into the rear SAM.
Again...I can try and support later - but I KNOW searching the forum you can fins stuff here - even on polarity reversing/etc...
There is a CLEAR step by step in the Retro-fit section of WIS.
(I can try to post at a later date...)
Essentially you install the switchrow, the rear sunshade and parcel shelf (I would get a complete working unit out of a wreck/eBay) ENSURE the tabs and clips are intact - there are some "fragile" and glued in clips/etc. Then, you plug the motor into the rear SAM.
Again...I can try and support later - but I KNOW searching the forum you can fins stuff here - even on polarity reversing/etc...
Thread Starter
Newbie
Joined: Mar 2017
Posts: 3
Likes: 0
W203
You will need to upgrade your upper control panel with one that can send the CAN signal to the rear SAM to activate the retrofitted sunshade.
There is a CLEAR step by step in the Retro-fit section of WIS.
(I can try to post at a later date...)
Essentially you install the switchrow, the rear sunshade and parcel shelf (I would get a complete working unit out of a wreck/eBay) ENSURE the tabs and clips are intact - there are some "fragile" and glued in clips/etc. Then, you plug the motor into the rear SAM.
Again...I can try and support later - but I KNOW searching the forum you can fins stuff here - even on polarity reversing/etc...
There is a CLEAR step by step in the Retro-fit section of WIS.
(I can try to post at a later date...)
Essentially you install the switchrow, the rear sunshade and parcel shelf (I would get a complete working unit out of a wreck/eBay) ENSURE the tabs and clips are intact - there are some "fragile" and glued in clips/etc. Then, you plug the motor into the rear SAM.
Again...I can try and support later - but I KNOW searching the forum you can fins stuff here - even on polarity reversing/etc...
hello....i was have the the center console....the whole unit of roller blind.

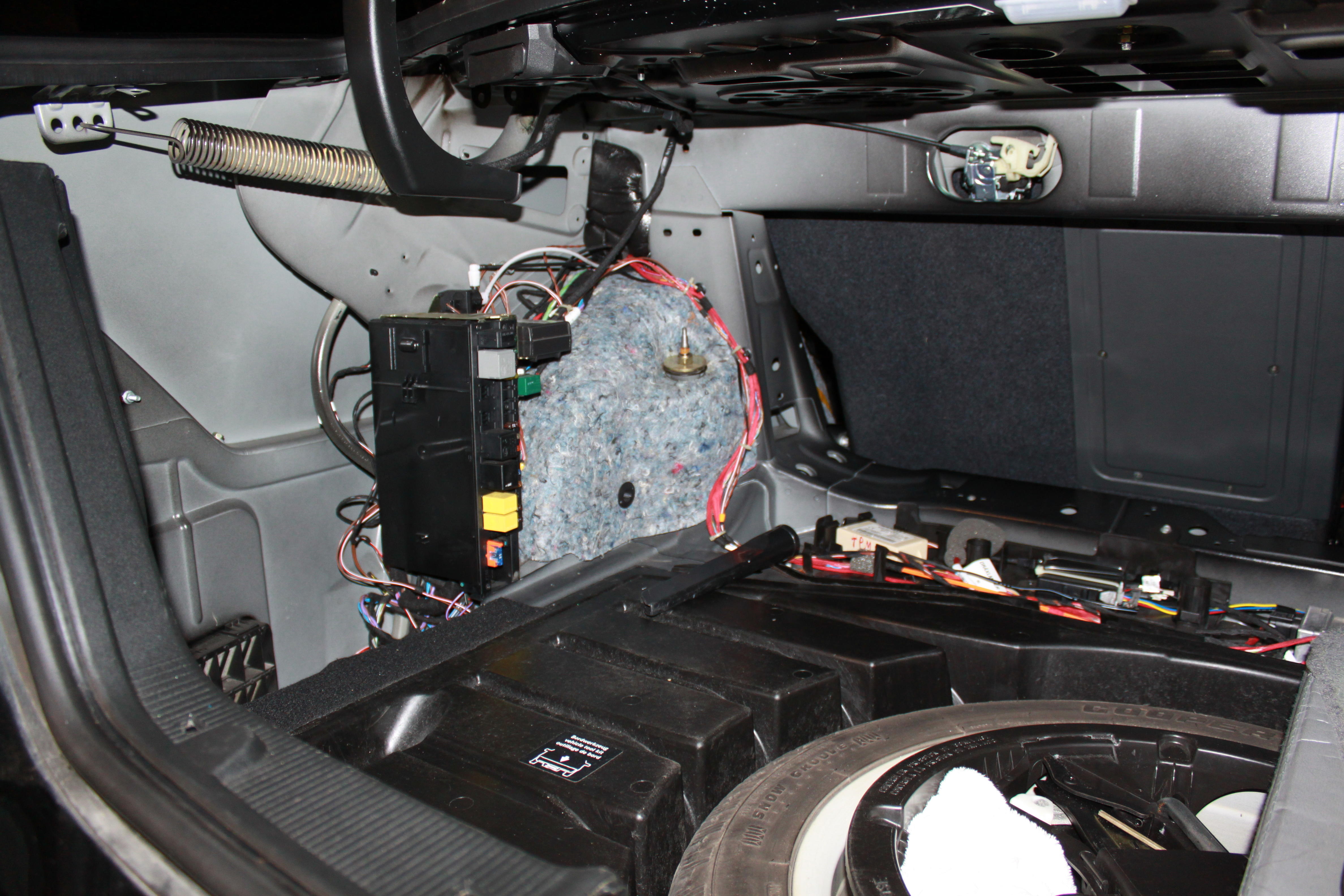

but i cannot find the wiring from roller blind to rear sam or to else......
wheres exactly i must connect the wiring from roller blind to?
