are there differences in the fuse diagram depending on the year?
Thread Starter
MBWorld Fanatic!
Joined: May 2008
Posts: 1,601
Likes: 14
From: dfw
'10 C63
are there differences in the fuse diagram depending on the year?

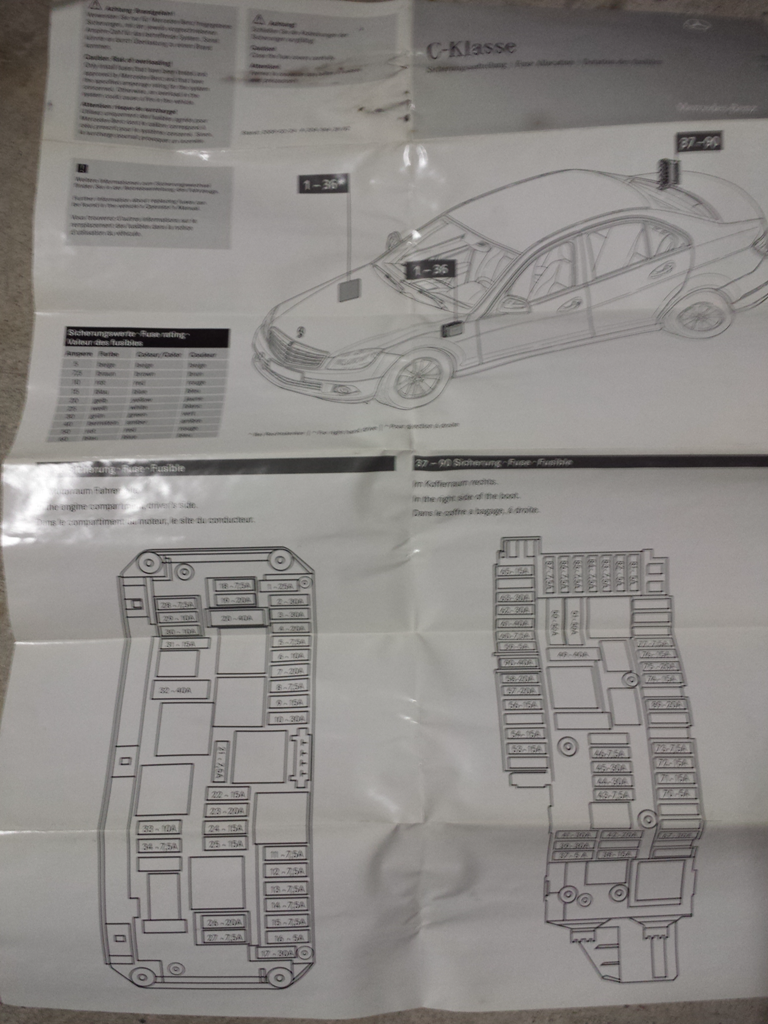

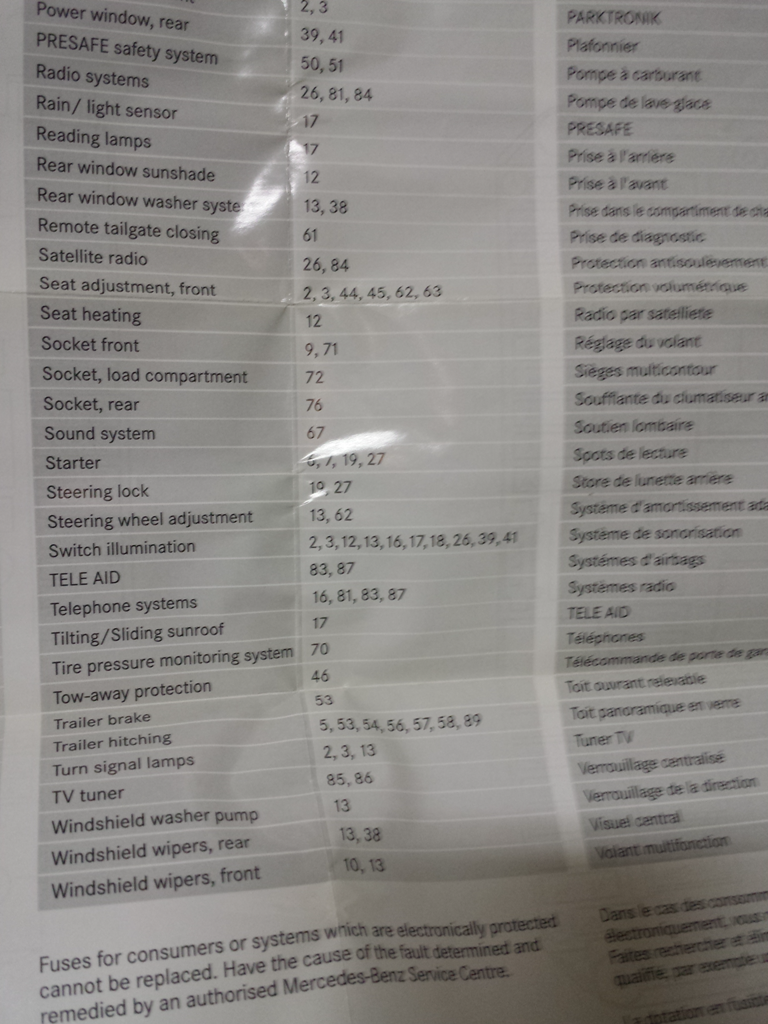

i've seen images that show the fuse box diagram with a list and i noticed a difference with my actual list that i found in the trunk. when i found the list on the forum and also while doing a google image search for c63 fuse diagram, i figured it would be the same but it's not. see attached files and you can see there are some differences.
another strange thing i noticed was a 10 amp fuse in the trunk fuse box numbered 91 (marked in red on diagram) is not on either list, not shown in the diagram, but it's there in the fuse box and it's always on when checked with a multimeter...
sorry for the blurry images
another strange thing i noticed was a 10 amp fuse in the trunk fuse box numbered 91 (marked in red on diagram) is not on either list, not shown in the diagram, but it's there in the fuse box and it's always on when checked with a multimeter...
sorry for the blurry images
MBWorld Fanatic!
Joined: Jan 2014
Posts: 3,969
Likes: 1,317
From: Republic of Texas
'99 and '05 E55 AMG
Sure there can be differences.
e.g. The AMG W211 has a very different fuse diagram from the non-AMG W211. And the AMG W211 has at least five different harnesses depending upon the build date.
Thus the importance of using the VIN to look up schematics.
e.g. The AMG W211 has a very different fuse diagram from the non-AMG W211. And the AMG W211 has at least five different harnesses depending upon the build date.
Thus the importance of using the VIN to look up schematics.
Super Member
Joined: Dec 2009
Posts: 748
Likes: 93
From: Dhahran, KSA
2020 E 300 Coupe and 2019 GLS 400
Yes, It is possible to find different diagrams.
For example, the W164 ML has two or three fuse charts according to the production year, market and equipment. I have one diagram that shows the vehicle range the charts is applicable to, 15/7/2007 to 2009 or from chassis A3xxxxx to A4xxxxx.
For example, the W164 ML has two or three fuse charts according to the production year, market and equipment. I have one diagram that shows the vehicle range the charts is applicable to, 15/7/2007 to 2009 or from chassis A3xxxxx to A4xxxxx.
Thread Starter
MBWorld Fanatic!
Joined: May 2008
Posts: 1,601
Likes: 14
From: dfw
'10 C63
differences from amg to non-amg i can understand... but these are differences from amg to amg i believe with just the year being different
Thread Starter
MBWorld Fanatic!
Joined: May 2008
Posts: 1,601
Likes: 14
From: dfw
'10 C63
Yes, It is possible to find different diagrams.
For example, the W164 ML has two or three fuse charts according to the production year, market and equipment. I have one diagram that shows the vehicle range the charts is applicable to, 15/7/2007 to 2009 or from chassis A3xxxxx to A4xxxxx.
For example, the W164 ML has two or three fuse charts according to the production year, market and equipment. I have one diagram that shows the vehicle range the charts is applicable to, 15/7/2007 to 2009 or from chassis A3xxxxx to A4xxxxx.
MBWorld Fanatic!
Joined: Aug 2011
Posts: 2,818
Likes: 395
2012 E550 Cabrio
I think I am the guy that gave you that diagram lol, which is the only one I have found, and worked for my purposes so far. I dont touch much in the way of German electronics. I could definitely see their being differences between PFL and FL, as they have different bells and whistles.
If this is about that illuminated star....just pay the dealership for the install lol. I think thats been the consensus in the other forums. Just not worth the headaches.
If this is about that illuminated star....just pay the dealership for the install lol. I think thats been the consensus in the other forums. Just not worth the headaches.
Thread Starter
MBWorld Fanatic!
Joined: May 2008
Posts: 1,601
Likes: 14
From: dfw
'10 C63
I think I am the guy that gave you that diagram lol, which is the only one I have found, and worked for my purposes so far. I dont touch much in the way of German electronics. I could definitely see their being differences between PFL and FL, as they have different bells and whistles.
If this is about that illuminated star....just pay the dealership for the install lol. I think thats been the consensus in the other forums. Just not worth the headaches.
If this is about that illuminated star....just pay the dealership for the install lol. I think thats been the consensus in the other forums. Just not worth the headaches.
