Instrument cluster
My instrument cluster has had a complete failure.
Can I replace the one I have with any other one...or, must the part numbers match?
The problem I have is the label with the part number on has been removed.

Where is the car's mileage stored?

Reply
0
Old Jul 6, 2020 | 08:52 AM
Share
  #2
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
Originally Posted by renault12ts
My instrument cluster has had a complete failure.
Can I replace the one I have with any other one...or, must the part numbers match?
The problem I have is the label with the part number on has been removed.

Where is the car's mileage stored?
normally yes give me your vin Ill give you the list of compatible clusters
in miles yes ?
Then you must adapt it to your car with adaption takeover in Xentry
The mileage is in the EIS, the shifter and engine module. the cluster just sends and read back not locked on mileage
If you don't adapt it you'll get ------- as mileage in cluster
Reply
0
Old Jul 6, 2020 | 10:29 AM
Share
  #3
renault12ts's Avatar
renault12ts
Thread Starter
Super Member

Joined: Oct 2010
Posts: 724
Likes: 41
From: UK
W215 CL500 2005
Originally Posted by pmercury
normally yes give me your vin Ill give you the list of compatible clusters
in miles yes ?
Then you must adapt it to your car with adaption takeover in Xentry
The mileage is in the EIS, the shifter and engine module. the cluster just sends and read back not locked on mileage
If you don't adapt it you'll get ------- as mileage in cluster
Hi PM...my VIN is: WDB2153752A046138

The cluster has one speed scale going to 260.
I can, using the menu, switch between mph and kph.

Thanks.
Reply
0
Old Jul 6, 2020 | 12:18 PM
Share
  #4
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
Originally Posted by renault12ts
Hi PM...my VIN is: WDB2153752A046138

The cluster has one speed scale going to 260.
I can, using the menu, switch between mph and kph.

Thanks.
ok

now tell me if you want a USA/UK cluster to replace your euro cluster
or you want to keep your Euro cluster with the KM scale to 260

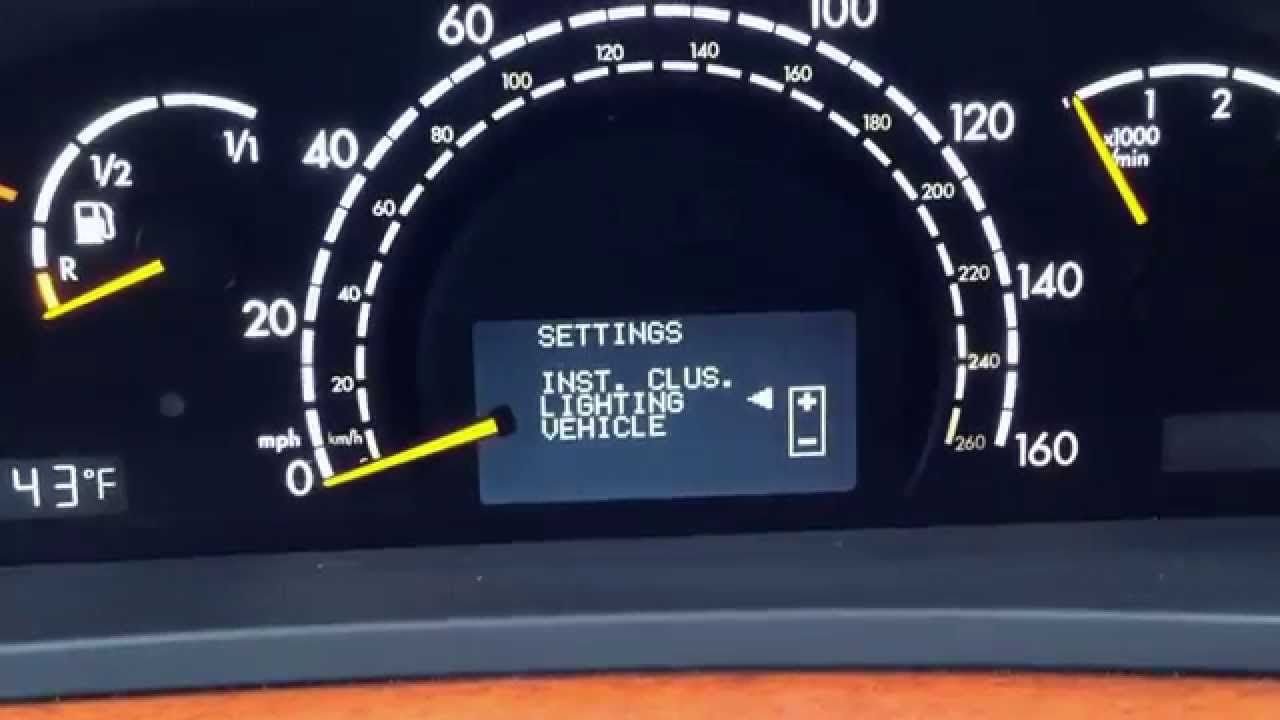

USA/UK miles clusters



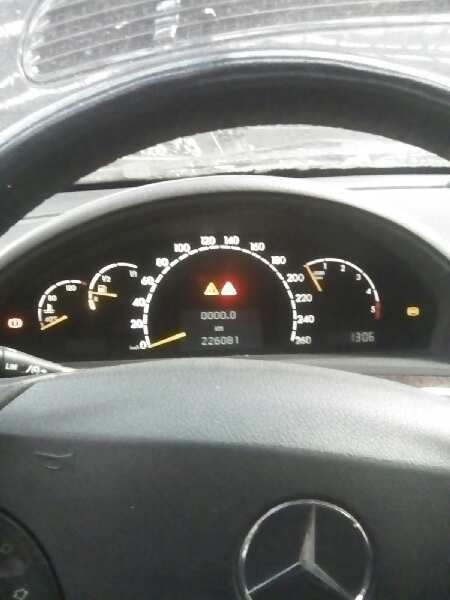

EURO KM cluster





or you might want a AMG cluster that scales to 360 like mine





Reply
0
Old Jul 7, 2020 | 06:33 AM
Share
  #5
renault12ts's Avatar
renault12ts
Thread Starter
Super Member

Joined: Oct 2010
Posts: 724
Likes: 41
From: UK
W215 CL500 2005
I'd like to keep the Euro cluster, but USA/UK one will do the same job.
Reply
0
Old Jul 7, 2020 | 06:49 AM
Share
  #6
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
ok
hold
Reply
0
Old Jul 7, 2020 | 06:53 AM
Share
  #7
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
A2205407747

cheap one here
https://www.ebay.com/itm/2001-MERCED...MAAOSwS4he4j9i
Reply
0

Trending Topics

Old Jul 7, 2020 | 06:59 AM
Share
  #8
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL

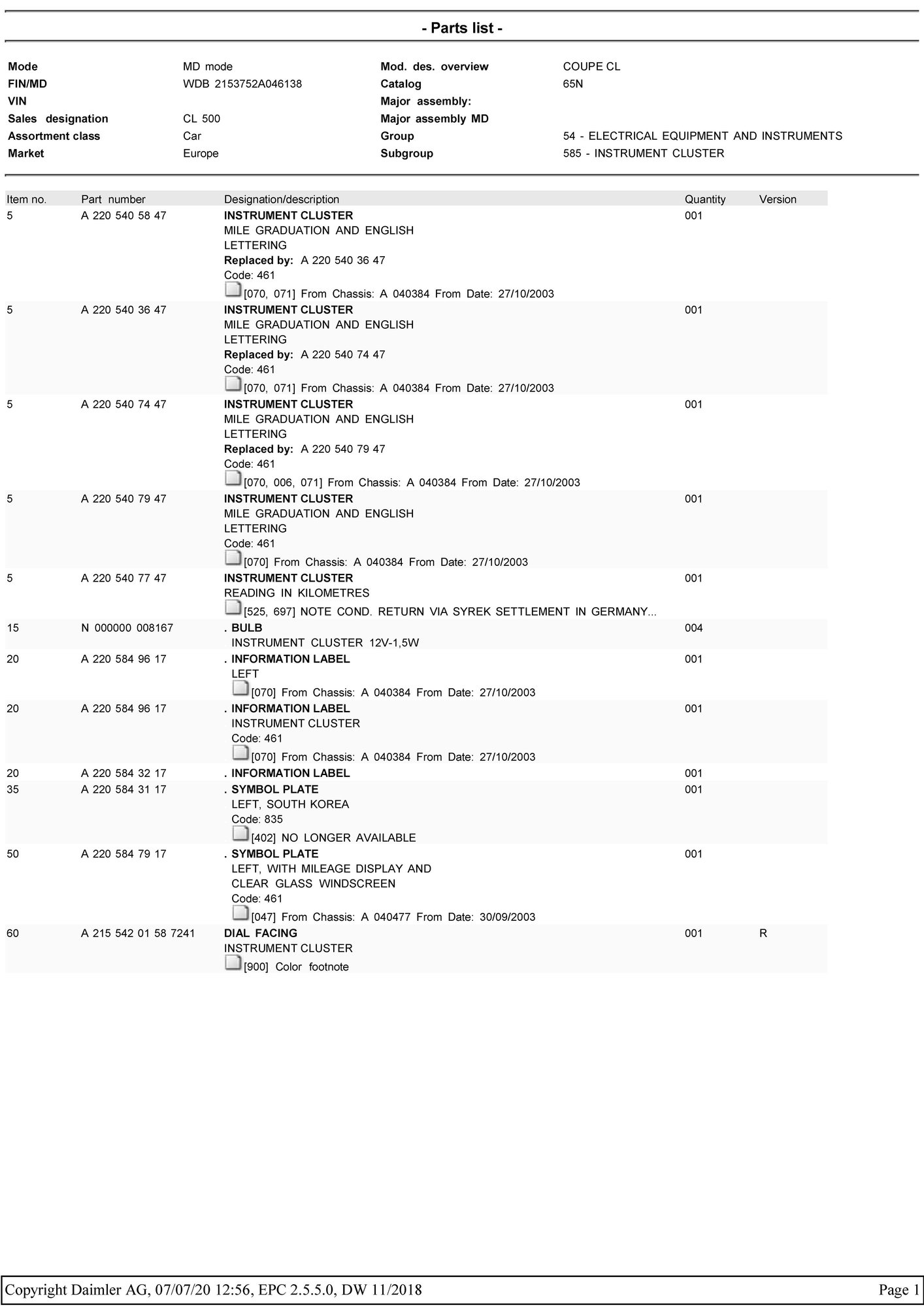

the here all compatible versions with different variants make sure you check if KMH or Miles





Reply
0
MB World Stories

The Best of Mercedes & AMG

story-0

6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)

 Verdad Gallardo
story-1

Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun

 Verdad Gallardo
story-2

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

 Verdad Gallardo
story-3

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

 Verdad Gallardo
story-4

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

 Verdad Gallardo
story-5

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

 Verdad Gallardo
story-6

Mercedes EQS Gets A Major Update: Everything You Need to Know

 Verdad Gallardo
story-7

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

 Verdad Gallardo
story-8

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

 Verdad Gallardo
story-9

10 Most Reliable Mercedes-Benz Models You Can Buy Used

 Verdad Gallardo
Old Jul 7, 2020 | 12:25 PM
Share
  #9
renault12ts's Avatar
renault12ts
Thread Starter
Super Member

Joined: Oct 2010
Posts: 724
Likes: 41
From: UK
W215 CL500 2005
Many thanks PM.
Reply
0
Old Jul 7, 2020 | 02:12 PM
Share
  #10
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
Originally Posted by renault12ts
Many thanks PM.
my pleasure
Reply
0
Old Jul 8, 2020 | 11:10 AM
Share
  #11
renault12ts's Avatar
renault12ts
Thread Starter
Super Member

Joined: Oct 2010
Posts: 724
Likes: 41
From: UK
W215 CL500 2005
I picked up a cluster for £90. I hope it works.This is cheaper than the parts needed to effect a repair...even if I could solder neatly.
Reply
0
Old Jul 8, 2020 | 11:27 AM
Share
  #12
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
Originally Posted by renault12ts
I picked up a cluster for £90. I hope it works.This is cheaper than the parts needed to effect a repair...even if I could solder neatly.
nice !
not many fail
Reply
0
Old Jul 16, 2020 | 10:08 AM
Share
  #13
renault12ts's Avatar
renault12ts
Thread Starter
Super Member

Joined: Oct 2010
Posts: 724
Likes: 41
From: UK
W215 CL500 2005
New (old) cluster arrived. Found the blown fuse...and it works. Just need it coded to the car now.
Reply
0
Old Jul 16, 2020 | 10:33 AM
Share
  #14
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
Originally Posted by renault12ts
New (old) cluster arrived. Found the blown fuse...and it works. Just need it coded to the car now.
best is to put the old back
adaptation with takeover
follow the screen
Reply
0
Old Jul 16, 2020 | 11:30 AM
Share
  #15
renault12ts's Avatar
renault12ts
Thread Starter
Super Member

Joined: Oct 2010
Posts: 724
Likes: 41
From: UK
W215 CL500 2005
Originally Posted by pmercury
best is to put the old back
adaptation with takeover
follow the screen
Not sure what you mean.
Reply
0
Old Jul 16, 2020 | 01:02 PM
Share
  #16
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
Originally Posted by renault12ts
Not sure what you mean.
ooops sorry

that post was not for here

you need to hook up your old cluster

then go in Xentry to cluster>adaptation
then adapt with takeover the old cluster coding

it will read
then tell you to replace cluster
and write to new cluster

done
Last edited by pmercury; Jul 16, 2020 at 01:04 PM.
Reply
2
Old Jul 16, 2020 | 01:05 PM
Share
  #17
pmercury's Avatar
pmercury
member
iTrader: (2)

Joined: Oct 2016
Posts: 3,093
Likes: 807
CL
post corrected
