Parts falling out of instrument cluster?
Thread Starter
Junior Member
Joined: Sep 2011
Posts: 64
Likes: 1
From: Ormond Beach, FL
1999 CLK 320 Carbo
Parts falling out of instrument cluster?

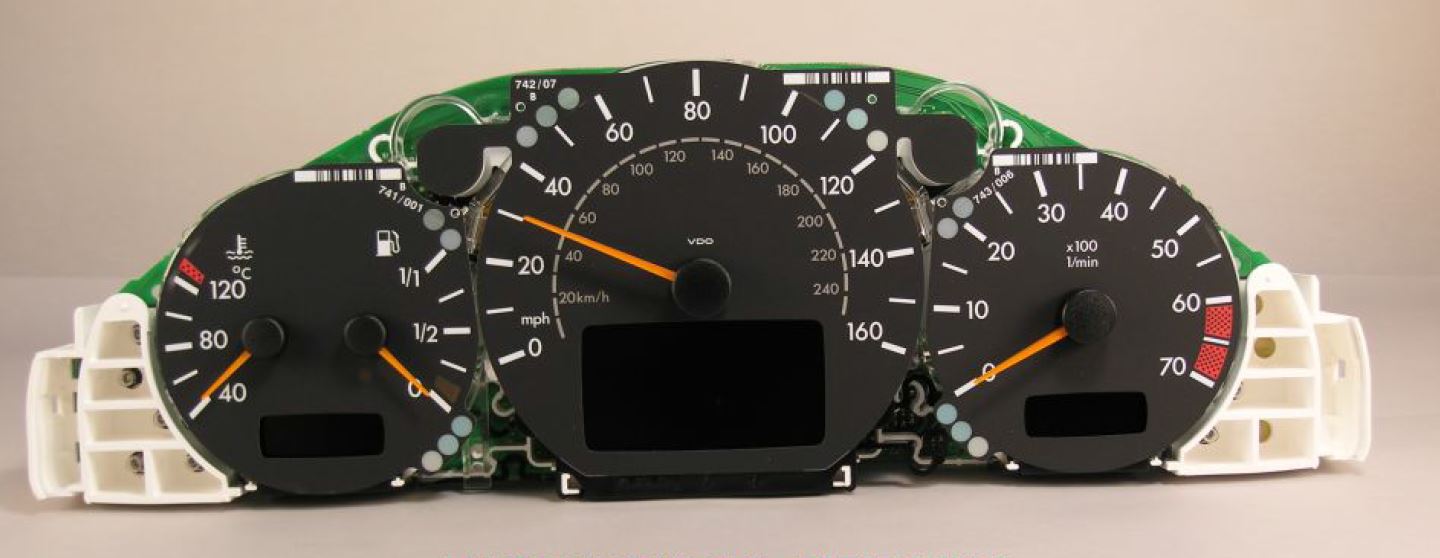

I've searched the forum but have not found answer. I pulled my 99 CLK320 convertable instrument cluster today to ship it out for pixel repair. No problems getting it out but now have exposed light bulbs instead of idiot lights? It looks like there may have been two light panel covers of some type that slide into the cluster housing? I've searched inside the dash and everywhere but don't find them! What have I done?
MBWorld Fanatic!
Joined: Nov 2001
Posts: 1,258
Likes: 209
From: Boston North Shore
2001 CLK320 Cabrio
The entire instrument cluster assembly is easy to remove (e.g. just pull out out of dash and disconnect two cables) and is how it should be shipped for repair. I don't see how those two corner triangular shaped lens (e.g. that cover the bulbs and provide specific warnings nomenclature.......CEL, SRS, Brakes, ABS etc.), could have fallen out and lost, unless the internal circuit board was also removed from the instrument cluster's housing.
The 2 corner lens are held in place/aligned by pins/notches (e.g. lens has small round holes and the circuit board backing plate as round pins).
Very unlikely those lens are sold anywhere, as separate parts. A new cluster is more than $1,000, plus labor to program it for a specific car. So.....if you can't find them, you might be able to find/buy a cheap broken cluster, to remove the lenses from.
The 2 corner lens are held in place/aligned by pins/notches (e.g. lens has small round holes and the circuit board backing plate as round pins).
Very unlikely those lens are sold anywhere, as separate parts. A new cluster is more than $1,000, plus labor to program it for a specific car. So.....if you can't find them, you might be able to find/buy a cheap broken cluster, to remove the lenses from.
Last edited by Serndipity; Sep 22, 2014 at 08:39 AM.
Super Member
Joined: Mar 2005
Posts: 932
Likes: 38
From: North of Boston
Steve can get them for you.
http://www.mbenznl.nl/index.php
And these guys sent extras when I had my cluster repaired.
http://www.bba-reman.com/us/index.aspx
http://www.mbenznl.nl/index.php
And these guys sent extras when I had my cluster repaired.
http://www.bba-reman.com/us/index.aspx
Last edited by cindyclk; Sep 22, 2014 at 08:32 AM.
