Question 04 CLK 500 Convertible Liner @ rear quarters

Has anyone experienced the liner strings which hold the roof liner tight @ the rear quarter windows becoming loose or breaking away from the plastic tabs that holds them?

It looks like they were held in 2 places through a loop. I can post pics when I get home.
Reply
Old Jun 28, 2015 | 01:24 PM
  #2
Rudeney's Avatar
MBworld Guru

Joined: Dec 2009
Posts: 10,782
Likes: 1,011
NO LONGER ACTIVE
I believe this is what you need:

http://benzbits.com/w209/soft_top/Re...nCableSeam.pdf
http://benzbits.com/w209/soft_top/RemoveRearWindow.pdf
http://benzbits.com/w209/soft_top/ExposeWaterPocket.pdf
http://benzbits.com/w209/soft_top/Gl...nCableSeam.pdf
Reply
Old Jun 28, 2015 | 06:39 PM
  #3
skalade's Avatar
Thread Starter
Junior Member

Joined: Jun 2015
Posts: 15
Likes: 0
clk 55

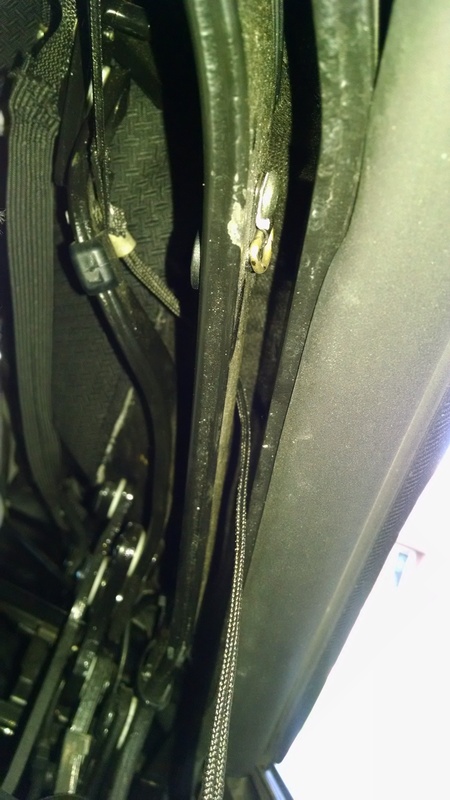

Here some pics. As you can see the string isn't still attached. Looks like the string went through at least one guide that was riveted to the arm.
04 CLK 500 Convertible Liner @ rear quarters-img_20150628_171524495.jpg
04 CLK 500 Convertible Liner @ rear quarters-img_20150628_171541001.jpg
Reply
