Can anyone help me find the hood latch sensor harness connector?
I have a 2005 clk500 that doesn't have the connector attached to the hood latch sensor. Can anyone point me towards where on the body harness this sensor connector is located, and possibly what the wire colors are?
Reply
0
Old Sep 24, 2016 | 09:45 PM
Share
  #2
Rudeney's Avatar
Rudeney
MBworld Guru

Joined: Dec 2009
Posts: 10,782
Likes: 1,011
NO LONGER ACTIVE
The wiring pair colors ar BN + BNRD (brown and brown with a red tracer). This wire will eventually lead to the front SAM, pin 7. The hood sensor itself is attached to the left-side latch.
Reply
0
Old Sep 24, 2016 | 11:47 PM
Share
  #3
URNVS's Avatar
URNVS
Thread Starter
Member

Joined: Dec 2010
Posts: 85
Likes: 0
CLK350
Originally Posted by Rudeney
The wiring pair colors ar BN + BNRD (brown and brown with a red tracer). This wire will eventually lead to the front SAM, pin 7. The hood sensor itself is attached to the left-side latch.
Thanks for the info! Do you by any chance know which bundle it goes into under the hood, as in what other sensors etc end up with this one?
Reply
0
Old Sep 25, 2016 | 12:29 AM
Share
  #4
URNVS's Avatar
URNVS
Thread Starter
Member

Joined: Dec 2010
Posts: 85
Likes: 0
CLK350

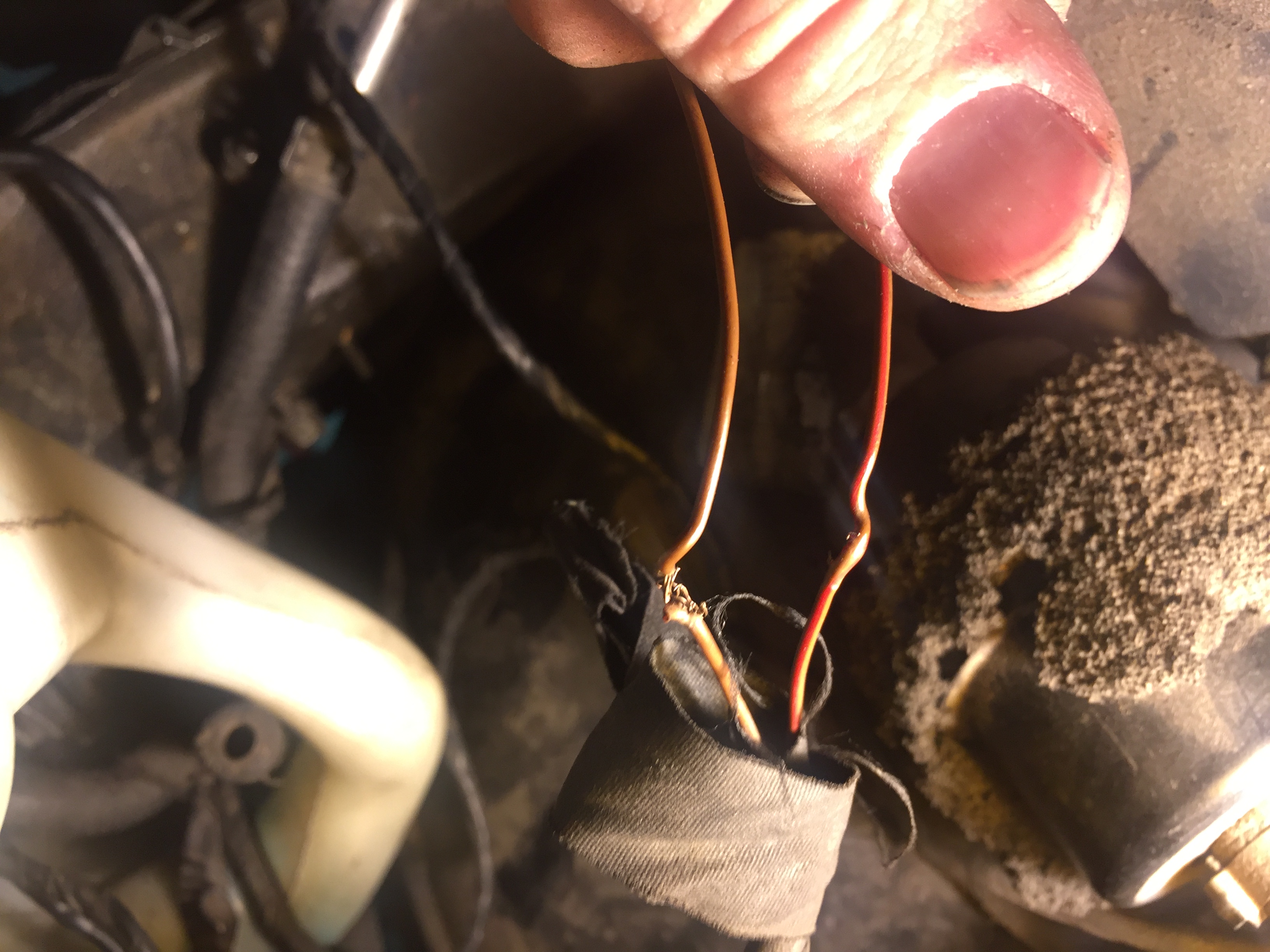

Found it, goes into the same harness as the headlight. Also found the cause of my problems :P
Attached Thumbnails Can anyone help me find the hood latch sensor harness connector?-img_1887.jpg
Reply
0
Old Sep 25, 2016 | 09:32 AM
Share
  #5
Rudeney's Avatar
Rudeney
MBworld Guru

Joined: Dec 2009
Posts: 10,782
Likes: 1,011
NO LONGER ACTIVE
Mice?
