I'm searching for the factory pin out information for the AMG GT series (M178 engines) if you have or know where I can find this information I would appreciate it if you can share that with me.
I'm in the process of creating my own overlays for easier trouble shooting any potential wiring issues. These are the (2) pin connectors that attach to the ECU of the AMG GT series engines This an example of my work in progress of creating overlays templates for the pin connectors
Thanks
Last edited by Hendrik Koster; Jul 17, 2021 at 10:21 PM.
I'm searching for the factory pin out information for the AMG GT series (M178 engines) if you have or know where I can find this information I would appreciate it if you can share them
Thanks

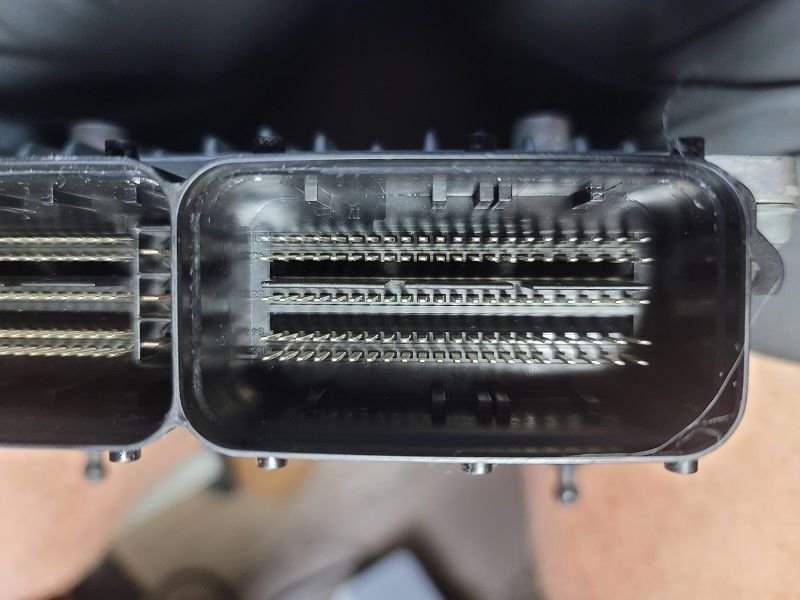

Well I went ahead and made my own templates... Left side pins Right side pins Final version for oil sensor and oil level related pins
Last edited by Hendrik Koster; Jul 18, 2021 at 11:44 AM.
