help needed ETA wiring
Help ,need schematic for the eta
I have a E220 S124 1996 asr M111
I found deteriorated wire insulation,i repaird the wiring loom from the actuater.
Now the damm thing wont work at all
I am afraid i have made a mistake with the wiring ,couldnt tell the colors right anymore,stupid me?

So if someone plaese can help me with a schematic of the plug and ETA? please




not mine but this ,i have this one
Last edited by catch; Sep 11, 2016 at 02:21 AM.
Reply
0
Old Sep 12, 2016 | 05:53 AM
Share
  #2
optimusprime m1's Avatar
optimusprime m1
Super Member

Joined: Jan 2015
Posts: 920
Likes: 46
From: Worcestershire UK
W124 260E
ETA

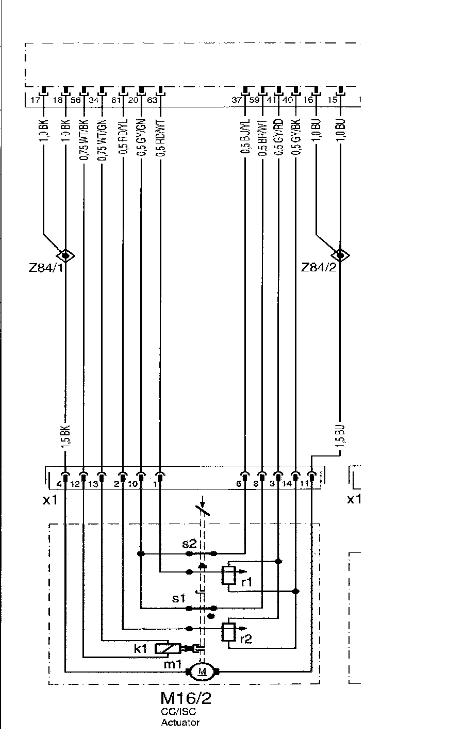

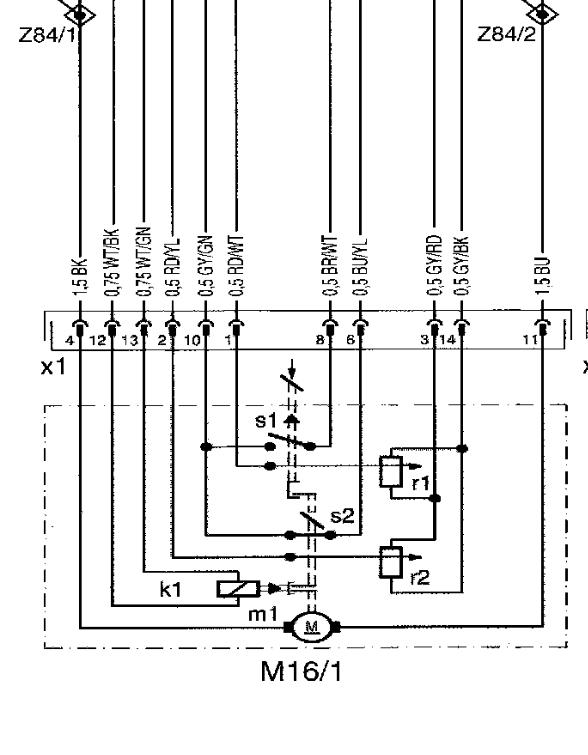

All i can find is this for a 1995 E320 if it will help . Let me know if it any use to you .
Attached Thumbnails help needed ETA wiring-2011-10-24_164336_0000000.jpg   help needed ETA wiring-2011-10-24_134046_0000000.jpg
