I recently refurbished my instrument cluster myself and am very happy with the result. Below are before-and-after photos. During the process, I consulted various videos and write-ups and decided to consolidate everything I learned into one place. Hopefully, this write-up helps someone else tackling the same project.

Overview

I replaced the entire cluster housing. My original housing was brown, and I swapped it for a black one. The donor cluster had higher mileage but was in significantly better cosmetic condition. The faded speedometer was especially bothering me—I wanted the orange km/h scale—so I replaced the speedometer face with the donor unit. This requires carefully prying off the needle and removing two small black screws on the speedometer face. I also used the tachometer/clock combination from the donor cluster.

Cleaning and Cosmetics

I cleaned the triple-gauge face with apple vinegar first, then wiped all gauge faces with WD-40—amazing results. For the needles, I used Testor 1126-RM11261_0711 Gloss Tangerine paint, which is a perfect color match in my opinion, along with Testor brushes. I do wish they offered this color in a satin finish.

When painting the needles, make sure to apply the paint in a single pass. Multiple layers add weight and can interfere with the needle’s spring mechanism.

Removing and Reinstalling the Speedometer Needle

To remove the speedometer needle, I used a standard fork and a business card. Place the card on the speedometer face, slide the fork’s tines under the base of the needle (on top of the card), and use the fork as a lever to pry the needle off. It does require some force—this is normal—but make sure the force is applied straight upward. Do not bend the needle stem.

Before removing the needle, carefully move it past the lower stop and mark the position where it naturally rests. This reference point is critical for reinstalling it correctly. Expect to reinstall and adjust the needle several times to achieve accurate speed readings, so don’t press it on firmly during the first attempt.

Repairs and Electrical Improvements

While everything was apart, I repaired minor cracks around the housing screw locations using black JB Weld. I also added a wire link connecting all three #8 grounding nuts behind the triple instrument to eliminate potential grounding issues. My oil pressure needle had been jerky, but since it was stable in a replacement cluster, I ruled out the sending unit and addressed grounding instead.

For illumination, I installed two Sylvania 168A amber LED cluster bulbs. I modified the terminals so each lead loops around its own side of the bulb base—do not wrap the terminals around both sides, as that will short the cluster.

Signal Indicator Notes

The signal lamp locations at the bottom of the cluster are defined by two plastic film strips with printed icons that slide into the housing from each side. These are easy to remove. If you want to preserve the original indicator layout, reuse your original film strips.

General Notes

• Cluster housings appear to be interchangeable regardless of year.

• I’ve heard later housings have improved illumination filaments.

• In my original housing, both the clear light conductor and the white reflector were melted by incandescent bulbs. That was the main reason I switched to LEDs—the lower operating temperature.

• Stock illumination is perfectly fine if your housing is intact. I used 1W bulbs; some people use 5W, but that’s likely too bright and too hot.

• Before final assembly, vacuum the housing thoroughly. I missed a few dust specks initially and had to disassemble everything again.

Befoe and after pics attached.

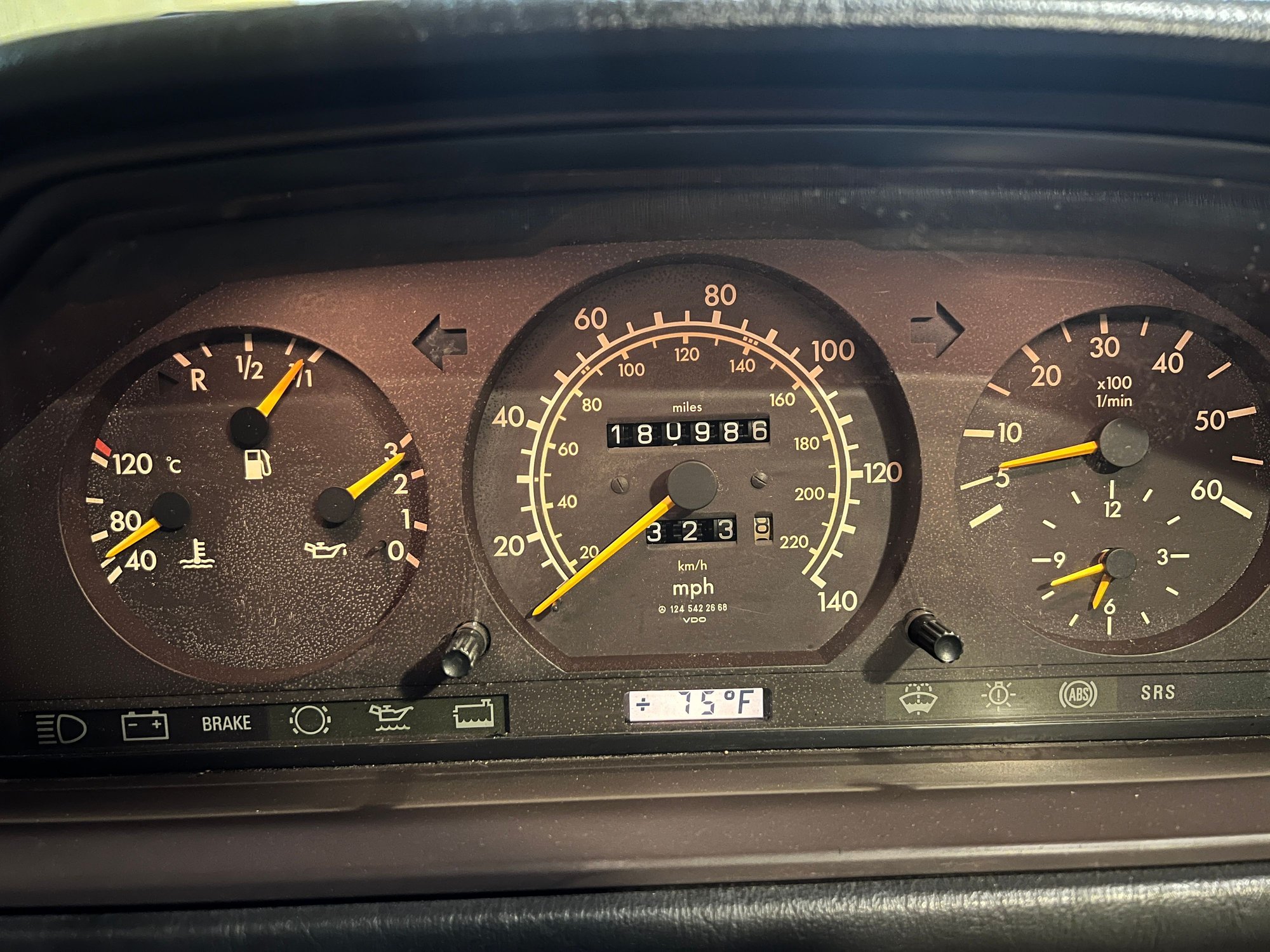

Before

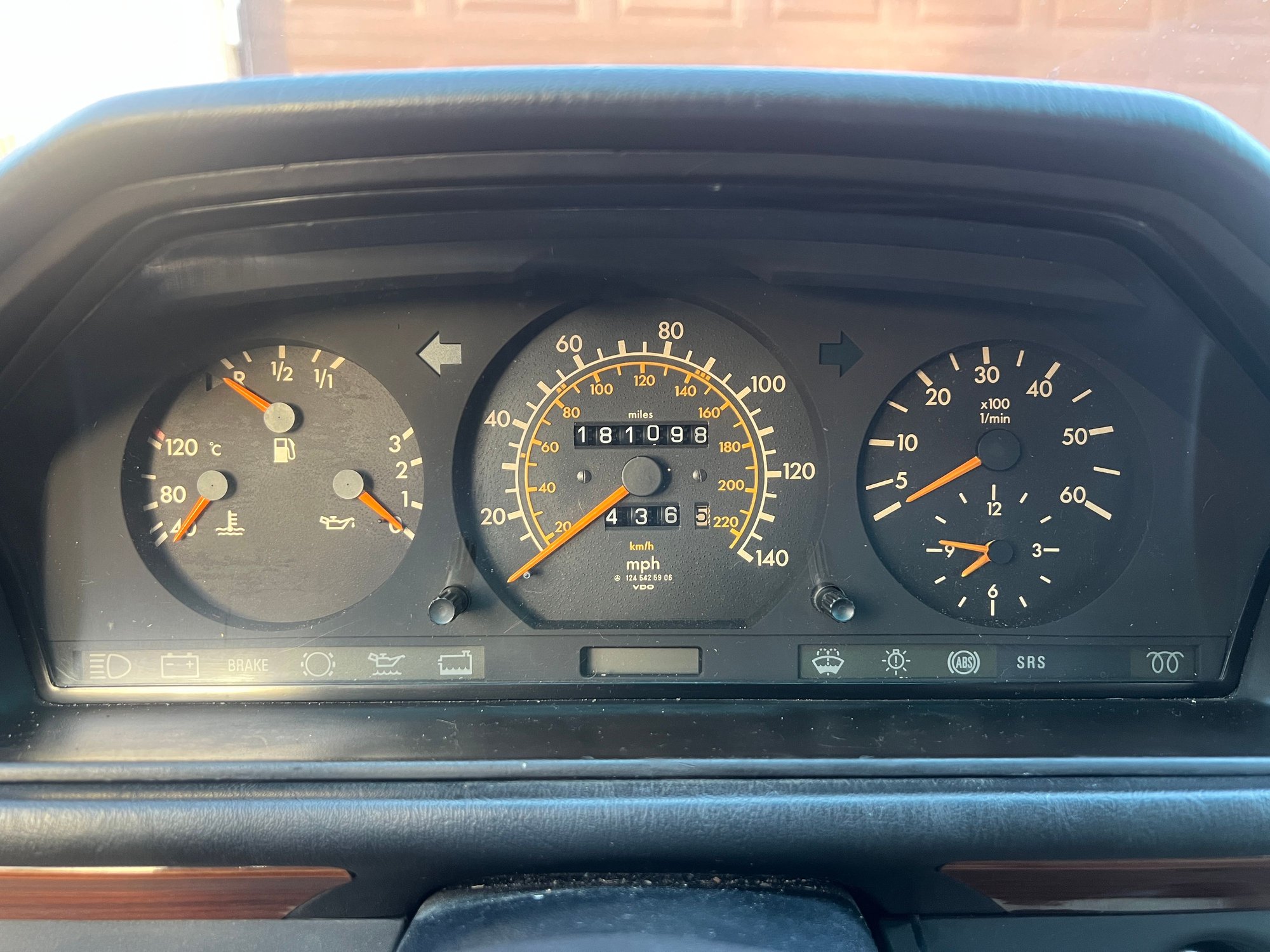

After
