HELP ME ...!! With the Box Fuses & Relays
2015 Mercedes-Benz G-Class G63 AMG

I can't find the diagram of my box fuses and relays in the Passenger Footwell .. and it doesn't match any box fuses in the web.

I just want to know the " ignition lock control " fuse and " starter relay " location .

Plz Help Me ..

REGARDS .



Last edited by rt7; Jan 28, 2024 at 05:37 PM.
Reply
0
Old Oct 17, 2024 | 12:44 PM
Share
  #2
hokievet's Avatar
hokievet
Junior Member

Joined: Jan 2023
Posts: 18
Likes: 0
g55 amg
Did you ever find a diagram? I can’t find one either
Reply
0
Old May 4, 2026 | 07:16 PM
Share
  #3
pEzzo's Avatar
pEzzo
Junior Member

Joined: Sep 2025
Posts: 15
Likes: 1
2015 G550
Hi, Did you find the answer? I am having issue with the Command fuse (no sound or rear view camera) and it's supposed to be fuse 64, but fuse box is not matching mine G550. Please let me know if you figure that fuse layout.
Reply
0
Old May 4, 2026 | 08:27 PM
Share
  #4
SilverG500's Avatar
SilverG500
Junior Member
Photogenic

Joined: May 2025
Posts: 63
Likes: 11
2002 G500

Reply
0
Old May 4, 2026 | 08:29 PM
Share
  #5
SilverG500's Avatar
SilverG500
Junior Member
Photogenic

Joined: May 2025
Posts: 63
Likes: 11
2002 G500

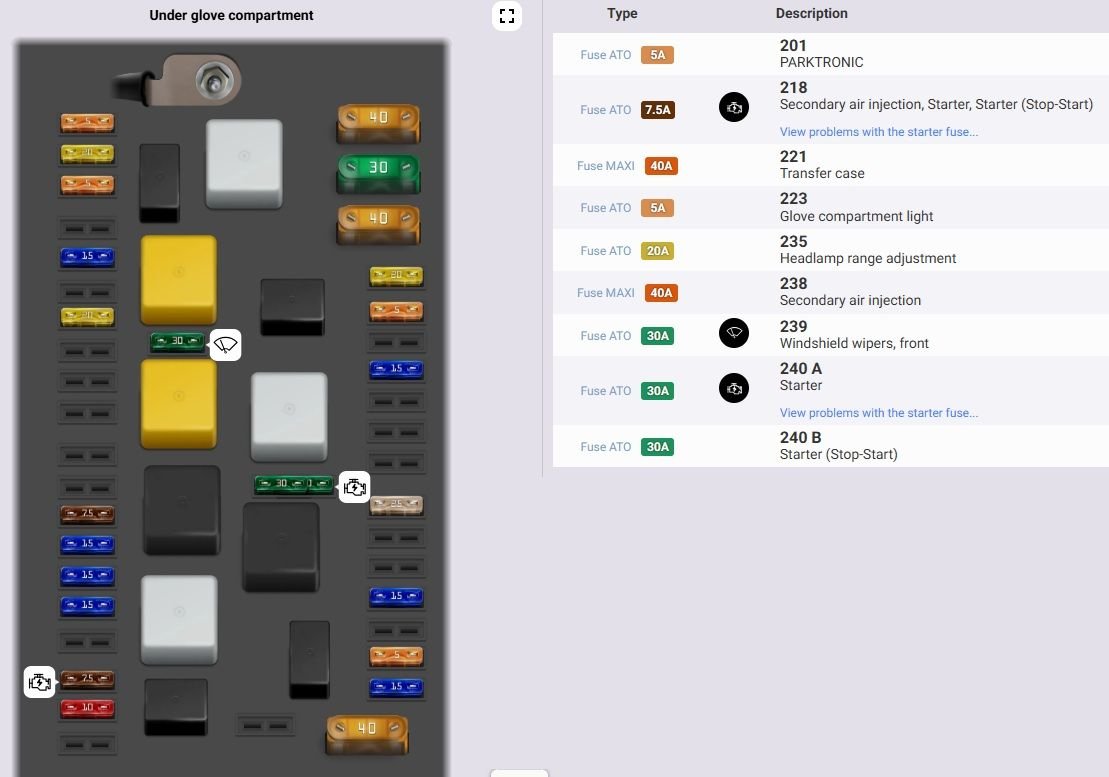

https://www.startmycar.com/mercedes-...oogle_vignette
Reply
0
Old May 4, 2026 | 09:40 PM
Share
  #6
pEzzo's Avatar
pEzzo
Junior Member

Joined: Sep 2025
Posts: 15
Likes: 1
2015 G550
Thanks for trying to help but the fuse box is different than on your photo, see the previous post from rt7 user. Can't figure out why it is different.
Reply
0
Old May 8, 2026 | 10:38 AM
Share
  #7
pEzzo's Avatar
pEzzo
Junior Member

Joined: Sep 2025
Posts: 15
Likes: 1
2015 G550
BUMP
