TPMS Computer Problem???
Thread Starter
Member
Joined: Nov 2012
Posts: 220
Likes: 2
From: New England
2006 S430 4Matic
TPMS Computer Problem???
I have been driving my 2006 S430 4Matic for some time with dead TPMS Batteries. I finally found a deal on new sensors (Titan) and had them installed last night. The shop I took it to is a tire specialist. I get all my tires there. In any case they tried to reset the Tire Pressure Monitor and could not. They plugged their computer into the system and it would not communicate with it.
When I go to the TPM on the instrument cluster the message reads "Tire Pressure Monitor non operational" Do I have bigger problems than just the TPMS in the tires? I will be making an appointment to take it into my MB Indy but wanted to get some input before I do. Thanks for your help.
When I go to the TPM on the instrument cluster the message reads "Tire Pressure Monitor non operational" Do I have bigger problems than just the TPMS in the tires? I will be making an appointment to take it into my MB Indy but wanted to get some input before I do. Thanks for your help.
Member
Joined: Aug 2013
Posts: 115
Likes: 4
2006 S500 base
Pull fuse 70 ( red 10 amp ) under back seat. Fifth slot from the door side of fuse panel, top row.
This is hard reset of TPMS control module. Then do the instrument cluster reset, drive a dozen miles or so till the tire info shows or the inop message re-appears. You MAY need to do the instrument cluster reset a few times in order for the control module to poll all four wheels sequentially within the window the control unit allows before throwing a code and shutting down. Eventually it should work as info gained from each wheel is retained ( serial number of sensor, battery voltage, temp and pressure ) before the unit polls the next wheel.
Just did this on my '06 last week.
PS...make sure you are starting with the recommended pressures, check fuel fill door for pressures, mine are 29 front 32 rear.
This is hard reset of TPMS control module. Then do the instrument cluster reset, drive a dozen miles or so till the tire info shows or the inop message re-appears. You MAY need to do the instrument cluster reset a few times in order for the control module to poll all four wheels sequentially within the window the control unit allows before throwing a code and shutting down. Eventually it should work as info gained from each wheel is retained ( serial number of sensor, battery voltage, temp and pressure ) before the unit polls the next wheel.
Just did this on my '06 last week.
PS...make sure you are starting with the recommended pressures, check fuel fill door for pressures, mine are 29 front 32 rear.
Last edited by fxdeebee; Jan 29, 2014 at 12:37 PM.
Thread Starter
Member
Joined: Nov 2012
Posts: 220
Likes: 2
From: New England
2006 S430 4Matic
Hi all, FXDEEBEE the fuse trick did reset the computer but the sensors will not register with the unit. I have reset it 3 or 4 times and no result. I drive 50 miles to work so it has plenty of time to register. This morning I sent an email to TITAN to see if they could add anything. If anyone has any ideas let me know and I will try it. Thanks
Thread Starter
Member
Joined: Nov 2012
Posts: 220
Likes: 2
From: New England
2006 S430 4Matic

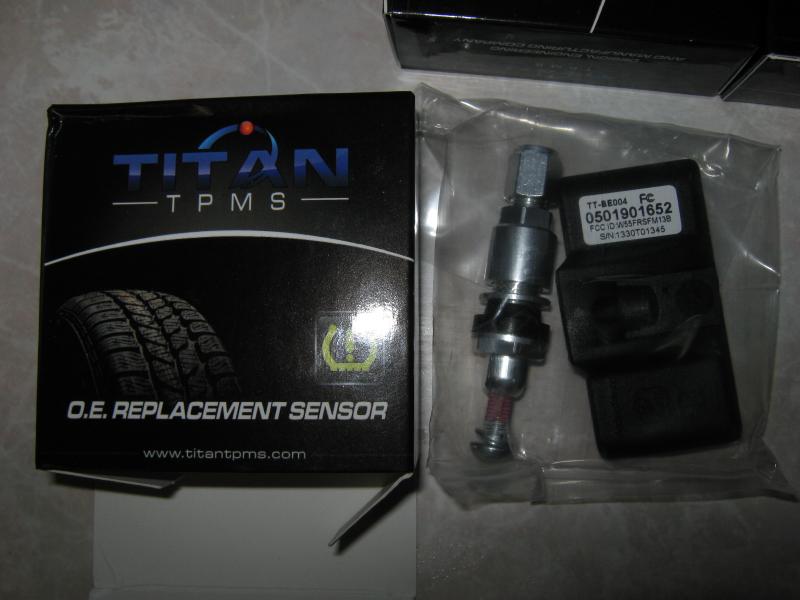

Yes, before I had them installed I called TITAN and verified the frequency since it was not printed on the device. I also double checked their web site because as you state some are 315 and some are 430 for my car. I did check the old sensors and they were 315 MHZ.
Trending Topics
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
Thread Starter
Member
Joined: Nov 2012
Posts: 220
Likes: 2
From: New England
2006 S430 4Matic
Over the weekend I am stopping at the tire place where I had them put in and have them give me a reading on these. If they can read the system I will have them enter the serial numbers in.
Newbie
Joined: Jun 2014
Posts: 9
Likes: 0
From: Los Angeles, CA
2006 S430
I'm having the same issue with Titan BE-004 sensors I installed on my 2006 S430. I removed fuse #70 for a few hours then did a reset on the dash. I drove several miles and the dash display went to the "take to workshop" message. I stopped and did another reset and this time all tires displayed with the proper pressures. I thought it was a done deal when the right status came up. However as I continued to drive home, the system went back to "tire pressure monitoring is non-operational". I did yet another reset and the 4 tires showed again, however this time one of them had a dash rather than a reading. I did another reset after that and now I can't seem to get it back to the readings. Are these Titan sensors just that flaky in communicating with the car's main unit?
Member
Joined: Aug 2013
Posts: 115
Likes: 4
2006 S500 base
I'm having the same issue with Titan BE-004 sensors I installed on my 2006 S430. I removed fuse #70 for a few hours then did a reset on the dash. I drove several miles and the dash display went to the "take to workshop" message. I stopped and did another reset and this time all tires displayed with the proper pressures. I thought it was a done deal when the right status came up. However as I continued to drive home, the system went back to "tire pressure monitoring is non-operational". I did yet another reset and the 4 tires showed again, however this time one of them had a dash rather than a reading. I did another reset after that and now I can't seem to get it back to the readings. Are these Titan sensors just that flaky in communicating with the car's main unit?
When I had mine put in I went thru the same scenario. Pull the fuse again ( doesn't have to be for hours, just a couple seconds will do ) and go thru the whole procedure again.
My experiences are chronicled here .. starting at post 59
http://www.benzworld.org/forums/w220...erified-3.html
My Titans have been in for 5 months and have performed well to this point. I do occasionally ( like once a month or so ) get a dashboard message about being non operational but a dash reset clears it immediately.
Thread Starter
Member
Joined: Nov 2012
Posts: 220
Likes: 2
From: New England
2006 S430 4Matic
Hi all, It took a few months of messing with it but my system finally came around. My car was in the body shop for a while with the battery unhooked, when I got it back the TPMS registered. It works now but the right rear comes up as dashes after driving a while and then comes back later. I spoke with TITAN about the problem and swapped my rear to front and the problem followed the tire. Titan send me a new sensor, yet to be installed.
Newbie
Joined: Jun 2014
Posts: 9
Likes: 0
From: Los Angeles, CA
2006 S430
Thanks for the quick response to my post from yesterday. I'll continue to reset the system with hopes that it will stick at some point. One thing i forgot to mention in my original posting was that another wheel shop had ordered the OEM Huff brand sensors and the system registered a few minutes later with no issues at all. The problem I did have was that the stems were leaking air very slowly and the shop was not able to correct it. They gave me a great price on the OEMs and I really wished they would have worked. With the Titans, air is tight and they fit nicely, however they are not registering as feasibly as the OEMs did. At this point, basing it on my struggles and from reading other posts, it appears that the Titan sensors are not as solid as the OEM's. To be fair, I don't know how they compare to other aftermarket sensors. I may have to consider just eating the cost of the Titans and look at purchasing OEMs again. Hopefully the next set will work.

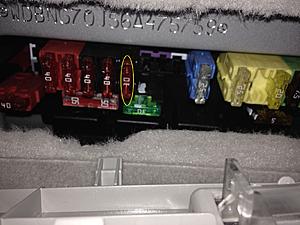

To confirm, is the circled fuse on the image below fuse #70?
