Instrument Cluster LCD doesn’t work
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
Instrument Cluster LCD doesn’t work
It’s not the end of the world, but it’s really annoying. Idk why, but the pixels in the LCD display instrument cluster seem to have gone poof. The backlight works, and it turns red warning me about the SRS light, but if the car is cold (like... less than 15°C cold, not even freezing), the display effectively displays nothing.
Isn’t there a recall on this or something?
Is there a fix? some spray? (joking)
Isn’t there a recall on this or something?
Is there a fix? some spray? (joking)
MBWorld Fanatic!
Joined: Aug 2002
Posts: 1,005
Likes: 33
From: Germany
'00 S320 W220, '98 A160 W168/ sold in 2005 '86 260 E W124 '90 260E W124
Check the Youtube channel. There is a fix, not simple but possible. It is a small transformer and some discrete parts which gave up to deliver proper voltages. So the illumination of the LCD is gone.
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
It's not the illumination but the pixels that seem to be broken...?
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
What youtube channel are you referring to? I'll happily do some soldering
Trending Topics
Member
Joined: Jan 2015
Posts: 104
Likes: 27
From: Detroit, MI
2006 CLS55AMG & 2005 S55AMG
My 2005 S55amg has the same issue. If the ambient temp is below 70* the odometer/info lcd screen is dim. After a while of driving the lcd display warms up and is visible again. There is a vendor on ebay that offers a repair service. You have to send your entire dash cluster to them and they do whatever they do and send it back. I was considering using their service, but uneasy about sending it out and God only knows if and when you'll ever see it again. I guess they are legit. I'm not certain if the issue is with the lcd screen itself or the three transformers that are associated with the screen.
Here are links regarding the issue, and the repair service offered on ebay.
https://www.mercedesmedic.com/instru...cl-class-c215/
https://www.ebay.com/itm/Mercedes-W2...cAAOSwn3VasuND
This ebay vendor specifically mentions dim lcd display in their ad.
https://www.ebay.com/itm/Mercedes-S-...wAAOSw-K9ZLdzb
Here are links regarding the issue, and the repair service offered on ebay.
https://www.mercedesmedic.com/instru...cl-class-c215/
https://www.ebay.com/itm/Mercedes-W2...cAAOSwn3VasuND
This ebay vendor specifically mentions dim lcd display in their ad.
https://www.ebay.com/itm/Mercedes-S-...wAAOSw-K9ZLdzb
Last edited by hvacdude; Nov 11, 2020 at 10:19 PM.
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
My 2005 S55amg has the same issue. If the ambient temp is below 70* the odometer/info lcd screen is dim. After a while of driving the lcd display warms up and is visible again. There is a vendor on ebay that offers a repair service. You have to send your entire dash cluster to them and they do whatever they do and send it back. I was considering using their service, but uneasy about sending it out and God only knows if and when you'll ever see it again. I guess they are legit. I'm not certain if the issue is with the lcd screen itself or the three transformers that are associated with the screen.
Here are links regarding the issue, and the repair service offered on ebay.
https://www.mercedesmedic.com/instru...cl-class-c215/
https://www.ebay.com/itm/Mercedes-W2...cAAOSwn3VasuND
This ebay vendor specifically mentions dim lcd display in their ad.
https://www.ebay.com/itm/Mercedes-S-...wAAOSw-K9ZLdzb
Here are links regarding the issue, and the repair service offered on ebay.
https://www.mercedesmedic.com/instru...cl-class-c215/
https://www.ebay.com/itm/Mercedes-W2...cAAOSwn3VasuND
This ebay vendor specifically mentions dim lcd display in their ad.
https://www.ebay.com/itm/Mercedes-S-...wAAOSw-K9ZLdzb
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
I’ve done some looking into it. It appears everyone is talking about the backlight fluorescent lights, but I have a fading LCD display (the backlight works fine).
I spoke with the dealership, and they suggested buying a used cluster and swapping them out. I haven’t find something that specifically talks about the fading LCD issue.
I will keep looking into options.
I spoke with the dealership, and they suggested buying a used cluster and swapping them out. I haven’t find something that specifically talks about the fading LCD issue.
I will keep looking into options.
Newbie
Joined: Dec 2020
Posts: 6
Likes: 0
w220 S320 year 2001
I’ve done some looking into it. It appears everyone is talking about the backlight fluorescent lights, but I have a fading LCD display (the backlight works fine).
I spoke with the dealership, and they suggested buying a used cluster and swapping them out. I haven’t find something that specifically talks about the fading LCD issue.
I will keep looking into options.
I spoke with the dealership, and they suggested buying a used cluster and swapping them out. I haven’t find something that specifically talks about the fading LCD issue.
I will keep looking into options.
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
When I spoke on the phone they said they will likely replace all failure prone components and they provide a lifetime warranty on repairs. We’ll see how it is when it gets back.
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
Well they're sending it back. Turns out their ebay listing was a lie.
Go figure. If you want a job done right you have to do it yourself.
I already ordered the part. **** this ****.
Go figure. If you want a job done right you have to do it yourself.
I already ordered the part. **** this ****.
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
I just ordered a replacement one on ebay for $150 (I think prices will go down but whatever).
It’s very easy to replace, just remove a bunch of T10 torx screws (get the w220 instrument cluster removal tool).
Probably your best bet is to buy an instrument cluster on ebay and swap out hte LCD displays. Note there are 2 types of LCD displays, I’m not sure if it’s a facelift/non-facelift thing. I’m going to guess it is.
Newbie
Joined: Mar 2022
Posts: 4
Likes: 2
2003 Mercedes-Benz CL 55 AMG
I just ordered a replacement one on ebay for $150 (I think prices will go down but whatever).
It’s very easy to replace, just remove a bunch of T10 torx screws (get the w220 instrument cluster removal tool).
Probably your best bet is to buy an instrument cluster on ebay and swap out hte LCD displays. Note there are 2 types of LCD displays, I’m not sure if it’s a facelift/non-facelift thing. I’m going to guess it is.
It’s very easy to replace, just remove a bunch of T10 torx screws (get the w220 instrument cluster removal tool).
Probably your best bet is to buy an instrument cluster on ebay and swap out hte LCD displays. Note there are 2 types of LCD displays, I’m not sure if it’s a facelift/non-facelift thing. I’m going to guess it is.
Newbie
Joined: Dec 2013
Posts: 12
Likes: 4
W126
Replacements LCD from Ali Express
here is a link to a replacement part from AlinExpress but please note that they mention 3 different models you need to check exact part.number
لقد وجدت هذا المنتج الرائع للتو على AliExpress. شاهده الآن! AED410.86 6%OFF | وحدة عرض الكتلة الصك لمرسيدس بنز W220 W215 S/CL فئة لوحة القيادة LCD LUM0582A LUM0279C
https://a.aliexpress.com/_msjpvAq
لقد وجدت هذا المنتج الرائع للتو على AliExpress. شاهده الآن! AED410.86 6%OFF | وحدة عرض الكتلة الصك لمرسيدس بنز W220 W215 S/CL فئة لوحة القيادة LCD LUM0582A LUM0279C
https://a.aliexpress.com/_msjpvAq
Thread Starter
Super Member
Joined: Dec 2007
Posts: 980
Likes: 224
2005 S500 Designo
Hey, I'm sorry to reply years later but I'm getting desperate. I'm having issues with my CL center display and as a result, I'm missing out on a lot of important information. I was wondering if you can advise me on the replacement of the LCD display. Does it have to be coded? What does the job entail? Which center display offered is better? Thank you.

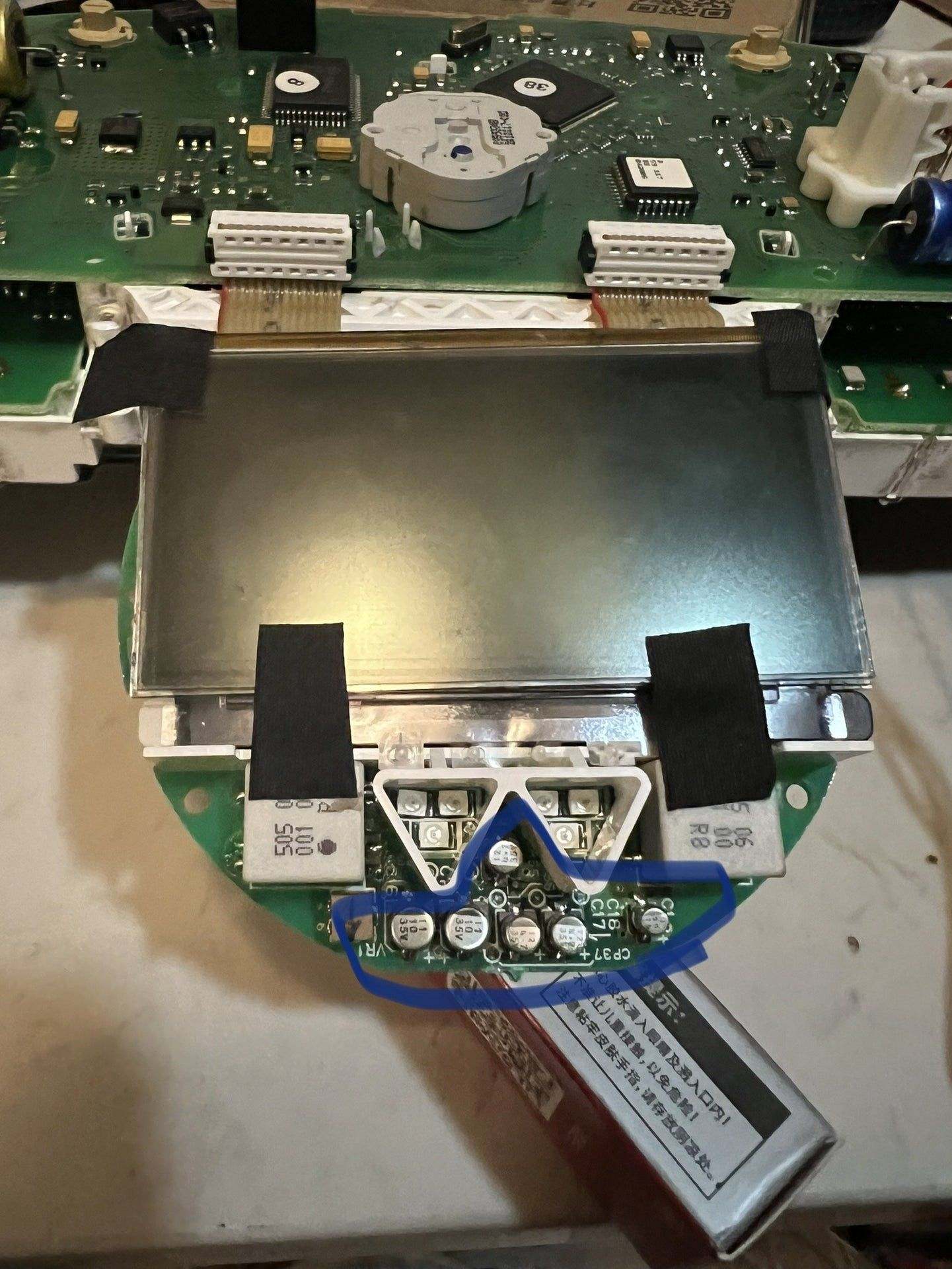

“4.7 uF microfarad , 35 volt smd are the small ones and the large ones are 10 uF , 35v.”
