S-Class (W220) 1999-2006: S 320 CDI, S 320, S430, S 500, S 600

Looking for wiring diagram 2003 S430 ecu pinouts

Thread Tools

Search this Thread

Rate Thread

Old Jul 14, 2024 | 08:13 PM
  #1
scottsy's Avatar
Thread Starter
Newbie

Joined: Jul 2024
Posts: 2
Likes: 0
2003 s430
Looking for wiring diagram 2003 S430 ecu pinouts

I have just obtained a 2003 s430 from a friend. Car is in fantastic condition. Very well taken care of. Car is giving p0131 codes. I can tell you it's not the O2 sensors. The wiring harness for O2 was replaced and I am unsure if they wired car properly. This all started back in 2019... I found grease in o2 sensor connections and also in the 3 connector that goes into ecm... I have cleaned all those connections and even opened the ecu and clean computer board with 99% iso alcohol. 3 items each time I clean it it get better... I think this is a wiring issue and want not to validate proper wiring at ecu. Help hate to see car get destroyed ....

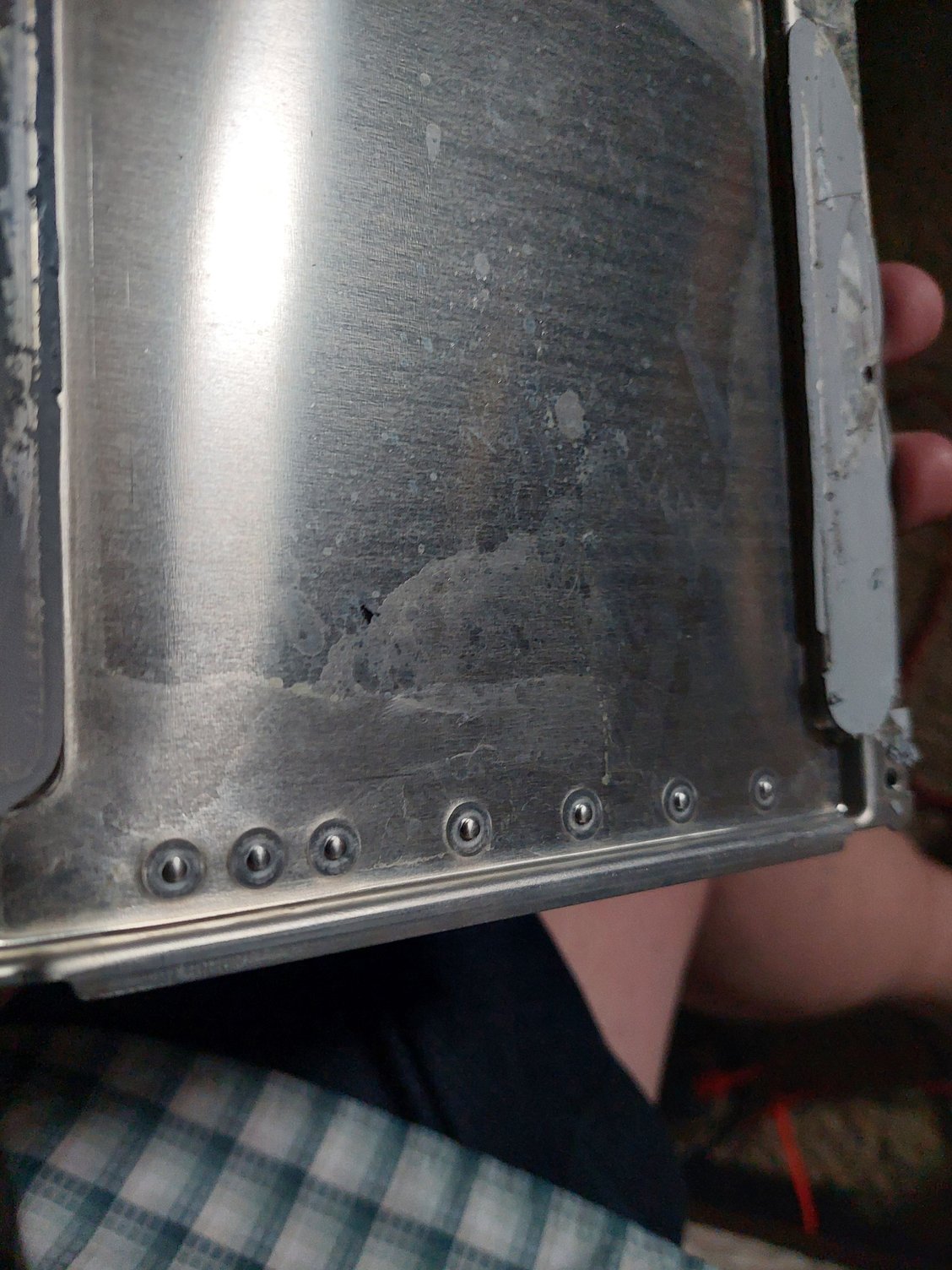

Grease very light film

Note brownish color on ecu board

See grease film


Reply
Old Jul 15, 2024 | 10:28 AM
  #2
wallyp's Avatar
MBWorld Fanatic!
10 Year Member
Liked

Joined: Dec 2012
Posts: 2,473
Likes: 439
From: Ball Ground, GA (N of Atlanta)
2003 S500 2007 GL450
If I remember correctly, the O2 sensors must have access to clean air to function correctly, and in some cases, that air comes in on the electrical wire. If that is the case, the installer erred by putting the corrosion-preventing grease in the connectors.
Reply
Old Jul 15, 2024 | 02:21 PM
  #3
scottsy's Avatar
Thread Starter
Newbie

Joined: Jul 2024
Posts: 2
Likes: 0
2003 s430
Air comes thru wires ! Wow. Clean air very cool..
Reply

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)



You have already rated this thread Rating: Thread Rating: 0 votes,  average.


All times are GMT -4. The time now is 12:36 PM.
