Adding reverse camera

Hello guys,

Can someone tell me where I can tap off in the trunk area for power which comes on when the ignition is turned on? Navtv recommended not tapping off of the license plate light nor the reverse light wire of the tail lights. So I need to tap into the trunk fuse panel or something else. Please let me know your recommendations. Thanks
Old 01-12-2019, 09:32 AM
  #2
Out Of Control!!

konigstiger's Avatar

Join Date: Jul 2003
Location: North Scottsdale, AZ
Posts: 15,903
Received 4,416 Likes on 3,146 Posts
'71 Pinto
Consider 133 @ rear SAM used for camera 2009 >, attached 2007 & 2009 fuse assignment.


Attached Files

Last edited by konigstiger; 01-12-2019 at 09:35 AM.
Old 01-17-2019, 02:44 PM
  #3
Out Of Control!!

konigstiger's Avatar

Join Date: Jul 2003
Location: North Scottsdale, AZ
Posts: 15,903
Received 4,416 Likes on 3,146 Posts
'71 Pinto
Originally Posted by clb00196
I am attempting to add massage and heat rear seats on my s550. I am trying to tap power off the rear armrest fuse box and want to know 2 spots that I am use to do so. Any suggestions?

Attached Files
File Type: pdf
R SAM.pdf (37.6 KB, 99 views)
Old 01-20-2019, 03:06 PM
  #4
Out Of Control!!

konigstiger's Avatar

Join Date: Jul 2003
Location: North Scottsdale, AZ
Posts: 15,903
Received 4,416 Likes on 3,146 Posts
'71 Pinto
Originally Posted by clb00196
need the part # to the circular clips that hold the side cargo net at the bottom in the trunk. Not the one that has a torx screw in it

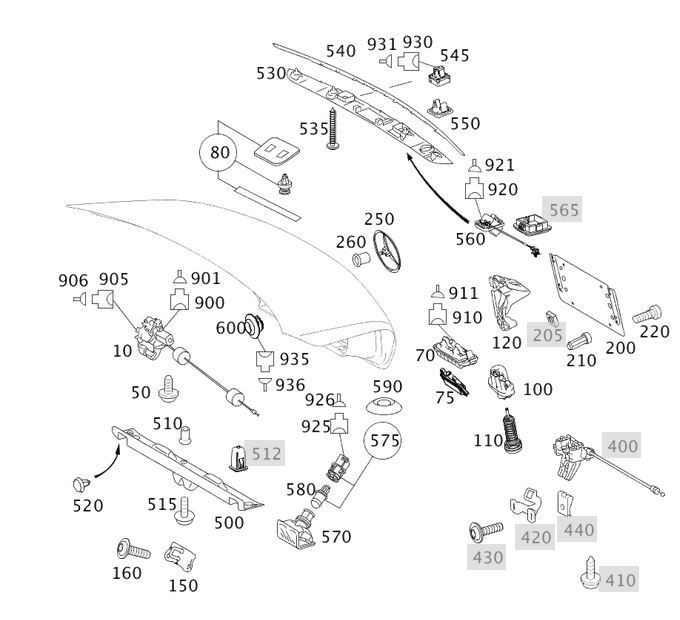

Not sure I understand EPC shows mounting hook (80) 2118100263 w/screw 000000000525 (82) 4.2x25 - quantity 2.
Cover (530) mounting screws 0019846429 (535) 5x16 hex bolt - quantity 2
Panel (10) screws 0019845829 (13) 4x16 hex bolt - quantity 4
