S-Class (W221) 2007-2013: S 320 CDI, S 350, S 450, S 500, S 550, S 420 CDI, S 600

reference or part number of the 12v socket ???

Thread Tools

Search this Thread

Rate Thread

Old Apr 15, 2022 | 08:23 AM
  #1
Oderfla's Avatar
Thread Starter
Member

Joined: Oct 2019
Posts: 95
Likes: 8
mercedes s 500 w221 año 2005
reference or part number of the 12v socket ???

Hello good Morning. Could you help me with the reference number of the 12v connector that goes in the glove box. I would be very grateful. Greetings and have a good weekend. thank you


Reply
Old Apr 15, 2022 | 11:34 AM
  #2
konigstiger's Avatar
Out Of Control!!

Joined: Jul 2003
Posts: 15,901
Likes: 4,632
From: North Scottsdale, AZ
'71 Pinto

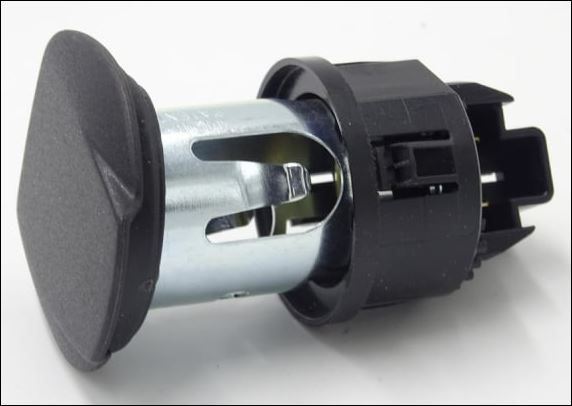

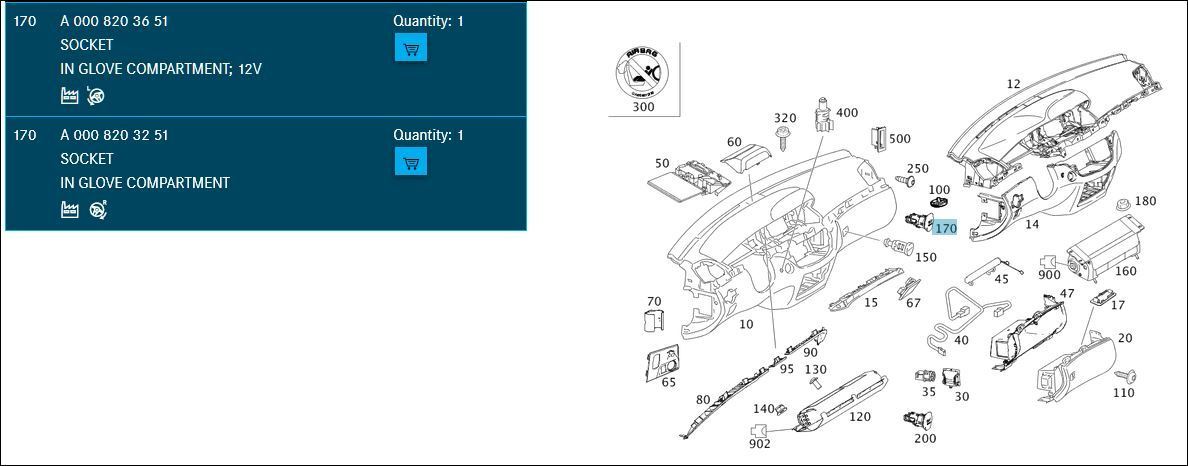

Search part # 0008203651. Note in capture 3651 = left drive, 3251 right.



Reply
Old Apr 15, 2022 | 12:09 PM
  #3
Oderfla's Avatar
Thread Starter
Member

Joined: Oct 2019
Posts: 95
Likes: 8
mercedes s 500 w221 año 2005
Hello mi friend

First say hello and second thank you for the answer and image. It has helped me a lot. Thank you. I have two questions for you and please forgive my ignorance. my car has a left-hand drive, so the reference ends in 3651, is that correct? and the other question, what is the difference between the 12v socket with a right reference and the 12v socket with a left reference. It's just to find out more. thank you greetings to you.
Reply
Old Apr 15, 2022 | 12:27 PM
  #4
konigstiger's Avatar
Out Of Control!!

Joined: Jul 2003
Posts: 15,901
Likes: 4,632
From: North Scottsdale, AZ
'71 Pinto
3651 is correct. Difference is orientation:






Reply
Old Apr 15, 2022 | 02:41 PM
  #5
Oderfla's Avatar
Thread Starter
Member

Joined: Oct 2019
Posts: 95
Likes: 8
mercedes s 500 w221 año 2005
Thank you my friend

thank you my friend. As always, your knowledge and the help you provide to this great forum and to all of us is highly valued and appreciated, above all by me. Thank you so much. good weekend. Cheers
Reply
Old Apr 15, 2022 | 05:30 PM
  #6
lkchris's Avatar
MBWorld Fanatic!
20 Year Member
Liked
Loved
Community Favorite

Joined: Sep 2005
Posts: 6,191
Likes: 242
From: Albuquerque
'10 CL550, '12 GL550
Just FYI ...

All USA Mercedes come with smoking package.

You can replace the socket next to your ash tray with a socket same as the glove box socket by obtaining the non smoker parts. This also gets a tray to replace the ash receptacle.
Reply
Old Apr 15, 2022 | 05:37 PM
  #7
Oderfla's Avatar
Thread Starter
Member

Joined: Oct 2019
Posts: 95
Likes: 8
mercedes s 500 w221 año 2005
Thanks my friend

thanks for the info. is appreciated. a greeting.
Reply
