2007 Mercedes S600 Serpentine Belt Diagram
VIN WDDNG76X97A114782

I apologize but I have searched for this diagram several places including this forum with nothing I feel good about so I wanted to ask if someone could provide the drawing of this please. Thank you very much.
Reply
0
Old Feb 1, 2025 | 06:55 AM
Share
  #2
Jaap's Avatar
Jaap
Senior Member

Joined: Mar 2018
Posts: 493
Likes: 182
2006 W221 S500L M273

Reply
0
Old Feb 1, 2025 | 02:38 PM
Share
  #3
BOTUS's Avatar
BOTUS
MBWorld Fanatic!
10 Year Member
Community Builder
Community Influencer
Liked

Joined: Aug 2014
Posts: 5,317
Likes: 1,673
S500
why are the number opposite to the arrows... that's a bit strange
Reply
0
Old Feb 1, 2025 | 09:48 PM
Share
  #4
Cwlewis1923's Avatar
Cwlewis1923
Thread Starter
Junior Member

Joined: Nov 2024
Posts: 22
Likes: 0
Originally Posted by Jaap

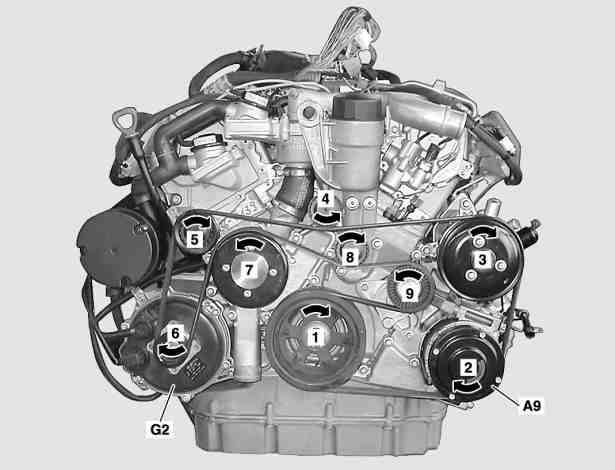

Thank you sir. Where did this diagram come from and where is the best place to find other procedures such as a coolant drain, which also needs to be done?
Reply
0
Old Feb 2, 2025 | 03:23 AM
Share
  #5
Jaap's Avatar
Jaap
Senior Member

Joined: Mar 2018
Posts: 493
Likes: 182
2006 W221 S500L M273
It came from Mercedes WIS.
Reply
0
Old Feb 12, 2025 | 02:01 PM
Share
  #6
07CL550Benz's Avatar
07CL550Benz
Member

Joined: Jan 2019
Posts: 231
Likes: 10
2007 CL550
Just curious if swapping out this belt was difficult? I've been meaning to do it but wasn't sure what to expect, I know space is limited. Was this basically all hands or all tools to reach in there?
Reply
0
Old Feb 12, 2025 | 02:48 PM
Share
  #7
BOTUS's Avatar
BOTUS
MBWorld Fanatic!
10 Year Member
Community Builder
Community Influencer
Liked

Joined: Aug 2014
Posts: 5,317
Likes: 1,673
S500
the belt will probably carry on no issue for 20 years - but the bearings on the idlers and tensioner last about 5 minutes
Reply
1
