SL/R129: 94 sl 500 fuel harness help PLEASE
Thread Starter
Newbie
Joined: Aug 2012
Posts: 5
Likes: 0
From: NJ
1994 sl500 85000 miles and Great car!!!
94 sl 500 fuel harness help PLEASE
I was checking out the wire harness on sl500 1994
I did have the throttlebody replaced ( wires were totaly bare)
While I was checking the fuel harness I checked the wires on the cam (drivers side behind the power steering resivior)When I pulled the wire cover back the wires came out of the plastic fitting :
I am able to repair the plastic with epoxy but the question is it looks like the brown wire is on top but I am not sure.can someone please look or tell me? I see the passenger side brown wire is on the bottom
but I want to be sure. The wires are not cracked or worn all insulation looks good. I did open it in a few places to check and all other wires looks good I just want to be sure of the wires 100% before I epoxy them in place annd ruin a good harness
I did have the throttlebody replaced ( wires were totaly bare)
While I was checking the fuel harness I checked the wires on the cam (drivers side behind the power steering resivior)When I pulled the wire cover back the wires came out of the plastic fitting :
I am able to repair the plastic with epoxy but the question is it looks like the brown wire is on top but I am not sure.can someone please look or tell me? I see the passenger side brown wire is on the bottombut I want to be sure. The wires are not cracked or worn all insulation looks good. I did open it in a few places to check and all other wires looks good I just want to be sure of the wires 100% before I epoxy them in place annd ruin a good harness
Last edited by petee2; Sep 30, 2013 at 03:14 PM.
Super Member
Joined: Aug 2005
Posts: 591
Likes: 9
From: Covington, WA
'96 SL600, '05 S55 AMG, '06 C230
Can you upload a picture of the situation? Your description is a bit confusing and vague. If the problem is what I think your writing, epoxy isn't going to solve it! A picture is worth a thousand words.
Cheers,
Jeff
Cheers,
Jeff
Thread Starter
Newbie
Joined: Aug 2012
Posts: 5
Likes: 0
From: NJ
1994 sl500 85000 miles and Great car!!!
sorry did nnot think of that duh

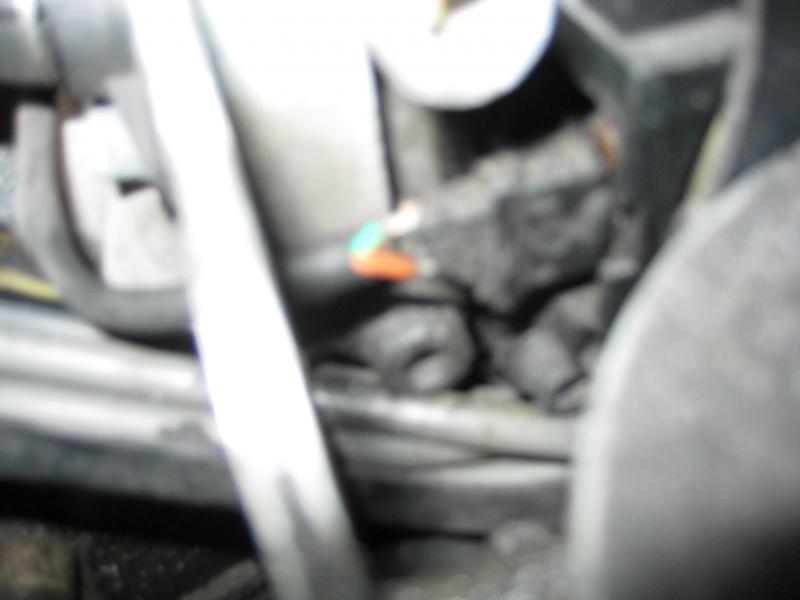

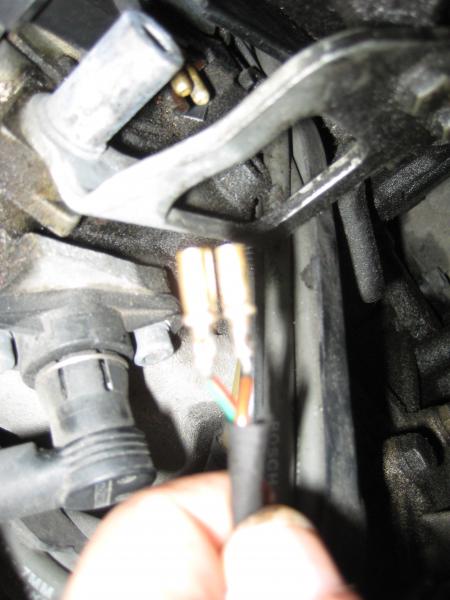

1 wires out

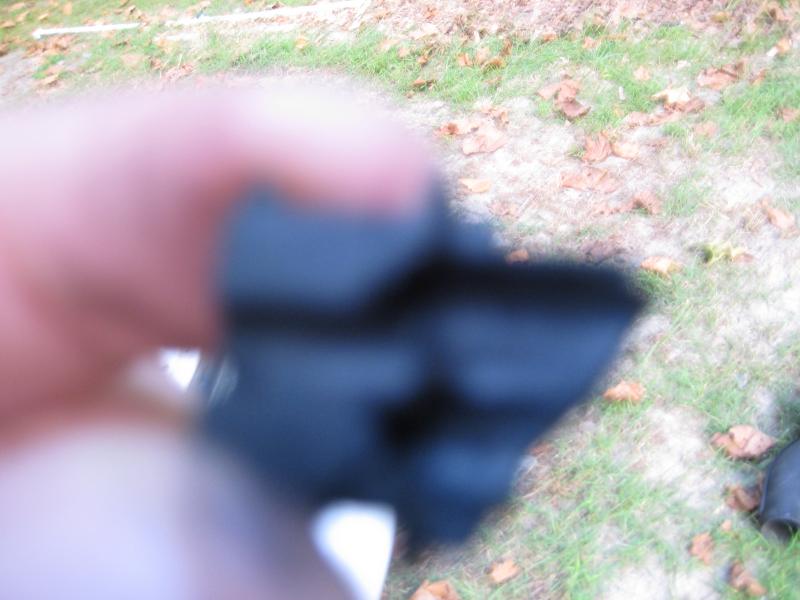

2 plug socket
3 wires out again

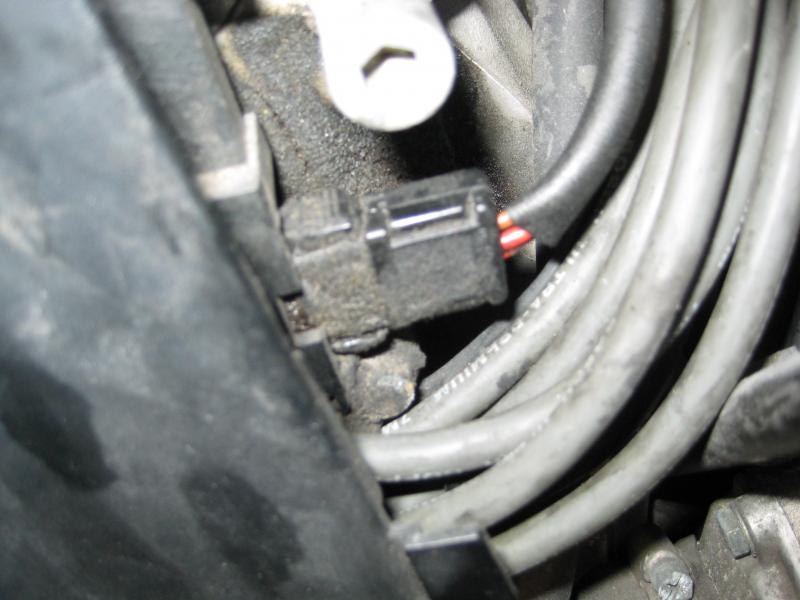

4 driverr side cam plug in place ( wires not cracked or disconected from terninal just the plastic)
5 passenger side cam connection
1 wires out
2 plug socket
3 wires out again
4 driverr side cam plug in place ( wires not cracked or disconected from terninal just the plastic)
5 passenger side cam connection
Last edited by petee2; Sep 30, 2013 at 06:36 PM.
Super Member
Joined: Aug 2005
Posts: 591
Likes: 9
From: Covington, WA
'96 SL600, '05 S55 AMG, '06 C230
OK, good - wasn't what I thought it was. The easiest way to do this is to carefully remove the passenger side plug. The plastic plug housing will have a #1 and a #2 embossed on the housing. Carefully inspect which color wire corresponds to the particular embossed number on the passenger side. Both sides of the engine will have the identical wire color-plug number combination. So you will simply replicate on the driver's side, the same sequence as the passenger side. Whatever embossed number (1 or 2) on the passenger side that has the brown wire (ground) will be the same for the drivers side.
Cheers,
Jeff
Cheers,
Jeff
