Replacing Voltage Regulator (R230 SL)
I have a 2006 SL500 so this question applies to 2003 and newer SL's.
I have spent about 40 minutes trying to find instructions on replacing a voltage regulator on a R230 SL500 with no luck.
Does anyone know what's involved in replacing the voltage regulator on a R230 SL? Does the alternator need to be pulled to replace the regulator? Can it be done from above or below?
Also, when I talked to a Mercedes' Tech he said my problem could be caused by a faulty "charge control unit" which applies power to the battery that is weakest."Does anyone have a clue about this charge control unit?
Thanks in advance.
I have spent about 40 minutes trying to find instructions on replacing a voltage regulator on a R230 SL500 with no luck.
Does anyone know what's involved in replacing the voltage regulator on a R230 SL? Does the alternator need to be pulled to replace the regulator? Can it be done from above or below?
Also, when I talked to a Mercedes' Tech he said my problem could be caused by a faulty "charge control unit" which applies power to the battery that is weakest."Does anyone have a clue about this charge control unit?
Thanks in advance.
Member
Joined: Nov 2024
Posts: 124
Likes: 5
From: Charleston, South Carolina USA
2004 SL500 Aegean Blue Metallic
I looks like this question never got answered. So does the alternator need to be removed to replace the voltage regulator? Mine is a 2004 SL500 if that makes any difference.
Member
Joined: Nov 2024
Posts: 124
Likes: 5
From: Charleston, South Carolina USA
2004 SL500 Aegean Blue Metallic
Thanks for the response. Is that from the top or the bottom or both?
I see some replacement parts listed as just a voltage regulator and I see other ones listed as a 14 V voltage regulator. Is there a difference? Is it strongly recommended to go back to an original Bosch supplied regulator?
I see some replacement parts listed as just a voltage regulator and I see other ones listed as a 14 V voltage regulator. Is there a difference? Is it strongly recommended to go back to an original Bosch supplied regulator?
MBWorld Fanatic!
Joined: Sep 2007
Posts: 1,481
Likes: 310
95 SL600
On other cars like gm and such, the aftermarket would be fine, with this car, I would definitely go with the Bosch. These cars are nonsense with electronics. Make sure you disconnect the back battery first, and then the front one, and reconnect front then the rear
It is all accessed from the bottom.
It is all accessed from the bottom.
Super Member
Joined: Sep 2021
Posts: 534
Likes: 115
From: Ann Arbor, MI
2004 SL600
Originally Posted by hooperdoski;5402016...
Also, when I talked to a Mercedes' Tech he said my problem could be caused by a faulty "charge control unit" which applies power to the battery that is weakest."[color=#1f497d
Also, when I talked to a Mercedes' Tech he said my problem could be caused by a faulty "charge control unit" which applies power to the battery that is weakest."[color=#1f497d
Does anyone have a clue about this charge control unit?
Thanks in advance.
Thanks in advance.

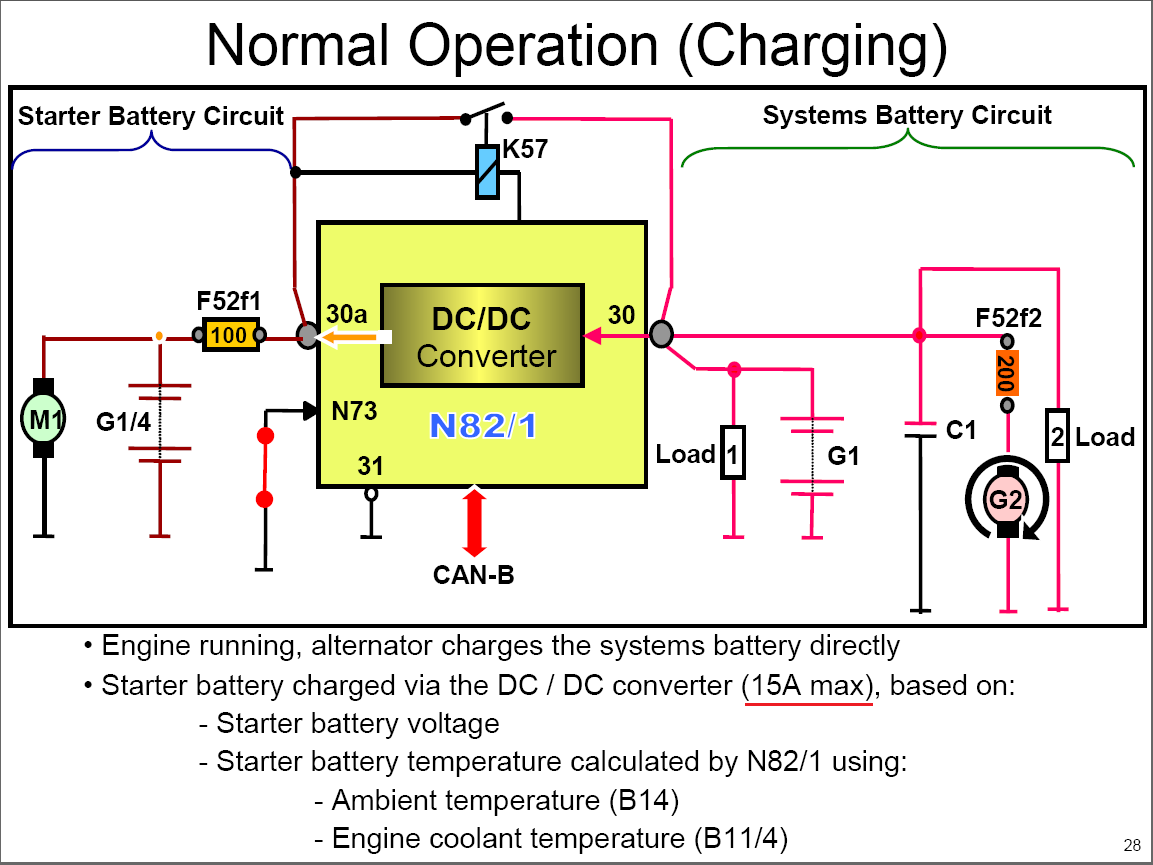

The alternator connects directly to the rear battery. (Through a 200 Amp fuse.) When the Battery Control Module (BCM) detects that the front battery isn't fully charged, it uses its internal DC-to-DC converter to charge the front battery; I think the max front charging current is about 20 Amps or so.
