PSE Pump Filter

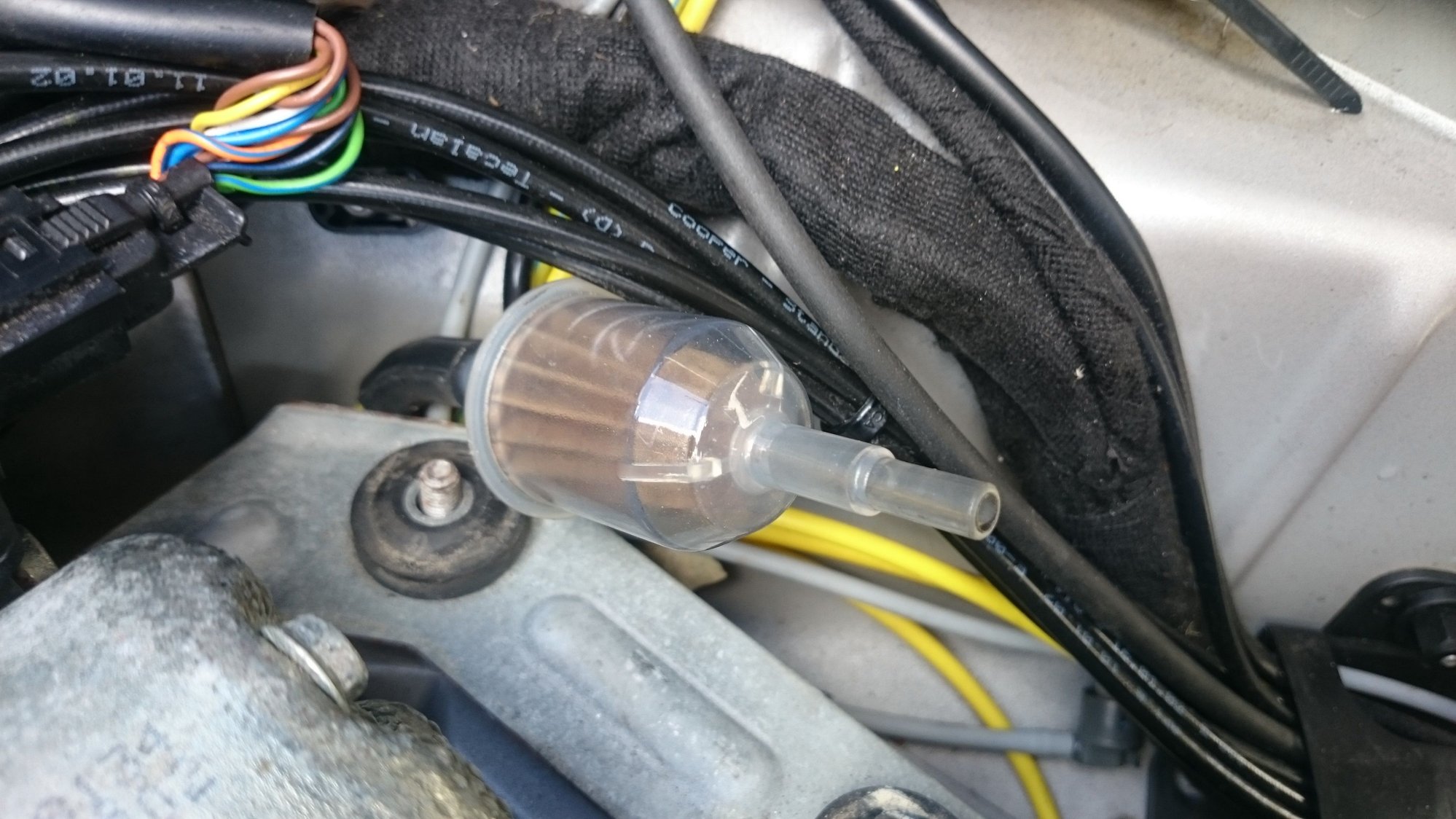

Tube from R230 PSE Pump

Hi Guys, I have taken out my PSE pump for repair. When I took out the pump I seem to have dislodged a "filter" that is located near the pump. I have attached a photo of it below. I have the following questions if you would be so kind:

1. Have I plugged this in the right way round?
2. What does this part do?
3. Should it be connected to a tube at both ends? I cannot find any loose tubes.

Thank you,

Mark

Apr 27, 2015 | 10:22 AM

mercy-me

Senior Member

Joined: Apr 2012

Posts: 432

Likes: 96

From: Just north of Detroit,Michigan

2012 E350 4Matic P2

Mark,

I believe Part #120 in this diagram is your filter.

Hope this helps at least getting it re-installed pointing in the right direction.

Good Luck,

Bob

Attached Files

Central Locking Pneumatic System.pdf (73.3 KB, 877 views)
