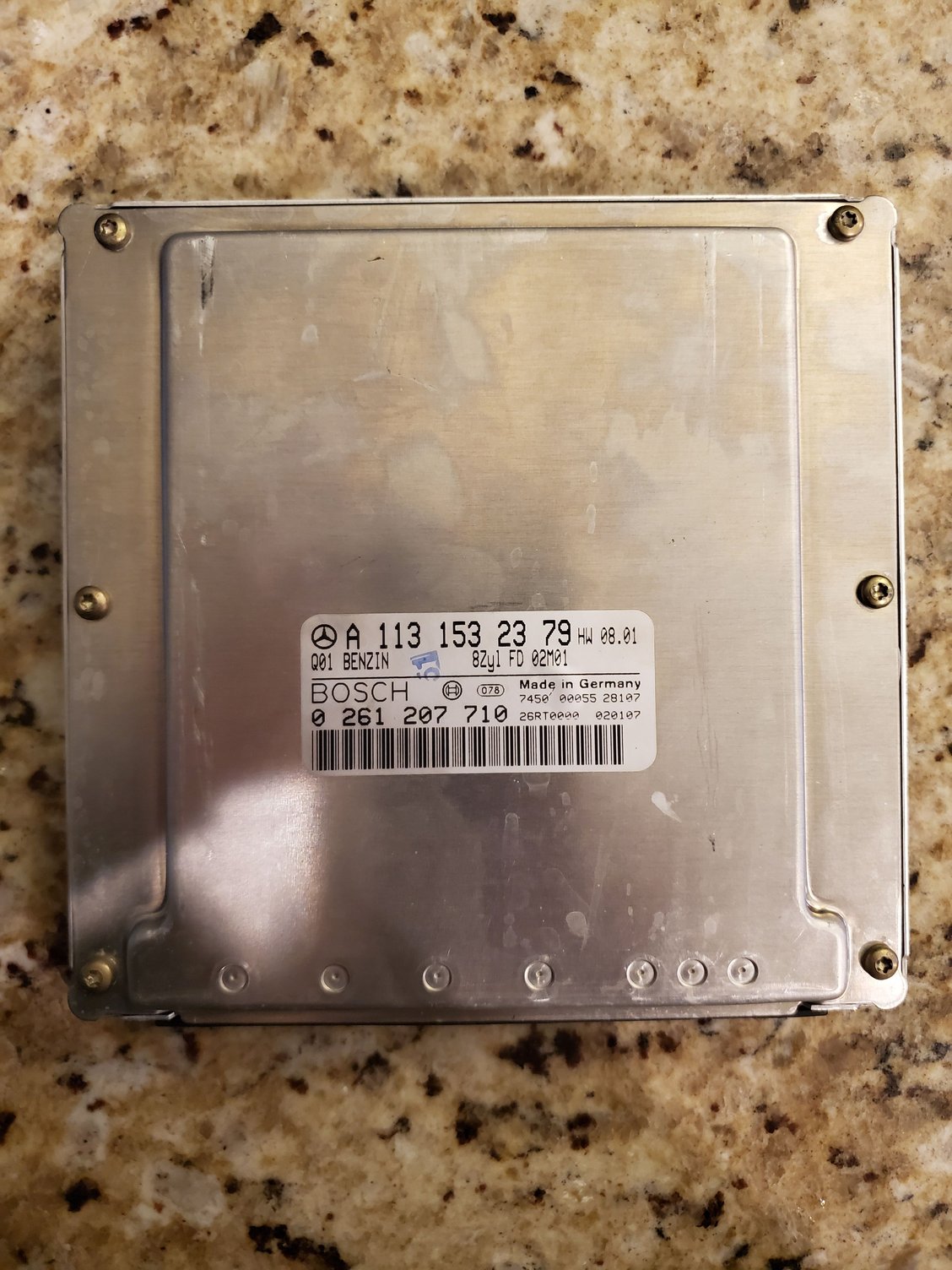

Does anyone have a wiring diagram for the connectors to the ECU or a pinout of the ECU? Thanks!
2003 SL500
Reply
0
Old Nov 28, 2019 | 12:03 PM
Share
  #2
Tj Mitchner's Avatar
Tj Mitchner
Thread Starter
Newbie

Joined: Nov 2019
Posts: 5
Likes: 0
SL500

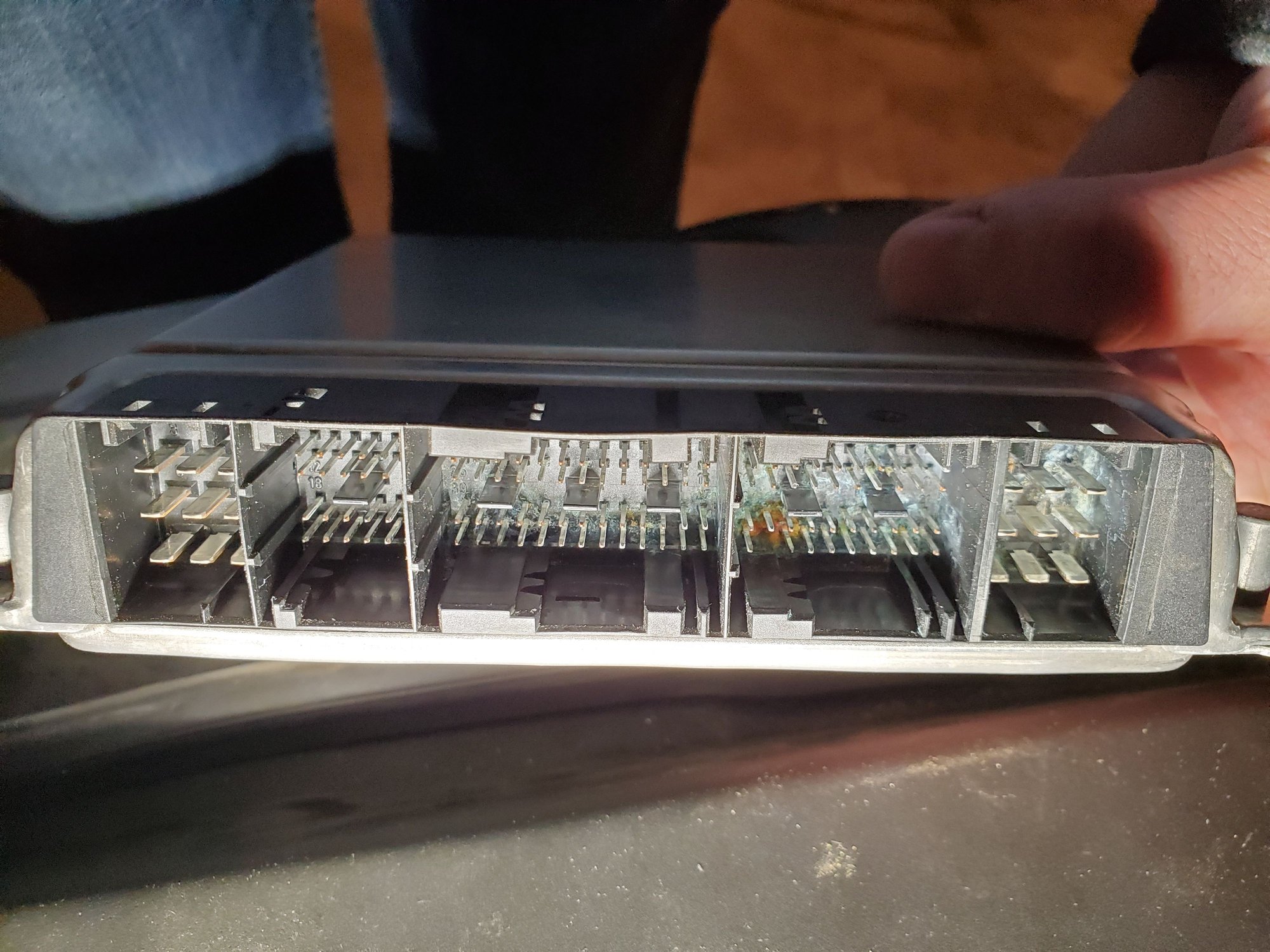

This is the reason I'm asking. I have no STAR software, but curious what this now missing pin this circuit affects.




Reply
0
Old Nov 28, 2019 | 04:36 PM
Share
  #3
Frederick NL's Avatar
Frederick NL
MBWorld Fanatic!
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2018
Posts: 1,442
Likes: 260
From: Netherlands
2005 R 230 SL350 (M112 3.7). Sold the 1966 W113 230SL recently
Would that happen to be the ECU from an SLK?
Reply
0
Old Nov 28, 2019 | 04:44 PM
Share
  #4
Tj Mitchner's Avatar
Tj Mitchner
Thread Starter
Newbie

Joined: Nov 2019
Posts: 5
Likes: 0
SL500
Originally Posted by Frederick NL
Would that happen to be the ECU from an SLK?
No, it's from SL500.
Reply
0
Old Nov 28, 2019 | 05:29 PM
Share
  #5
bobterry99's Avatar
bobterry99
Banned

Joined: Jan 2006
Posts: 1,982
Likes: 393
From: Atlanta, unfortunately
'09 S600, (2) R129 300SLs, '03 SL500, '03 SL55
I think the missing pin is a control signal to the engine cooling fan. If so, then I presume your fan always runs and does so at its highest speed.
Reply
0
Old Nov 28, 2019 | 05:36 PM
Share
  #6
Frederick NL's Avatar
Frederick NL
MBWorld Fanatic!
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2018
Posts: 1,442
Likes: 260
From: Netherlands
2005 R 230 SL350 (M112 3.7). Sold the 1966 W113 230SL recently
Isn’t it frustrating that components seem to be susceptible to penetration of moist. Is a trustable housing and connector really that hard to manufacture...
Reply
0
Old Nov 29, 2019 | 08:12 AM
Share
  #7
Tj Mitchner's Avatar
Tj Mitchner
Thread Starter
Newbie

Joined: Nov 2019
Posts: 5
Likes: 0
SL500
I haven't noticed the fan running on high at all times. I'll have to check to be sure.
Reply
0

Trending Topics

Old Nov 29, 2019 | 09:51 PM
Share
  #8
Hendrik Koster's Avatar
Hendrik Koster
Senior Member
Liked
Loved
Community Favorite
Top Answer: 1

Joined: Aug 2010
Posts: 359
Likes: 291
From: Rockport, TX
2007 S65 AMG-Sold, 2007 SL55 P030 - 2016 GL450 - - 2017 AMG GTS - Sold - 2015 AMG S65
I just worked on CL65 and made these pin outs
Originally Posted by Tj Mitchner
Does anyone have a wiring diagram for the connectors to the ECU or a pinout of the ECU? Thanks!
2003 SL500
These may help









Reply
0
MB World Stories

The Best of Mercedes & AMG

story-0

6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)

 Verdad Gallardo
story-1

Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun

 Verdad Gallardo
story-2

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

 Verdad Gallardo
story-3

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

 Verdad Gallardo
story-4

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

 Verdad Gallardo
story-5

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

 Verdad Gallardo
story-6

Mercedes EQS Gets A Major Update: Everything You Need to Know

 Verdad Gallardo
story-7

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

 Verdad Gallardo
story-8

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

 Verdad Gallardo
story-9

10 Most Reliable Mercedes-Benz Models You Can Buy Used

 Verdad Gallardo
Old Nov 29, 2019 | 10:28 PM
Share
  #9
Tj Mitchner's Avatar
Tj Mitchner
Thread Starter
Newbie

Joined: Nov 2019
Posts: 5
Likes: 0
SL500
Originally Posted by Hendrik Koster
These may help









Thanks for the info. If mine is the same as yours, the pin rusted in two is pin 39 on connector 4. According to this, pins 35-40 are not used. That would be great news! Thanks again!
Reply
0
Old Nov 30, 2019 | 09:34 AM
Share
  #10
bobterry99's Avatar
bobterry99
Banned

Joined: Jan 2006
Posts: 1,982
Likes: 393
From: Atlanta, unfortunately
'09 S600, (2) R129 300SLs, '03 SL500, '03 SL55
Originally Posted by Tj Mitchner
According to this, pins 35-40 are not used.
According to the Electrical Troubleshooting Manual all of those pins are used. The engine couldn't start and run without 35 and 36 which activate the motor starter and fuel pumps, respectively.
