Supercharger Vacuum Line Pic
Thread Starter
Member
Joined: Oct 2018
Posts: 170
Likes: 16
From: San Antonio, TX
2005 E55 AMG
Supercharger Vacuum Line Pic

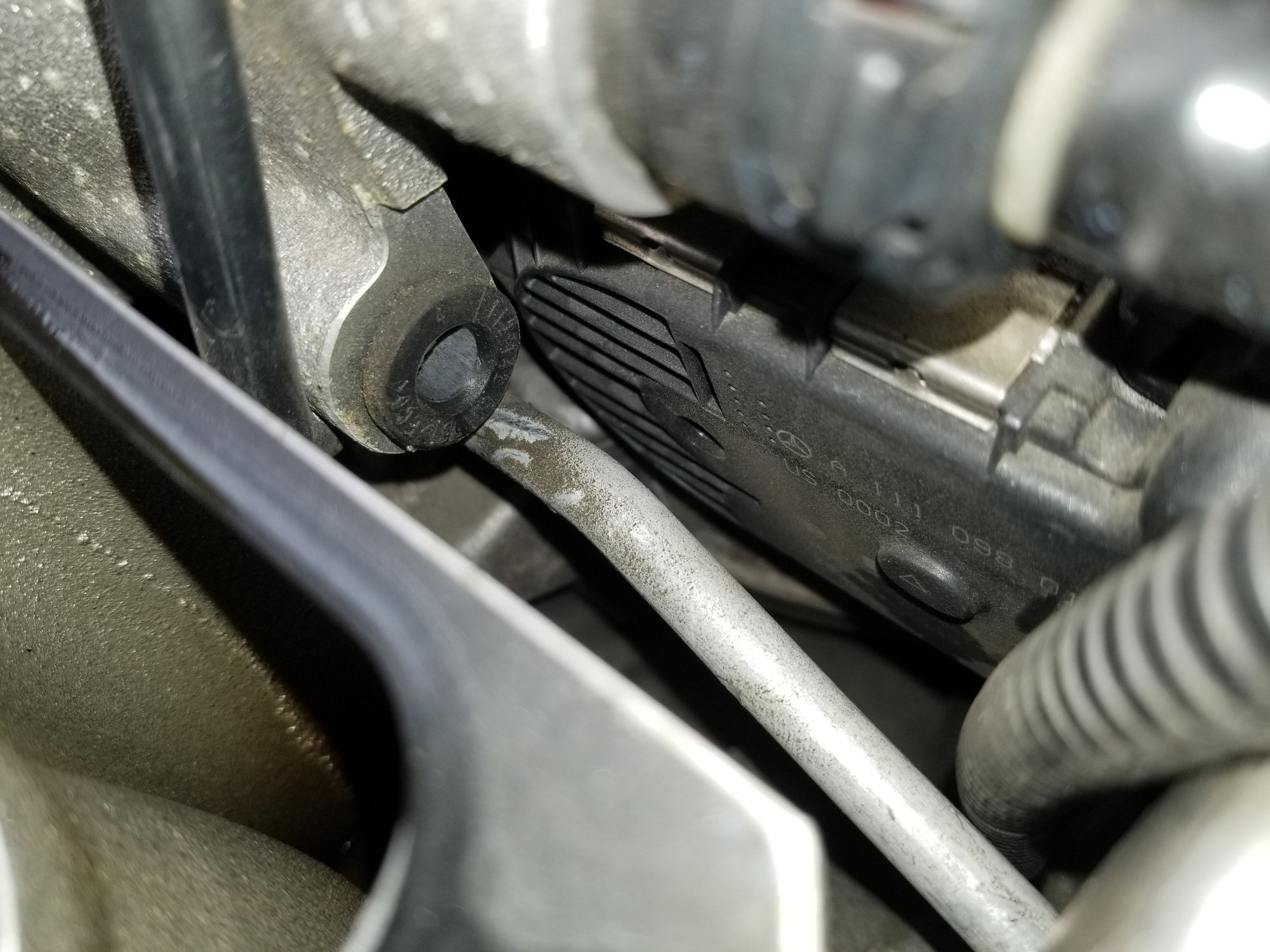

Hey guys, I recently did valve cover gaskets and like many others got a CEL and high idle for a vacuum leak. I went through some threads and they all pointed to the same line, but I felt like the pictures weren’t the best so I wanted to share my picture that shows precisely which line we’re talking about. It’s attached to the upper right VC bolt closest to the firewall, and feels right without you knowing it’s in the SC. I took the driver’s side surge tank off and it made it 10x easier to see and plug the line back in. Good luck to anyone who has the same problem in the future!
Super Member
Joined: Oct 2018
Posts: 699
Likes: 75
From: OC, CA
2006 E55
Funny I did VC gaskets today as well and had the same issue with the breather tube dislodging. Didn’t have to take off surge tank, what I’ve done is climbing/leaning over the engine from passenger side and looking under surge tank there’s a gap you can see the end of the tube and was able to manipulate the tube with your left hand to guide it back into port. Use a flashlight!
Thread Starter
Member
Joined: Oct 2018
Posts: 170
Likes: 16
From: San Antonio, TX
2005 E55 AMG
Funny I did VC gaskets today as well and had the same issue with the breather tube dislodging. Didn’t have to take off surge tank, what I’ve done is climbing/leaning over the engine from passenger side and looking under surge tank there’s a gap you can see the end of the tube and was able to manipulate the tube with your left hand to guide it back into port. Use a flashlight!
MBWorld Fanatic!
Joined: Jan 2014
Posts: 3,969
Likes: 1,317
From: Republic of Texas
'99 and '05 E55 AMG
A picture is worth a thousand words. Jake528, not many W211 E55's running around San Antone. Let me know if you want to meet up sometime. I work on the west side not far from Lackland AFB.
Thread Starter
Member
Joined: Oct 2018
Posts: 170
Likes: 16
From: San Antonio, TX
2005 E55 AMG
Absolutely! You showed me around yours back in September/October last year before I picked mine up. I have refrained from reaching out for too much but I know you’re the guru, especially here! Would love to meet up. My wife and I just welcomed our first baby last week and with a bit of time off I’ve been buttoning up a few things on the car. Need to overhaul control arms and tie rods sometime soon; was hoping to get to 100k first but getting some squeaks and looseness already at 76k. Otherwise everything going great!
MBWorld Fanatic!
Joined: Jan 2014
Posts: 3,969
Likes: 1,317
From: Republic of Texas
'99 and '05 E55 AMG
Absolutely! You showed me around yours back in September/October last year before I picked mine up. I have refrained from reaching out for too much but I know you’re the guru, especially here! Would love to meet up. My wife and I just welcomed our first baby last week and with a bit of time off I’ve been buttoning up a few things on the car. Need to overhaul control arms and tie rods sometime soon; was hoping to get to 100k first but getting some squeaks and looseness already at 76k. Otherwise everything going great!
I'll drop a text in a few weeks so you have time to settle in with the baby. I'm looking forward to seeing your car.
