What are these connectors for

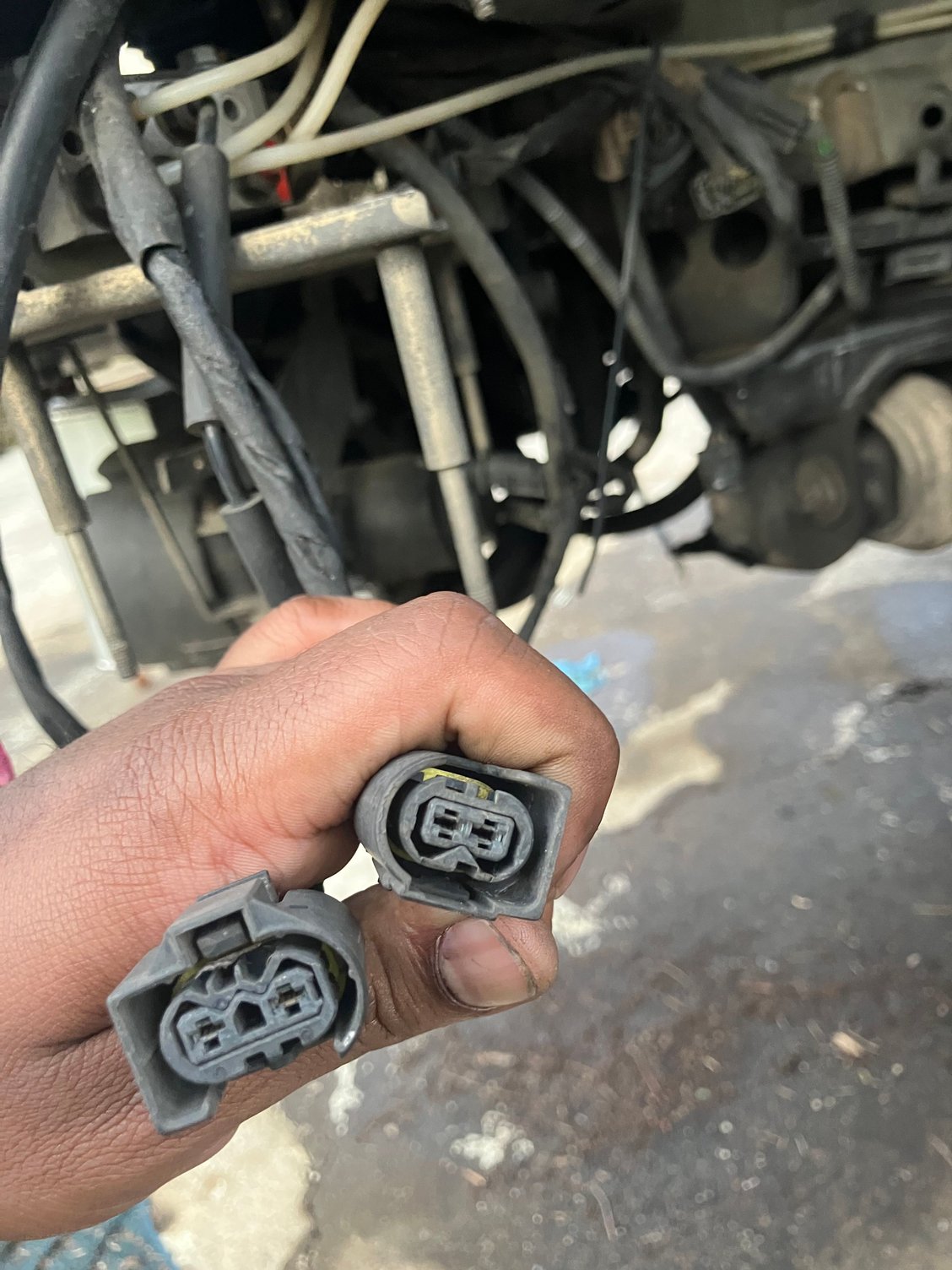

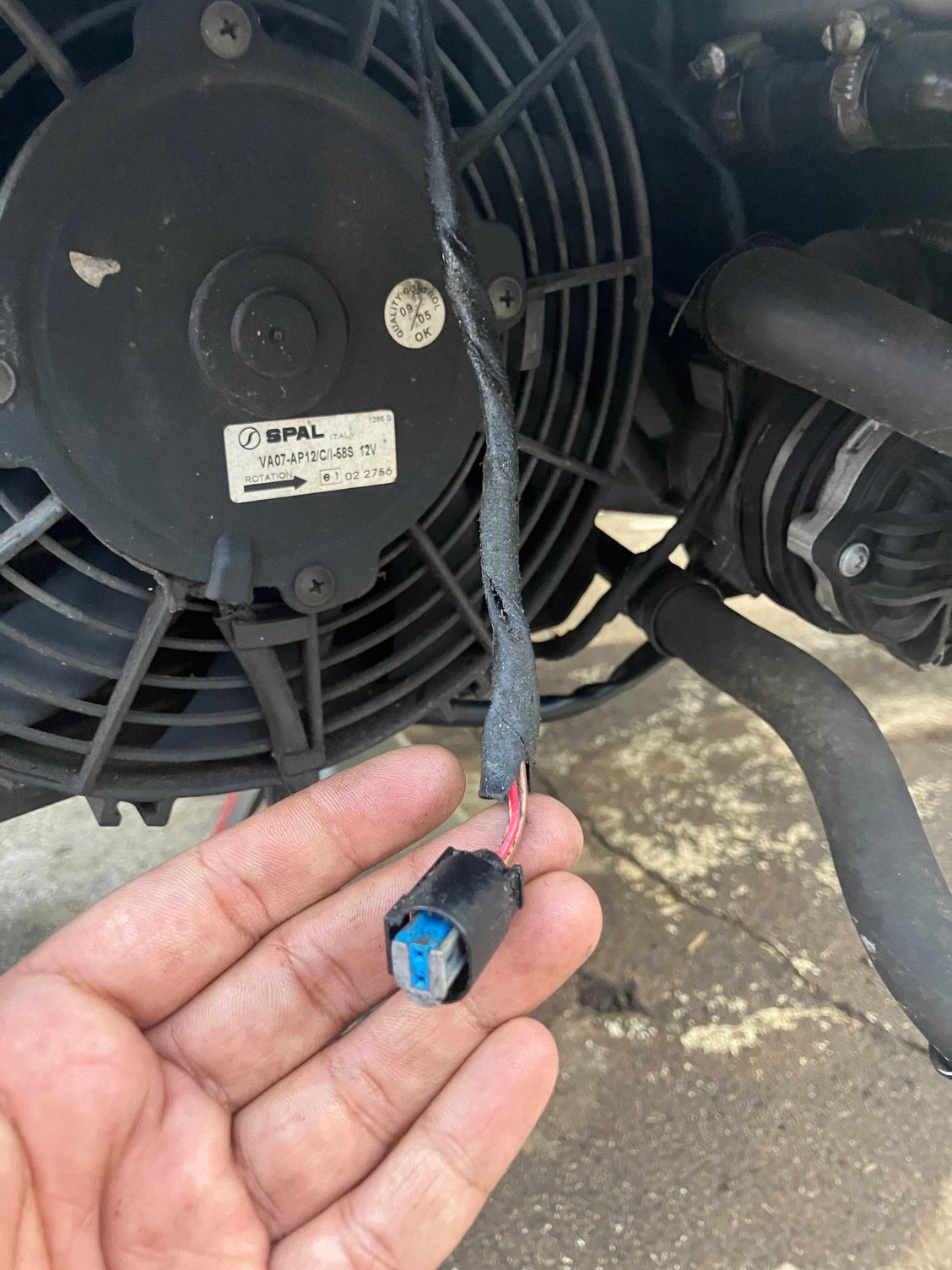

I have three connectors from the bumper area that I need help identifying. First picture is passenger side, second picture is driver side.



Reply
Old Feb 18, 2026 | 09:59 PM
  #2
bbirdwell's Avatar
MBWorld Fanatic!
Veteran: Army
10 Year Member
Liked
Community Favorite

Joined: Jan 2014
Posts: 3,950
Likes: 1,309
From: Republic of Texas
'99 and '05 E55 AMG
Go to nemiga.com and look up the portions of the electrical harness that install in the front of the car. Should also give you an idea to what the connector is for.
Use WIS schematics and the wire color codes on the real world connectors to determine to what they should attach. I would help out but I just got my car back together and I don't intend to take it apart again for awhile...

Connector in first photo looks like a low-power circuit (small connectors, small diameter wire). e.g sensor of some kind
Connectors in second photo look like higher-power circuits (larger connectors, large diameter wire). e.g. motor driven circuit or heating element.
Reply
Old Feb 21, 2026 | 07:11 PM
  #3
GokiePokie's Avatar
Thread Starter
Junior Member

Joined: Jan 2026
Posts: 16
Likes: 3
2006 E55 AMG

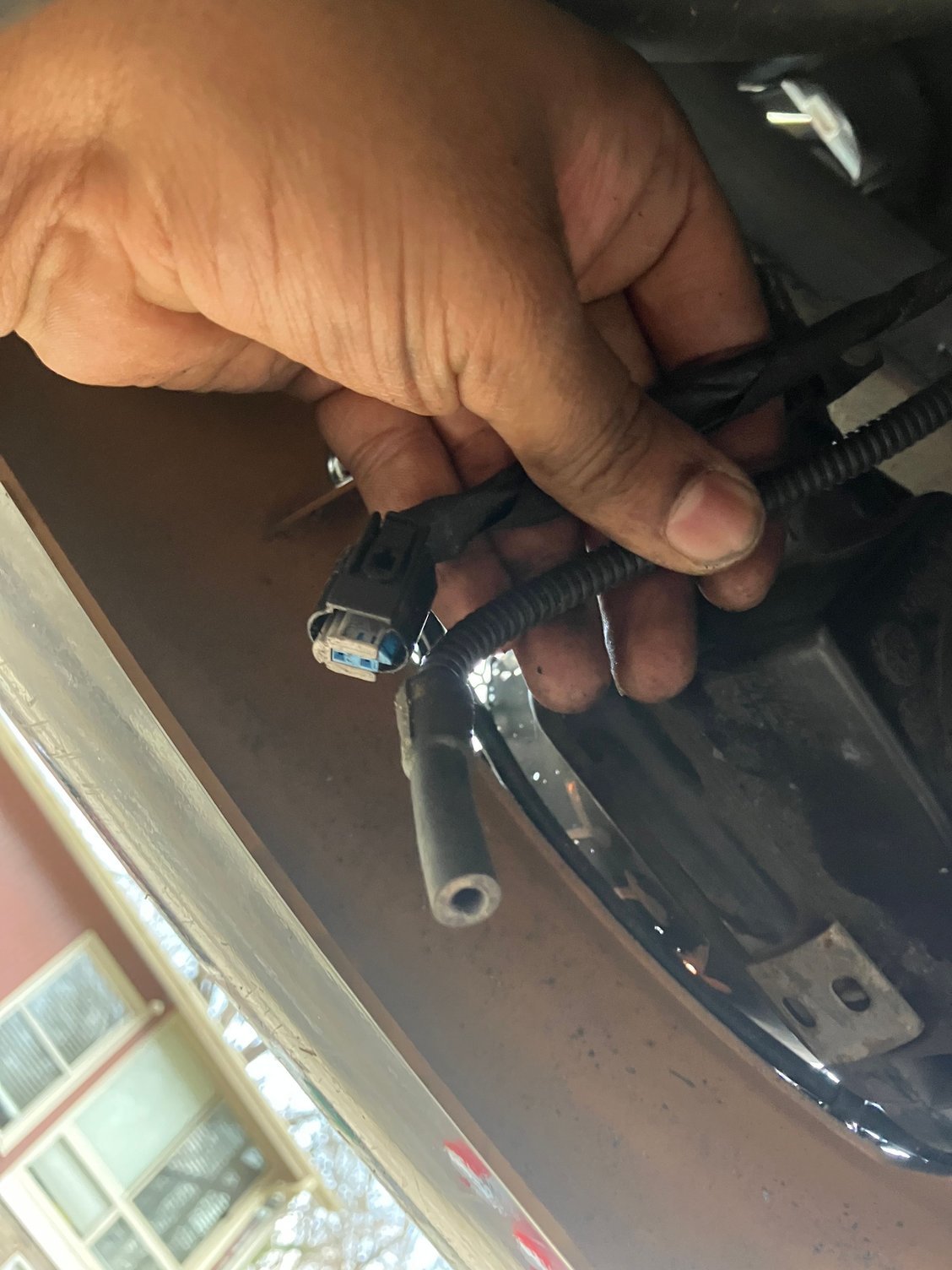

I was fishing around more in the area looking to where it goes and I found this rubber hose thing in the same place. Any ideas?
Reply
Old Feb 23, 2026 | 01:45 PM
  #4
PJmak's Avatar
MBWorld Fanatic!
15 Year Member
Liked
Loved
Community Favorite

Joined: Sep 2007
Posts: 4,565
Likes: 420
05 c55 silver, 98 Imperial Red C43
Looks like ac kompressor for the smaller one. The bigger one is front center bottom next to where the radiator fan plugs in(bottom of ac condenser)?

Last edited by PJmak; Feb 23, 2026 at 01:48 PM.
