FS: McGard Wheel locks 12 x 1.5
Member
Joined: Sep 2008
Posts: 203
Likes: 21
From: North East
04 E500, 00 SL500, 99 SL500, 94 E420, 92 500E, 92 500E, 92 300CE, 06 Lexus GX470

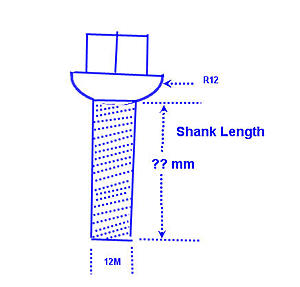

Shank length?
Measured from tip of threads to the base of the Ball seat.
I assume the Ball Seat radius is R12, please verify.
There are 4 measurements for Lug Bolts, Diameter, (12M or 14M), thread pitch, (1.5), Shank length in millimeters, and the radius of the Ball Seat, (R12 or R13, or R14)
Below is the size lug bolts I need, so far you have stated 12M x 1.5, I need the last two measurements. Most likely the Ball Seat Radius is R12, but the Shank length can vary greatly, this length is very important for proper fitment.
12M x 1.5 x 39mm x R12

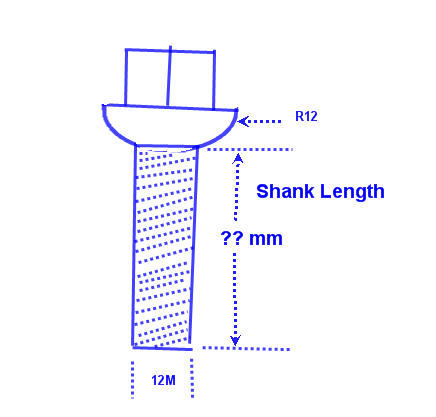

Measured from tip of threads to the base of the Ball seat.
I assume the Ball Seat radius is R12, please verify.
There are 4 measurements for Lug Bolts, Diameter, (12M or 14M), thread pitch, (1.5), Shank length in millimeters, and the radius of the Ball Seat, (R12 or R13, or R14)
Below is the size lug bolts I need, so far you have stated 12M x 1.5, I need the last two measurements. Most likely the Ball Seat Radius is R12, but the Shank length can vary greatly, this length is very important for proper fitment.
12M x 1.5 x 39mm x R12
