Aiming of clear fogs after install on C32
Seems like installing the clear fogs on an 02 C32 should be pretty easy going on the below instructions from another forum, so I am going to have a go this weekend ..... does anyone have any information on how to aim them correctly after installation ? Or any other hints/difficulties with the install ?
Thanks
Steve
raise the car on ramps
remove three screws in fender well
remove three fasteners on bottom/one in fender well
remove plastic cover(located directly under fog light)
unplug light
remove two screws that hold light assembly in place
unit will now lift out
FYI2:the fasteners mentioned above,to remove them you need to pry the center shaft down out of the plug about 1/4 "
this will allow you to grasp this shaft with needle nose pliers and pull straight out
when reinstalling leave shaft out /insert plug/then reinstall the shaft
Thanks
Steve
raise the car on ramps
remove three screws in fender well
remove three fasteners on bottom/one in fender well
remove plastic cover(located directly under fog light)
unplug light
remove two screws that hold light assembly in place
unit will now lift out
FYI2:the fasteners mentioned above,to remove them you need to pry the center shaft down out of the plug about 1/4 "
this will allow you to grasp this shaft with needle nose pliers and pull straight out
when reinstalling leave shaft out /insert plug/then reinstall the shaft
MBWorld Fanatic!
Joined: Feb 2007
Posts: 3,840
Likes: 1
From: MA
E90 M3
Seems like installing the clear fogs on an 02 C32 should be pretty easy going on the below instructions from another forum, so I am going to have a go this weekend ..... does anyone have any information on how to aim them correctly after installation ? Or any other hints/difficulties with the install ?
Thanks
Steve
raise the car on ramps
remove three screws in fender well
remove three fasteners on bottom/one in fender well
remove plastic cover(located directly under fog light)
unplug light
remove two screws that hold light assembly in place
unit will now lift out
FYI2:the fasteners mentioned above,to remove them you need to pry the center shaft down out of the plug about 1/4 "
this will allow you to grasp this shaft with needle nose pliers and pull straight out
when reinstalling leave shaft out /insert plug/then reinstall the shaft
Thanks
Steve
raise the car on ramps
remove three screws in fender well
remove three fasteners on bottom/one in fender well
remove plastic cover(located directly under fog light)
unplug light
remove two screws that hold light assembly in place
unit will now lift out
FYI2:the fasteners mentioned above,to remove them you need to pry the center shaft down out of the plug about 1/4 "
this will allow you to grasp this shaft with needle nose pliers and pull straight out
when reinstalling leave shaft out /insert plug/then reinstall the shaft
Super Member
Joined: Jan 2007
Posts: 974
Likes: 0
From: Boston
2003 C240
Well, I didn't change the housing or lens, but I put different bulbs in, but I'd like to add that its fairly easy to do even though the directions seem kind of difficult...have you checked installuniversity.com? they have, i think, the best instructions on this DIY...
MBWorld Fanatic!
Joined: Feb 2007
Posts: 3,840
Likes: 1
From: MA
E90 M3
Well, I didn't change the housing or lens, but I put different bulbs in, but I'd like to add that its fairly easy to do even though the directions seem kind of difficult...have you checked installuniversity.com? they have, i think, the best instructions on this DIY...
Trending Topics
Out Of Control!!
Joined: Nov 2005
Posts: 18,677
Likes: 9
From: OC
a quarter mile at a time
lol
There is a small hole just to the side of each foglight. You need a long philips head screwdriver that will fit through the metal grates. Turn your fog lights on and aim appropriately. NOW, here's the imporant part. As you're turning the screw, the outside of the fog light housing will not move. The aiming is done by moving the inner housing lens.

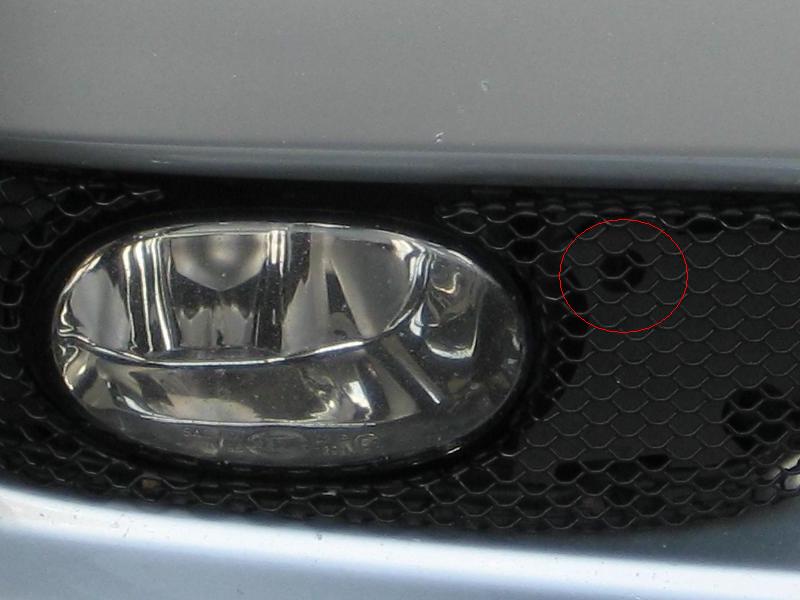

Here is my passenger side fog light, the circled hole is for adjustment.
