C230 Electrical wiring questions

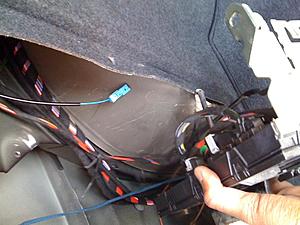

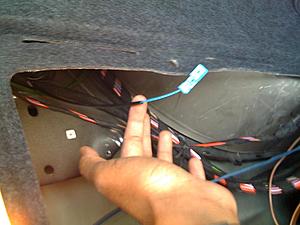

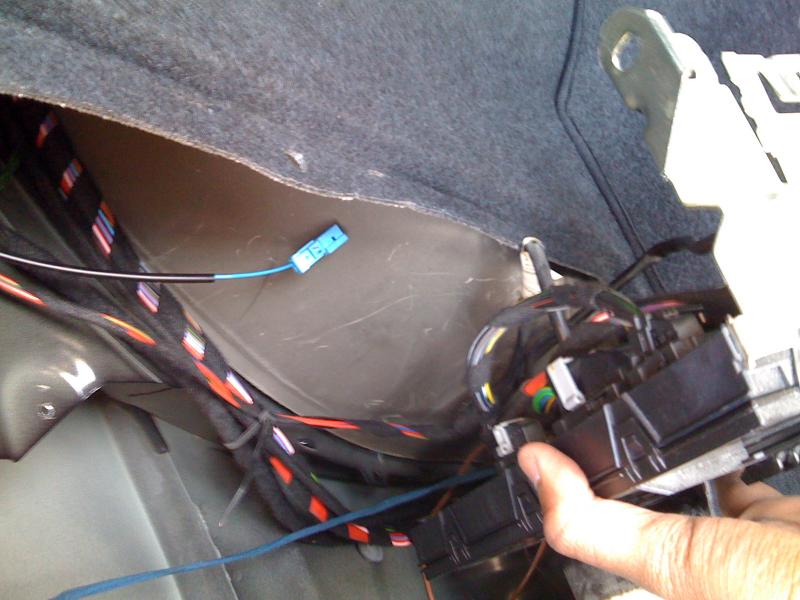

I was doing some cleaning up in the trunk of my coupe and found some wires hanging around. In the trunk right panel, I found three wires. In the left panel, i removed the fuse box and found one blue wire with a plastic connector.
Im worried that the blue wire has somehow got unhooked from the fuse box. Can someone familiar with the electricals on the car please identify that wire so I know if I should try to nsert it back or not.

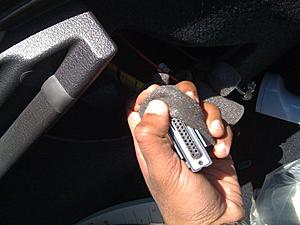

Also, I know that the other three wires have something to do with the Bose sound system or just the MB stock sound system. But can someone please give me a few more details about what exactly these wires are. One is a fibre optic cable, the other is a computer printer type connector and the thirs looks like an antenna connector.
Pics attached.
The help is appreciated guys.
Im worried that the blue wire has somehow got unhooked from the fuse box. Can someone familiar with the electricals on the car please identify that wire so I know if I should try to nsert it back or not.
Also, I know that the other three wires have something to do with the Bose sound system or just the MB stock sound system. But can someone please give me a few more details about what exactly these wires are. One is a fibre optic cable, the other is a computer printer type connector and the thirs looks like an antenna connector.
Pics attached.
The help is appreciated guys.
MBWorld Fanatic!
Joined: Jul 2008
Posts: 8,384
Likes: 800
2019 G70 6MT & 2022 Ford Maverick XL
As you probably know, these cars are pre-wired for lots of things whether they end up having the feature or not. It's my assumption that these wires are part of the pre-wiring for options your car didn't have.
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
You will find many wires & fibre optics going nowhere. It all depends on what options are fitted to the vehicle.
Thread Starter
MBWorld Fanatic!
Joined: May 2009
Posts: 1,101
Likes: 5
From: Toronto, NYC
2002 Mercedes Benz C230 Coupe
Thanks for all your replies guys.
While I know that these wires are probably for options that didnt get fitted into my car, I figured if I know what purpose they were supposed to serve, I could use them for other stuff like my mods.
Which is why I would like to know what exactly these four wires are connected to. Any MB electrical gurus here?
While I know that these wires are probably for options that didnt get fitted into my car, I figured if I know what purpose they were supposed to serve, I could use them for other stuff like my mods.
Which is why I would like to know what exactly these four wires are connected to. Any MB electrical gurus here?
