I drove over a curb, please help.
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
I drove over a curb, please help.
HI guys,
So i accidently drove over a curb trying to avvoid a massive pothle and now the back right wheel sits in on one side like the toe is way in our out.
The wheel sits like this: \\
What damage have i done and what needs to be replaced?
Isn't the Tie rod responsible for how the toe is for that wheel? could the tie rod be bent? could the control arm be bent?
Please help. the car is drivable but i dont want to drive it and possibly cause more damage.
Thanks.
So i accidently drove over a curb trying to avvoid a massive pothle and now the back right wheel sits in on one side like the toe is way in our out.
The wheel sits like this: \\
What damage have i done and what needs to be replaced?
Isn't the Tie rod responsible for how the toe is for that wheel? could the tie rod be bent? could the control arm be bent?
Please help. the car is drivable but i dont want to drive it and possibly cause more damage.
Thanks.
Last edited by benz111; Jun 14, 2010 at 02:24 AM.
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
Hrmm... I took the back wheel off and everything seems fine. Nothing is snapped or broken. Im sure something is bent obviously but im not sure what it could be?
I'l take some pics shortly and upload jsut waiting for the battery to charge on my camera.
I'l take some pics shortly and upload jsut waiting for the battery to charge on my camera.
Last edited by benz111; Jun 14, 2010 at 03:53 AM.
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
Here are some pics:
this is the damages side, as you can see the wheel offset is sticking out on the rear:
http://img25.imageshack.us/img25/9818/p1201489.jpg
Here is nother view:
http://img688.imageshack.us/img688/7560/p1201490.jpg
Here you can see from bird eye view how the wheel stays crooked:
http://img121.imageshack.us/img121/8288/p1201491.jpg
And here you can the the left side which is the normal un-damaged side.
http://img808.imageshack.us/img808/7904/p1201492.jpg
What do you think?
this is the damages side, as you can see the wheel offset is sticking out on the rear:
http://img25.imageshack.us/img25/9818/p1201489.jpg
Here is nother view:
http://img688.imageshack.us/img688/7560/p1201490.jpg
Here you can see from bird eye view how the wheel stays crooked:
http://img121.imageshack.us/img121/8288/p1201491.jpg
And here you can the the left side which is the normal un-damaged side.
http://img808.imageshack.us/img808/7904/p1201492.jpg
What do you think?
MBWorld Fanatic!
Joined: Feb 2009
Posts: 5,054
Likes: 11
From: fort worth, tx
06 C230 SS 6spd

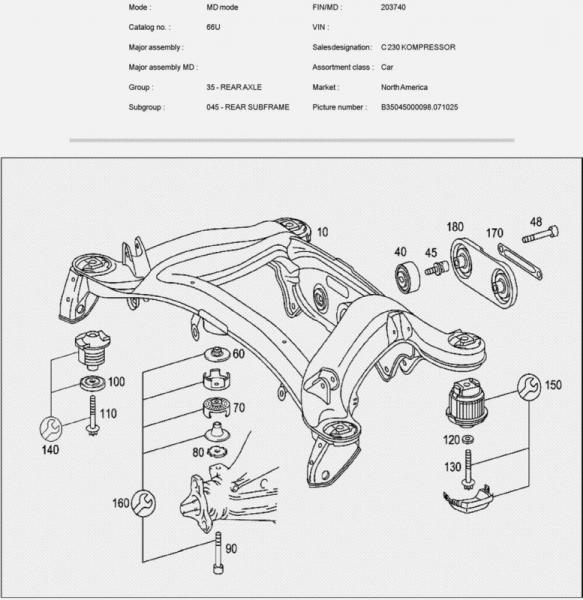

you have any pics of the wheel off so we can see the parts like the control arms, tie rods, sway bar link. You can try to get an alignment to see if they can fix the toe-in. Heres a pic of the rear suspension
Trending Topics
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
Also look to see if any of the mounting points on the rear sub frame are bent.
You really need to get the car onto an alignment rig & have a good look at whats required to get her back to spec.
You really need to get the car onto an alignment rig & have a good look at whats required to get her back to spec.
Last edited by Glyn M Ruck; Jun 14, 2010 at 07:52 AM.
MB World Stories
The Best of Mercedes & AMG
6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)
Verdad Gallardo
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
Thanks for that diagram,
I have taken out what i think is the tie rod, it looks like number 9 in that diagram, now the disc has losened up and i can straighten it back again.
Now does that mean the tie rod is bent? or just dislocted itself?
Im going to take it and compare it with a new tie rod and see if its slighly bent.
It doesnt really look bent from what i can see with my eye.
Is there a special way to bolt the tie rod back in?
Thanks.
I have taken out what i think is the tie rod, it looks like number 9 in that diagram, now the disc has losened up and i can straighten it back again.
Now does that mean the tie rod is bent? or just dislocted itself?
Im going to take it and compare it with a new tie rod and see if its slighly bent.
It doesnt really look bent from what i can see with my eye.
Is there a special way to bolt the tie rod back in?
Thanks.
Super Member
Joined: Apr 2010
Posts: 858
Likes: 0
From: New Joisey
13 Jeep JKU Sahara w/4" lift Kit & the works,2015 Toyota Sienna XLE,2013 Hyundai Sonata Hybrid
it can also be a combination of 2 or more things bent.....remember if in impact multiple components share the impact rather then only one taking the hit..........could be that the sub frame, knuckle and and tie rod all could be off but a small amount........
just my 2cents
just my 2cents
Super Member
Joined: Apr 2010
Posts: 858
Likes: 0
From: New Joisey
13 Jeep JKU Sahara w/4" lift Kit & the works,2015 Toyota Sienna XLE,2013 Hyundai Sonata Hybrid
please post pictures without jacking the car up cause we need to see how it looks when sitting on the ground......from what you have posted it looks like nothing is off.........
if it is just a slight bend then may be an alignment adjustment could take care of it.......but still to be super satisfied as others said take it in for an alignment without telling them any thing and see what they come up with......if you will mention the incident then they will definately come up with major repairs.......
thankx
javvy
if it is just a slight bend then may be an alignment adjustment could take care of it.......but still to be super satisfied as others said take it in for an alignment without telling them any thing and see what they come up with......if you will mention the incident then they will definately come up with major repairs.......
thankx
javvy
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
I will take some pics while its on the ground, but you can still see in the birds eye image that the right side is toed in and the left side is sticking out.
How do they allign the rear? what do they do? What do they adjust?
I deffinatley need to get an allignment as the frint right wheel hit first, the car drives straight but the steering wheel is not centred and sits on an angel when the wheels are straight and also the ESP mesage ahs come on, ive read on other posts that it comes on when the steering wheel isnt centred.
How do they allign the rear? what do they do? What do they adjust?
I deffinatley need to get an allignment as the frint right wheel hit first, the car drives straight but the steering wheel is not centred and sits on an angel when the wheels are straight and also the ESP mesage ahs come on, ive read on other posts that it comes on when the steering wheel isnt centred.
Super Member
Joined: Apr 2010
Posts: 858
Likes: 0
From: New Joisey
13 Jeep JKU Sahara w/4" lift Kit & the works,2015 Toyota Sienna XLE,2013 Hyundai Sonata Hybrid
My guess is you lucked out.........an alignment would fix this easy............I dont know exactly what they tweek but there is a lot of leeway on adjustments that can be made to balance the straightness of all 4 wheels to sit square..........
goodluck.........and please report back you experience...........
goodluck.........and please report back you experience...........
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
Benz have adjustable toe on the rear & ride height pads etc. You need to get the car onto a wheel alignment rig first to see what is out of spec. They will tell you what they can still adjust & what needs to be replaced to get the car in spec. e.g various suspension components that are bent or a new sub frame. On the front you have numerous adjustments plus 3 way bushes and bolts on castor & camber to increase adjustment parameters.
If all this cannot get the car straight within spec then it has a bent body & requires to go onto a chassis alignment rig to have the body realigned.
Good luck!
If all this cannot get the car straight within spec then it has a bent body & requires to go onto a chassis alignment rig to have the body realigned.
Good luck!
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
Thanks for all the replies guys, I am taking it to a suspension specialist tomorrow. He advised that most likely an allignment wil fix it so hopefully its something as small as that.
I will let you know how it goes.
I will let you know how it goes.
Thread Starter
Junior Member
Joined: Nov 2009
Posts: 24
Likes: 0
2002 c230K W203
Just got a call from suspension place.
Diagnosis: Cracked and Bent hub/stub axle.
I found a good condition used hub and having it fitted as we speak. And a 4 wheel allignment and hopefully it should be alright.
Diagnosis: Cracked and Bent hub/stub axle.
I found a good condition used hub and having it fitted as we speak. And a 4 wheel allignment and hopefully it should be alright.
Super Moderator
Joined: Jun 2008
Posts: 19,942
Likes: 192
From: Llandudno, Cape Town, South Africa
late 2009 CLK 350 Coupe Elegance, '65 Jaguar S Type wires
Wow - bent AND cracked stub - you hit hard! - that's dangerous & bearing would have failed shortly. Good you had the pros give it a lookover.
Good luck - hope the rubbers & bushing damped the rest of the knock. We'll see when they align her.
