Glyn M Ruck

10 A 203 780 03 29 FRAME
WITH DRAFT DEFLECTOR [002], [003], [004]
Code: 414
001
10 A 203 780 08 29 FRAME [005], [006], [007]
Code: 414
001
20 A 220 784 00 70 .BAFFLE
DRAFT DEFLECTOR Code: 414
001
30 A 140 782 03 35 .SPRING
AT FRAME; FOR DRAFT DEFLECTOR Code: 414
002
40 A 211 780 00 13 .RAIL
WATER DRAIN Code: 414
001
50 A 210 780 01 12 .ANGLE
LEFT
Replaced_By: A 211 780 01 12
+001 A 211 780 02 12 [008], [009], [010]
Code: 414
001
50 A 211 780 01 12 .ANGLE
LEFT [011], [012], [013]
Code: 414
001
50 A 220 780 02 12 .ANGLE
RIGHT
Replaced_By: A 220 780 00 12
+001 A 211 780 01 12 [008], [009], [010]
Code: 414
001
50 A 220 780 00 12 .ANGLE
RIGHT [011], [012], [013]
Code: 414
001
55 N 000000 0001812 .SCREW
ANGLE TO FRAME
M4X10 Code: 414
002
60 A 000 990 07 29 .SCREW
AT LIFTING ANGLE
4X8 Code: 414
002
70 A 215 782 01 31 .GUIDE
ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, LEFT Code: 414
001
70 A 215 782 02 31 .GUIDE
ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, RIGHT Code: 414
001
80 A 215 780 03 33 .GUIDE
AT LIFTING ANGLE LEFT Code: 414
001
80 A 215 780 04 33 .GUIDE
AT LIFTING ANGLE RIGHT Code: 414
001
90 A 006 990 13 01 .SCREW
AT REINFORCEMENT FRAME
M6X17 Code: 414
012
100 A 203 782 01 97 .PAD
AT FRAME, LEFT
12MM [409]
Code: 414
001
100 A 203 782 02 97 .PAD
AT FRAME,RIGHT
12MM [409]
Code: 414
001
110 A 210 784 04 56 .COVER
LEFT AND RIGHT [409]
Code: 414
002
120 A 000 990 07 29 .SCREW
LEFT AND RIGHT
4X8 Code: 414
004
140 A 203 820 31 42 ELECTRIC MOTOR
ELECTRIC SLIDING/LIFTING ROOF Code: 414
001
150 A 202 782 00 71 SCREW
ELECTRIC SLIDING ROOF MOTOR
M5X16 Code: 414
002
160 A 215 780 05 89 PULL
LEFT Code: 414
001
160 A 215 780 06 89 PULL
RIGHT Code: 414
001
190 N 304017 7006016 SCREW
FRAME TO REINFORCEMENT FRAME
M6X16 Code: 414/962
002
190 N 000000 0004483 SCREW
FRAME TO REINFORCEMENT FRAME Code: 414/962
002
200 A 004 994 14 45 SPRING NUT
FRAME TO REINFORCEMENT FRAME Code: 414/962
002
210 A 124 782 07 96 HOSE
WATER DRAIN IN A-PILLAR, LEFT
1970 MM [409]
Code: 414/962
001
210 A 124 782 07 96 HOSE
WATER DRAIN IN A-PILLAR, RIGHT
1970 MM [409]
Code: 414/962
001
210 A 124 782 07 96 HOSE
WATER DRAIN IN C-PILLAR, LEFT
1970 MM [409]
Code: 414/962
001
210 A 124 782 07 96 HOSE
WATER DRAIN IN C-PILLAR, RIGHT
1970 MM [409]
Code: 414
001
220 A 638 997 18 90 CABLE STRAP HOLDER
FIXTURE HOSE, FOR WHEELHOUSE LINER
5 MM / 3.6 X 200 MM Code: 414
002
240 A 220 782 03 24 RAIL
FRONT Code: 414/962
001
245 A 124 782 06 05 SPACER
RAIL Code: 414/962
002
250 A 220 990 01 36 SCREW
FRONT RAIL
4.2 X 9 Code: 414/962
008
260 A 202 782 01 24 RAIL
LEFT Code: 414/962
001
260 A 202 782 02 24 RAIL
RIGHT Code: 414/962
001
270 A 220 990 01 36 SCREW
RAIL TO LEFT FRAME
4.2 X 9 Code: 414/962
004
270 A 220 990 01 36 SCREW
RAIL TO RIGHT FRAME
4.2 X 9 Code: 414/962
004
280 A 124 782 01 24 RAIL
REAR Code: 414/962
001
285 A 115 784 04 97 PAD
BETWEEN REINFORCEMENT AND ROOF PANELLING Code: 414/962
003
290 N 007337 7003104 RIVET
ATTACHMENT,RAIL Code: 414/962
011
300 A 210 780 02 13 RAIL
BOTTOM FRAME Code: 414/962
001
310 A 140 988 14 78 CLIP
BOTTOM FRAME Code: 414/962
004
320 A 202 899 01 80 KEY
EMERGENCY CONTROL Code: 413/414
001

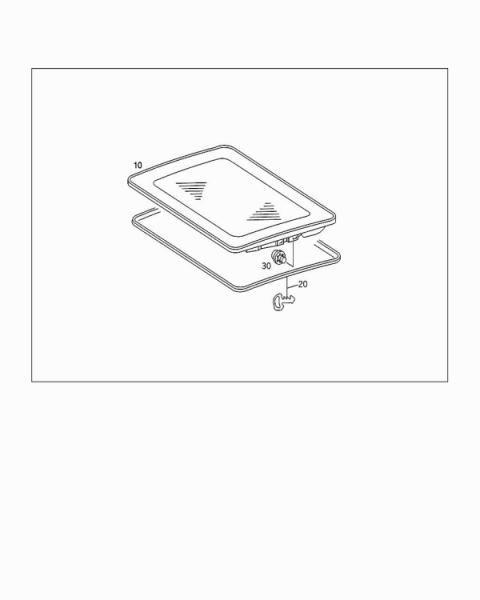

10 A 203 780 00 21 COVER [014], [015], [016]
Code: 414
001
10 A 211 780 09 21 COVER [017], [018], [019]
Code: 414
001
20 A 124 780 02 98 SEAL
FOR COVER Code: 414/962
001
30 A 000 984 40 29 SCREW
FOR COVER
M5X10 Code: 414
006

Glyn M Ruck

10 A 203 460 11 00 STEERING BOX ASSEMBLY
RACK-AND-PINION STEERING [002], [003], [697]
001 L
10 A 203 460 33 00 STEERING BOX ASSEMBLY
RACK-AND-PINION STEERING [004], [005], [697]
001 L
10 A 203 460 13 00 STEERING BOX ASSEMBLY [002], [003], [697]
Code: 213
001 L
10 A 203 460 35 00 STEERING BOX ASSEMBLY [004], [005], [697]
Code: 213
001 L
10 A 203 460 13 00 STEERING BOX ASSEMBLY [002], [003], [697]
Code: 213+494
001 L
10 A 203 460 35 00 STEERING BOX ASSEMBLY
Replaced_By: A 203 460 52 00 [004], [005], [697]
Code: 213+494
001 L
10 A 203 460 52 00 STEERING BOX ASSEMBLY
RACK-AND-PINION STEERING [004], [005], [697]
Code: 213+494
001 L
10 A 203 460 53 00 STEERING BOX ASSEMBLY
RACK-AND-PINION STEERING [006], [007], [697]
Code: 494+807
001 L
10 A 203 460 53 00 STEERING BOX ASSEMBLY
RACK-AND-PINION STEERING [006], [007], [697]
Code: 460+807
001 L
10 A 203 460 12 00 STEERING BOX ASSEMBLY
Replaced_By: A 203 460 25 00 [697]
001 R
10 A 203 460 25 00 STEERING BOX ASSEMBLY [003], [008], [697]
001 R
10 A 203 460 34 00 STEERING BOX ASSEMBLY [005], [009], [697]
001 R
10 A 203 460 14 00 STEERING BOX ASSEMBLY
Replaced_By: A 203 460 27 00 [697]
Code: 213
001 R
10 A 203 460 27 00 STEERING BOX ASSEMBLY [003], [008], [697]
Code: 213
001 R
10 A 203 460 36 00 STEERING BOX ASSEMBLY [005], [009], [697]
Code: 213
001 R
20 A 203 463 02 96 .BOOT
STEERING [010], [011], [012]
002
20 A 171 463 00 96 .BOOT
STEERING [013], [014], [015]
002
30 A 210 463 08 17 .CLAMP
OUTSIDE LEFT AND RIGHT
15.2-18.5 MM 002
40 A 210 463 07 17 .CLAMP
INSIDE LEFT AND RIGHT
68 MM 002
50 A 021 997 41 48 .SEALING RING
BOOT TO STEERING 002
55 A 203 460 00 64 .PROTECTIVE CAP 001 L
55 A 203 460 01 64 .PROTECTIVE CAP 001 R
60 A 203 333 05 14 .BEARING
LEFT AND RIGHT 004
70 A 203 330 19 03 .TIE ROD
OUTSIDE LEFT
Replaced_By: A 203 330 39 03 001
70 A 203 330 39 03 .TIE ROD
OUTSIDE LEFT 001
70 A 203 330 20 03 .TIE ROD
OUTSIDE RIGHT
Replaced_By: A 203 330 40 03 001
70 A 203 330 40 03 .TIE ROD
OUTSIDE RIGHT 001
80 A 230 338 00 15 .TIE ROD
INSIDE LEFT AND RIGHT 002
90 N 308673 3014001 .NUT
LEFT AND RIGHT
M14X1.5 002
100 N 000000 0003281 NUT
TIE ROD TO STEERING KNUCKLE 002
110 A 203 460 42 00 REPAIR KIT
LAMP UNIT FRAME AT FRONT MODULE,AT TOP 001
140 A 203 462 04 78 COUPLING COLLAR
STEERING TO CROSS MEMBER 001 L
140 A 203 462 04 78 COUPLING COLLAR
STEERING TO CROSS MEMBER 001 R
150 A 140 990 09 58 NUT
TO BOTTOM COUPLING SLEEVE
M8 [016]
001
160 N 910105 5008014 SCREW
TO BOTTOM COUPLING SLEEVE
M8X35 001
170 A 140 990 09 58 NUT
STEERING COUPLING TO STEERING SHAFT
M8 001
180 A 210 990 06 04 SCREW
STEERING COUPLING TO STEERING GEAR
M8X39 001
180 A 210 990 06 04 SCREW
STEERING COUPLING TO STEERING SHAFT
M8X39 001
200 A 211 460 08 84 VALVE
REPAIR KIT Code: 213
001
210 A 203 460 23 00 BOOT
REPAIR KIT 002
250 A 203 628 00 11 PLATE
STEERING TO CROSS MEMBER
Replaced_By: A 203 460 03 28 001
250 A 203 460 03 28 PLATE
STEERING TO CROSS MEMBER
Replaced_By: A 203 628 01 11 001
250 A 203 628 01 11 PLATE
STEERING TO CROSS MEMBER 001
260 N 910105 5012017 SCREW
STEERING TO CROSS MEMBER
M12X1.5X70 004



5 A 203 460 14 16 STEER. COLUMN JACKET TUBE
Replaced_By: A 203 460 30 16 001 L
5 A 203 460 30 16 STEER. COLUMN JACKET TUBE [037], [038]
001 L
5 A 209 460 15 16 STEER. COLUMN JACKET TUBE [039], [040]
001 L
5 A 203 460 15 16 STEER. COLUMN JACKET TUBE
Replaced_By: A 203 460 31 16 001 R
5 A 203 460 31 16 STEER. COLUMN JACKET TUBE [037], [038], [041]
001 R
5 A 209 460 16 16 STEER. COLUMN JACKET TUBE [039], [040], [042]
001 R
5 A 203 460 16 16 STEER. COLUMN JACKET TUBE
Replaced_By: A 203 460 34 16 Code: 494
001
5 A 203 460 32 16 STEER. COLUMN JACKET TUBE
Replaced_By: A 203 460 16 16 Code: 494
001
5 A 203 460 34 16 STEER. COLUMN JACKET TUBE [043], [044], [045]
Code: 494
001
5 A 209 460 17 16 STEER. COLUMN JACKET TUBE [046], [047], [048], [037], [038]
Code: 494+803
001
000
5 A 209 460 17 16 STEER. COLUMN JACKET TUBE [039], [040], [042], [049], [050]
Code: 494
001
000
5 A 209 460 15 16 STEER. COLUMN JACKET TUBE [052], [053]
Code: 494+805
001 L
10 A 203 460 12 16 .STEER. COLUMN JACKET TUBE [417]
Code: -275
001
10 A 203 460 08 16 .STEER. COLUMN JACKET TUBE [417]
Code: 494
001
20 A 203 462 00 25 .BALL GUIDE Code: -275
001
20 A 203 462 01 25 .BALL GUIDE Code: -275-805+494
001
30 A 001 994 14 45 .FUSE
JACKET TUBE WIRING HARNESS FASTENING Code: -275
003
40 A 203 462 00 11 .SPRING
STEERING COLUMN JACKET TUBE ADJUSTMENT Code: -275
001
100 A 000 540 75 05 .WIRING HARNESS
STEERING COLUMN JACKET TUBE ADJUSTMENT [043], [044], [045]
Code: -275-803+494
001
180 A 203 460 02 09 .STEERING SHAFT
STEER. COLUMN JACKET TUBE [417]
001
260 A 002 990 60 12 .SCREW
LOWER STEERING SHAFT TO UPPER STEERING SHAFT 001
100 A 000 540 90 05 .WIRING HARNESS
STEERING COLUMN JACKET TUBE ADJUSTMENT [054], [055], [056]
Code: -275-805+494
001
270 A 203 462 02 96 BOOT
STEER. COLUMN JACKET TUBE 001
280 N 910105 5008014 SCREW
STEERING COUPLING TO STEERING SHAFT AND TO STEERING
M8X35 001
300 A 352 990 46 01 SCREW
STEERING COLUMN JACKET TUBE TO BODY
M8X45 003
305 A 001 990 84 91 NUT RETAINER
STEERING COLUMN JACKET TUBE TO BODY 001

jcnash

Thanks very much Glyn.

These were exactly the pictures I was looking for. Now the fun begins in trying to identify the broken parts and replacing them...

Tags for search:
pano roof
sun roof
coupe
panoroof
sunroof
steering rack
steering box
steering column
jacket tube

Midnight Koop

great reference!

out of curiosity... since it seems to be allowed to make parts/diagrams requests... i wonder if its possible to set up a database where we can all access this info at will?

I'm not sure if this forum has the capabilities, but other sites do.

for example... if all this info is on a disc and could be uploaded to a folder... then we set up a (free) shared dropbox account, we could all access the shared folder. and this could be setup as invite only or public.

would this be against mbworld.org's policies?

Glyn M Ruck

Johnand & I are in the process of developing a Wiki. We are running it already in development mode in the background. It's not ready for launch. We will address copyright issues etc.

Midnight Koop

godbless.... thats perfect

jcnash

Finally got my coupe pano-roof fixed....all thanks to Glyn's pics. The roof was broken when I bought the car 2 years ago. So needless to say, Ive been driving around everywhere, day or night, rain or shine with the roof fully open. LOL.

Glyn M Ruck

Pleased it's fixed.
