Seal Rings for coolant line from Alternator(water cooled) to engine Head
Good day All
I hope someone can help me, Im looking for seal rings/O-rings for my W203 C220 CDI. These seals are used on the coolant line from the engine head to the alternator(water cooled alternator). No where in SA it was available.
I will attach some images of these seals and a schematic drawings where these seals are being used.

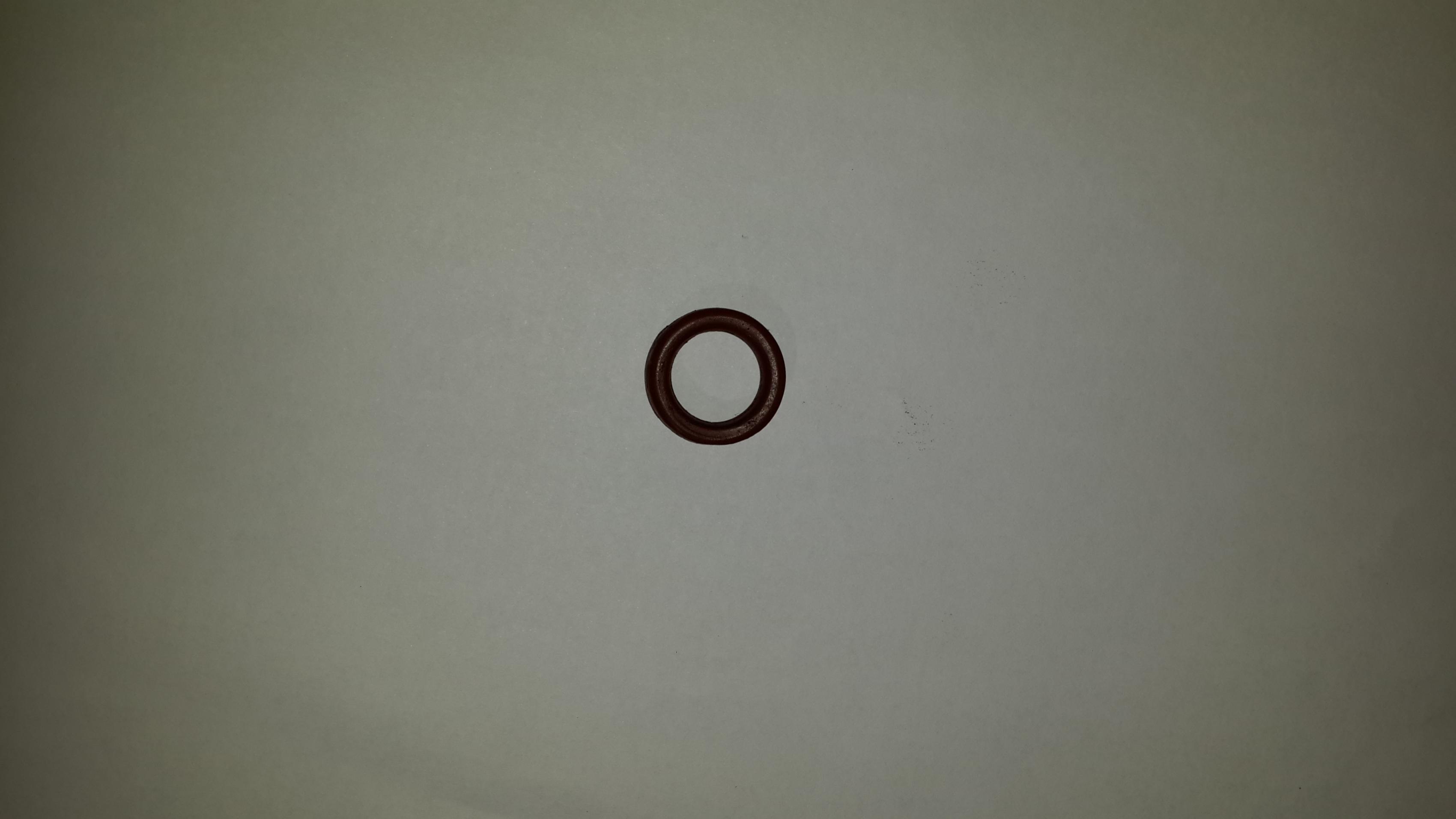

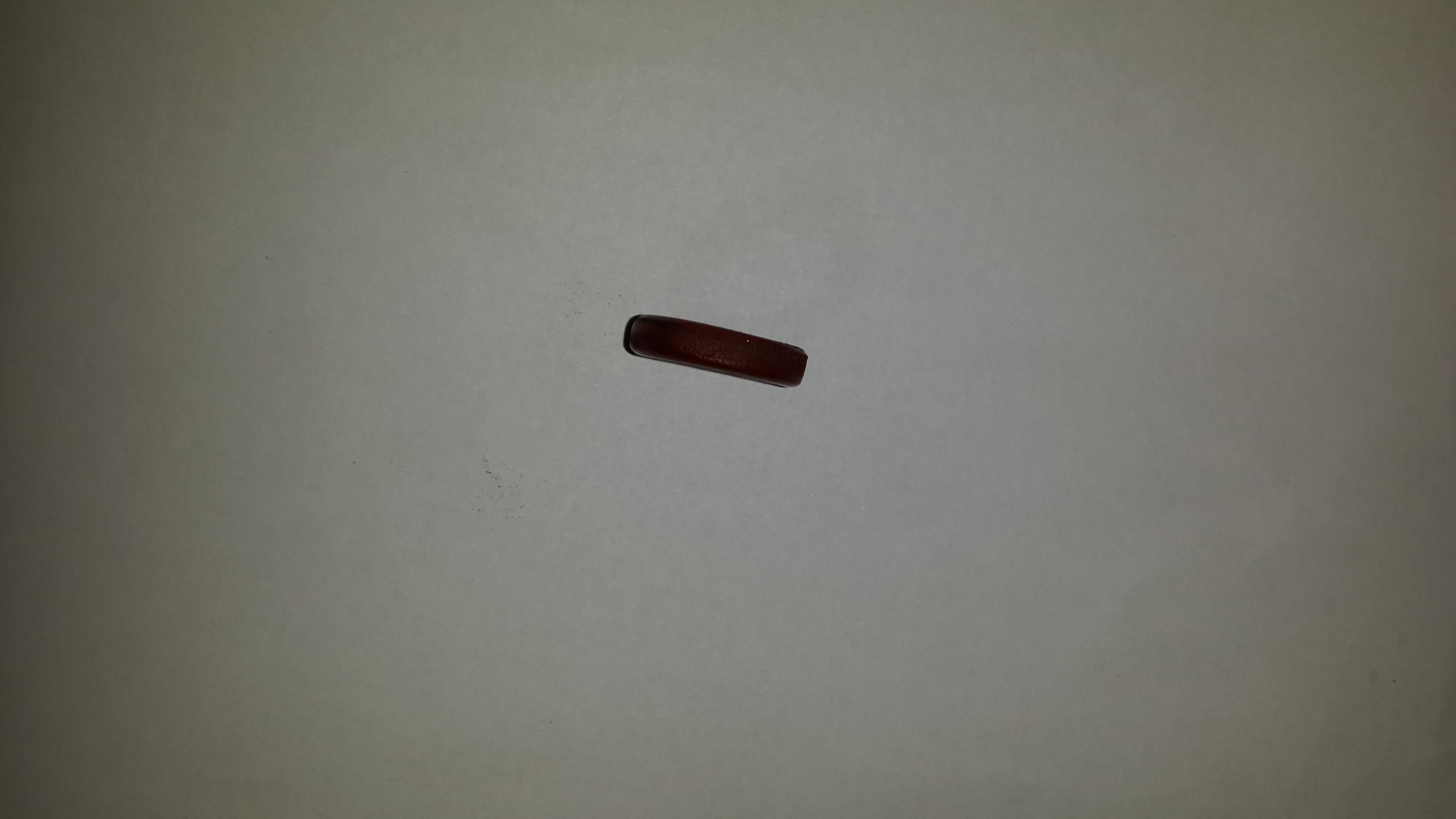

SEAL INFO
Red in coulor
Outside diameter 18.5mm
Inside diameter 12mm
Wall thickness 3.25mm
I also believe that due to the composite,this is a type of silicon seal.

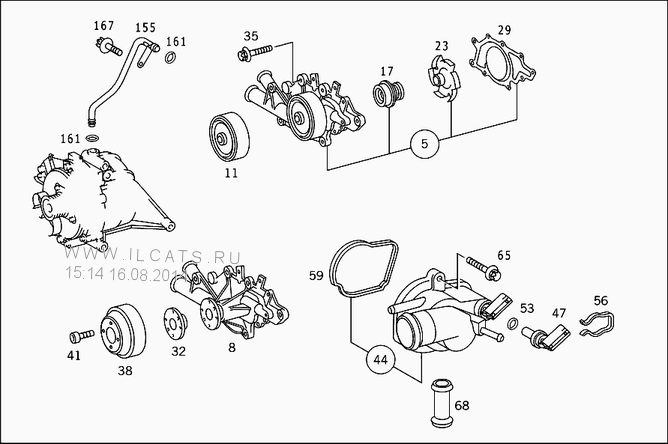

On the schematic drawing the LINE numbered 155 is the coolant line to the alternator from the engine head and the seals numbered 161 is what im searching for.
At the moment im using vicon seals which the wall thickness is a little bit smaller.
Reagrds
