Installed Parking Sensors....OEM style - not bad for $ 20.00
#1
Super Member
Thread Starter
Join Date: May 2005
Posts: 528
Likes: 0
Received 5 Likes
on
4 Posts
E500 4matic, 2014 GL320, 2013 C300, 2015 Stingray
Installed Parking Sensors....OEM style - not bad for $ 20.00
So I bought a 2013 C300 for my daughter. While it has a backup camera, i still wanted som audible alert and decided to install the parking sensors in the rear.
Here's a pic of the system i bought from ebay, shipped from China for $ 20.00, came with everything pictured here, and 4 sensors. Make sure you get the system which mentions OEM sensor in the description.
First thing i had to do was get the sensors painted, they were black, so my buddy at my body shop did them for me. Then the install
1) Remove bumper. Basically 4 torx nuts on bottom of bumper, 2 bolts in rear, and 1 bolt per side. Also had to remove 2 trim fasteners on the inside of the rear tire wells. If you google C300 bumper removal, there are quite a few videos on youtube - really not that hard.
2) drill out the sensor holes (4 sensors are pre-marked on the rear of the bumper from the factory). Here's where i screwed up. The bit that came withe the kit is good, BUT - i put it directly into my drill (if i used an extension it would of kept the drill away from the bumper), and when i drilled through the bumper, my momentum pushed the drill into the bumper, and even though i had tape on the bumper - i damaged the paint around one senors. Anyway - if you do this - put a good thick (multiple layers) of tape so you don't scratch anything up, and use a drill extension.
3) Clean the inside of the sensor hole area thoroughly with a degreaser, and install the sensors (disregard the middle sensor arrow - that doesn't belong, the left arrow shows you the sensor) with the supplied adhesive double sided tape.
4) Run all the cables to the passenger side vent area (see arrow). Some folks go through a grommet there on the right, but since that grommet is behind a wiring block, i chose to go through this vent. There are cloth flaps on it so when you see it you're realize its very easy to go through.
5) Splice the power for the module to pin 8 on the rear passenger light harness (grey/yellow wire), connect the black to ground (there are a ton of ground connections in that rear area).
6) Run the speaker/display to the rear parcel area, and your done!
Any questions let me know - i liked this particular kit because it does look just like OEM. So far, after some testing, it does give a good audible warning as well as the camera so i'm happy with it. I may do this on the front bumper with a manual on/off switch for when you pull up close to a curb.
Aceman
Here's a pic of the system i bought from ebay, shipped from China for $ 20.00, came with everything pictured here, and 4 sensors. Make sure you get the system which mentions OEM sensor in the description.
First thing i had to do was get the sensors painted, they were black, so my buddy at my body shop did them for me. Then the install
1) Remove bumper. Basically 4 torx nuts on bottom of bumper, 2 bolts in rear, and 1 bolt per side. Also had to remove 2 trim fasteners on the inside of the rear tire wells. If you google C300 bumper removal, there are quite a few videos on youtube - really not that hard.
2) drill out the sensor holes (4 sensors are pre-marked on the rear of the bumper from the factory). Here's where i screwed up. The bit that came withe the kit is good, BUT - i put it directly into my drill (if i used an extension it would of kept the drill away from the bumper), and when i drilled through the bumper, my momentum pushed the drill into the bumper, and even though i had tape on the bumper - i damaged the paint around one senors. Anyway - if you do this - put a good thick (multiple layers) of tape so you don't scratch anything up, and use a drill extension.
3) Clean the inside of the sensor hole area thoroughly with a degreaser, and install the sensors (disregard the middle sensor arrow - that doesn't belong, the left arrow shows you the sensor) with the supplied adhesive double sided tape.

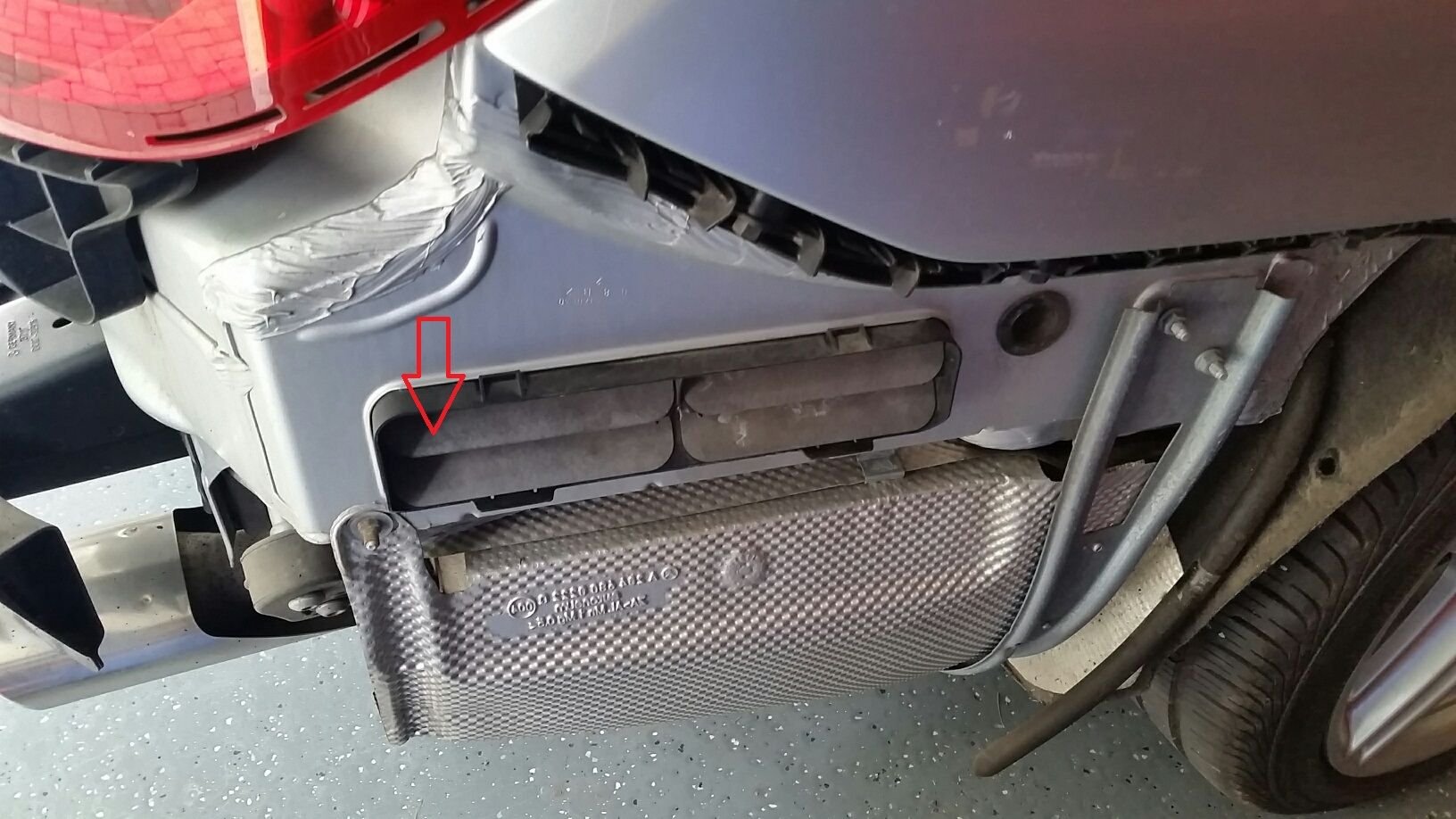

4) Run all the cables to the passenger side vent area (see arrow). Some folks go through a grommet there on the right, but since that grommet is behind a wiring block, i chose to go through this vent. There are cloth flaps on it so when you see it you're realize its very easy to go through.
