C3P Intercooler Reservoir. Install instructions?
Thread Starter
Senior Member
Joined: Nov 2007
Posts: 358
Likes: 1
From: Snellville, GA
'03 C32, '08 ML63
C3P Intercooler Reservoir. Install instructions?
Anybody have a copy of the installation instructions for the code3 reservoir? I've searched around the web and forums but can't find anything. Maybe I'm just blind though... so if somebody can point me in the right direction I'd greatly appreciate it.
Thanks,
Rich
Thanks,
Rich
Senior Member
Joined: May 2008
Posts: 251
Likes: 1
From: Aberdeen, MD
CLA
to HP Autowerks for the following;"The reservoir is simply placed inline between the IC outlet and the HE inlet. That hose is removed completely, and the two hoses you received will go in their place. The long one is used on the bottom, and the short twisted one up top. They are cut to fit hoses. The hose between the OEM reservoir and the lower hose is removed, and capped off at both ends with the large caps. The small caps are used on the upper line between the bleed nipple and radiator. I attached a quick photoshopped picture of how its installed. The only thing that may need to be used are some small o-rings underneath of the screws that go into the top removable plate. They are SS, and the plate is Aluminum. So there is some coolant that can pressurize and leak through them. But o-rings will solve the problem.
The yellow box is the tank. The blue lines are the new lines that replace the upper hose. The red dots are cap points (one not shown, but will make sense where it is)."
MBWorld Fanatic!
Joined: Dec 2007
Posts: 5,034
Likes: 6
From: Corona, CA
03 g35 coupe...........02 c32 Sold
it looks like its mounted directly onto the radiator support bar.
Here's a clip of it in action, hopefully it'll give you some ideas.
http://www.youtube.com/watch?v=E9JbTIc2x3M
Here's a clip of it in action, hopefully it'll give you some ideas.
http://www.youtube.com/watch?v=E9JbTIc2x3M
MBWorld Fanatic!
Joined: Sep 2008
Posts: 3,152
Likes: 0
From: murfreesboro,tn
2003 porsche 996 turbo
let me know how you like it! man i wished it would have fit my slk32 it would be churning coolant rite now!!
now you just need those nitto 555r dr's i have on amg reps to seal the deal on the track!!
now you just need those nitto 555r dr's i have on amg reps to seal the deal on the track!!
Senior Member
Joined: May 2008
Posts: 251
Likes: 1
From: Aberdeen, MD
CLA
Super Member
Joined: Apr 2009
Posts: 852
Likes: 4
From: DE
2005 E55
This diagram doesn't look exactly like our engine. I ended up taking the whole tri hose off that connected the top intercooler tube, OEM reservoir, and the heat exchanger. I capped the OEM reservoir and the bleeder hose and ran the supplied hoses the way the diagram shows. My only problem is I didn't need to use the second large cap. It seems like they wanted me to cap the hoses running off of the splitter, but I don't see how leaving the splitter there is necessary at all. I'm worried I did something wrong, but the more I run the setup through my head the more it seems OK. Anybody else not use both large caps?
Trending Topics
MBWorld Fanatic!
Joined: Oct 2006
Posts: 4,856
Likes: 4
02 C32 AMG
This diagram doesn't look exactly like our engine. I ended up taking the whole tri hose off that connected the top intercooler tube, OEM reservoir, and the heat exchanger. I capped the OEM reservoir and the bleeder hose and ran the supplied hoses the way the diagram shows. My only problem is I didn't need to use the second large cap. It seems like they wanted me to cap the hoses running off of the splitter, but I don't see how leaving the splitter there is necessary at all. I'm worried I did something wrong, but the more I run the setup through my head the more it seems OK. Anybody else not use both large caps?
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Super Member
Joined: Apr 2009
Posts: 852
Likes: 4
From: DE
2005 E55
MBWorld Fanatic!
Joined: Oct 2006
Posts: 4,856
Likes: 4
02 C32 AMG
Super Member
Joined: Apr 2009
Posts: 852
Likes: 4
From: DE
2005 E55

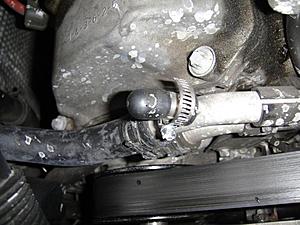

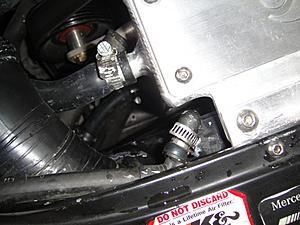

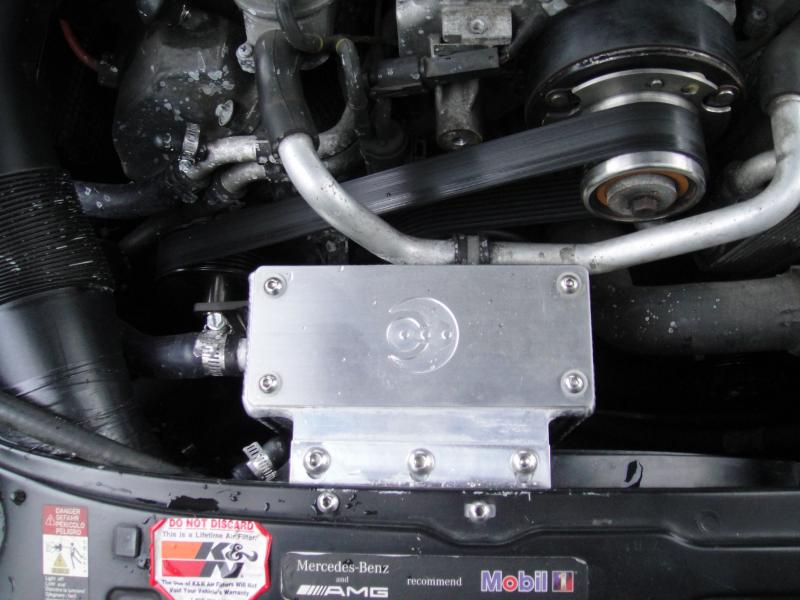

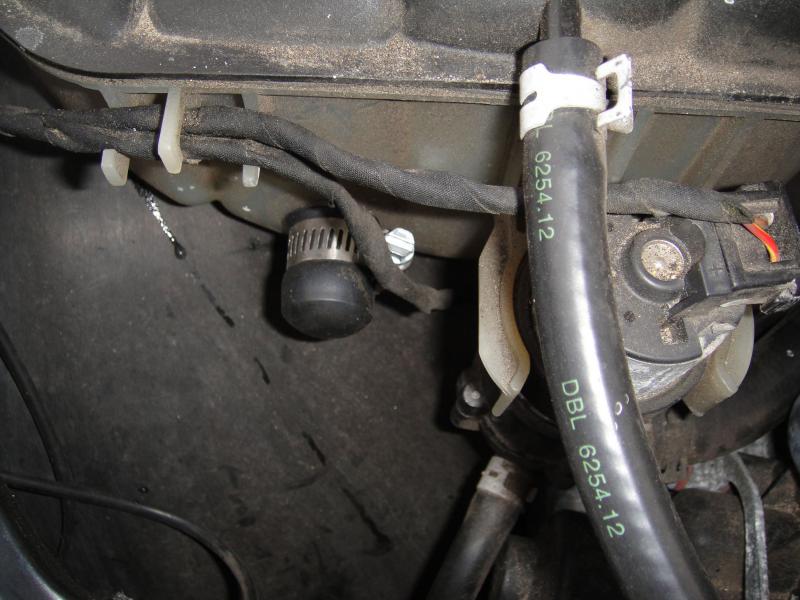

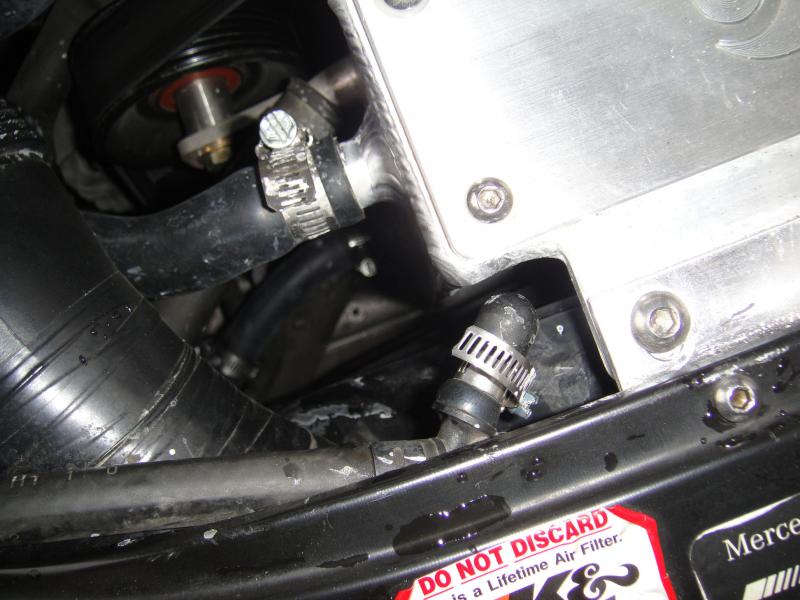

I thought the same thing at first, but trust me it fits perfect. The secret is getting the support leg into the right hole and then adjusting / tightening the screws so the fan turns freely. It's going to be tightly sandwiched between the fan and the air injection tubes. Make sure your putting the mounting plate under the radiator support. Also, don't even bother with the rubber O rings they give you. You WILL need nylon washers. In the pics you'll see white dots all over. That's coolant from when I tried it out with the supplied O rings. Unfortunately, the picture you really need is the one I'd have to take the bumper off to take. The last pic is of the hose you'll be completely removing. Also, you will need to cut the hoses supplied to fit.
Thread Starter
Senior Member
Joined: Nov 2007
Posts: 358
Likes: 1
From: Snellville, GA
'03 C32, '08 ML63
In case you're having a slow-minded day like I was during my install...be sure to clamp both of the caps you put on. If you don't they blow off when the car gets hot and make a mess. I know, seems obvious, but for some reason it didn't to me at the time.
I know, seems obvious, but for some reason it didn't to me at the time.
