Your owners manual should have a diagram toward the back.
I always reference it any time I'm doing my belts.
If you don't have the manual, you can download it at Mercedes....
you'll have to scout around for the URL.

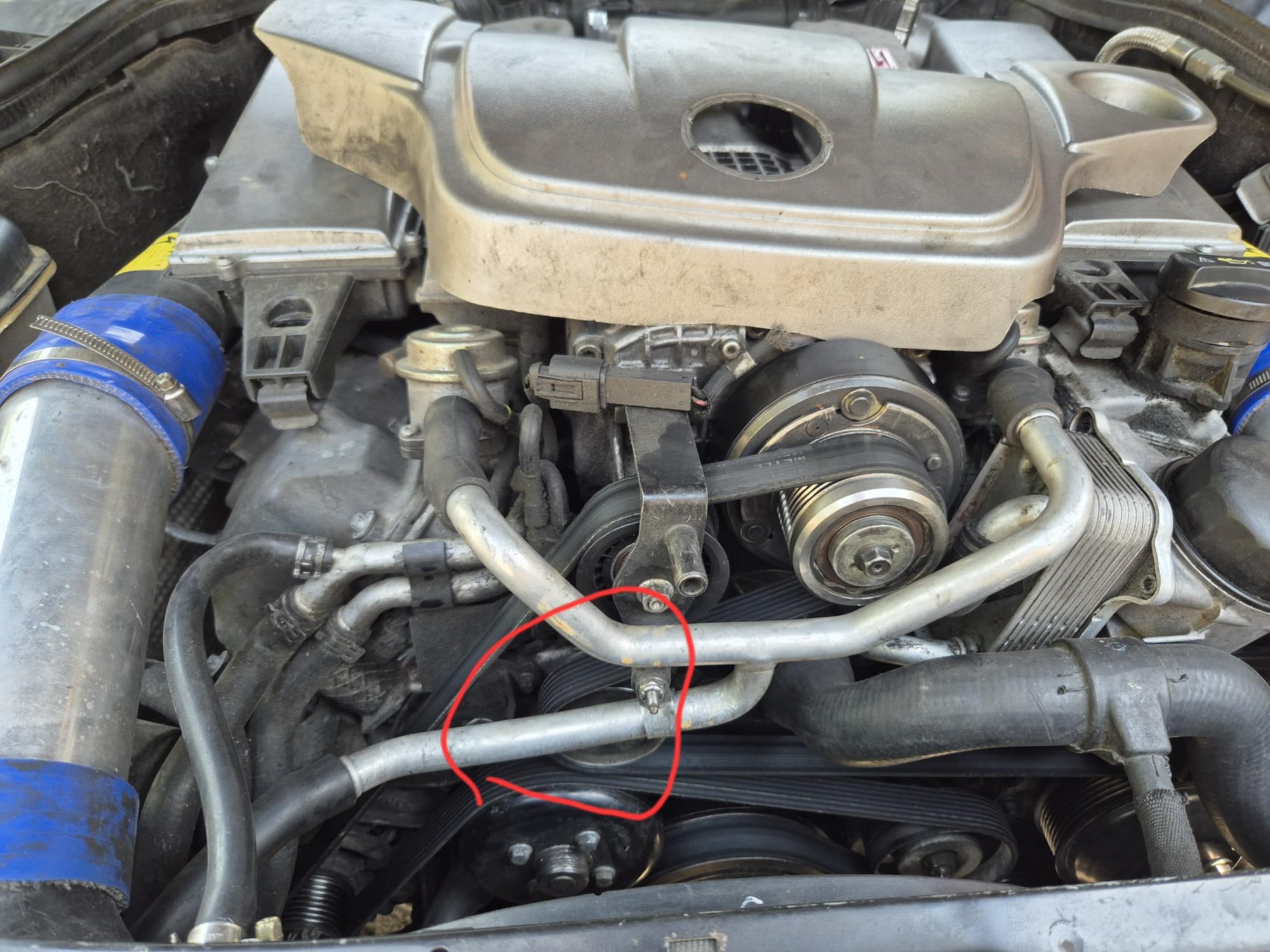

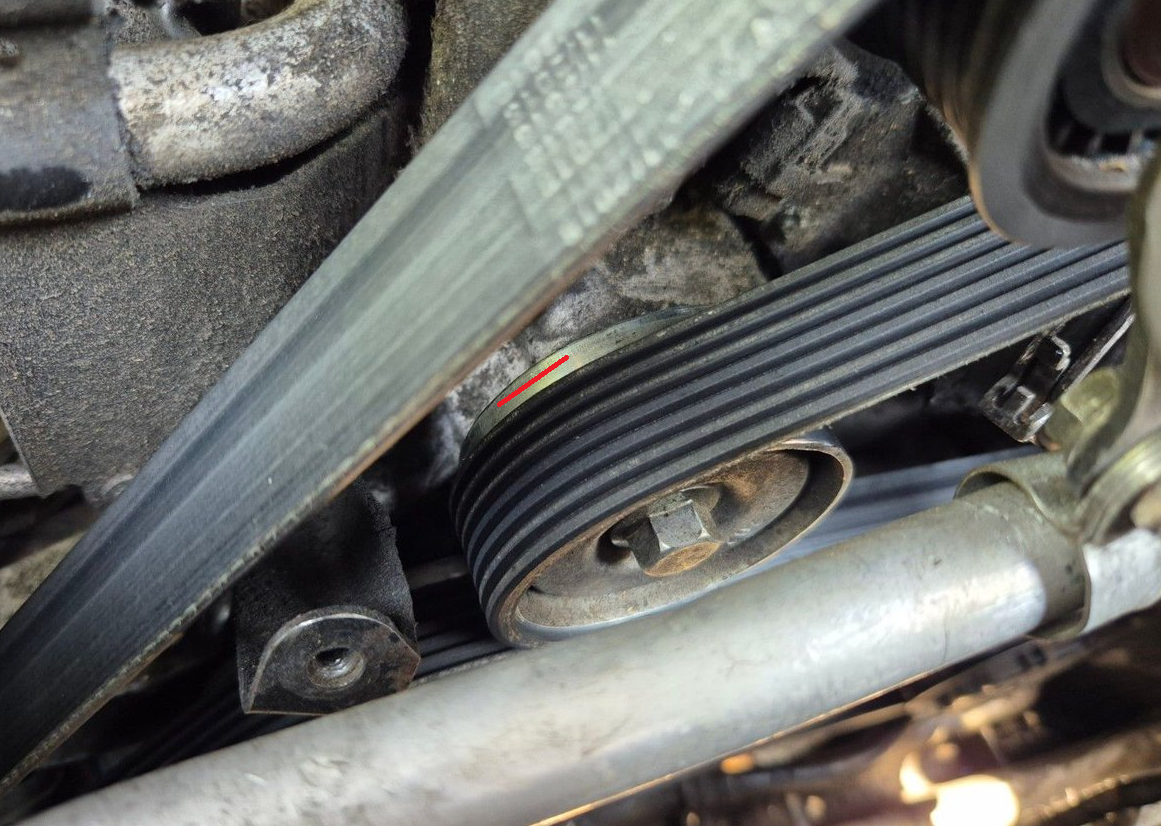

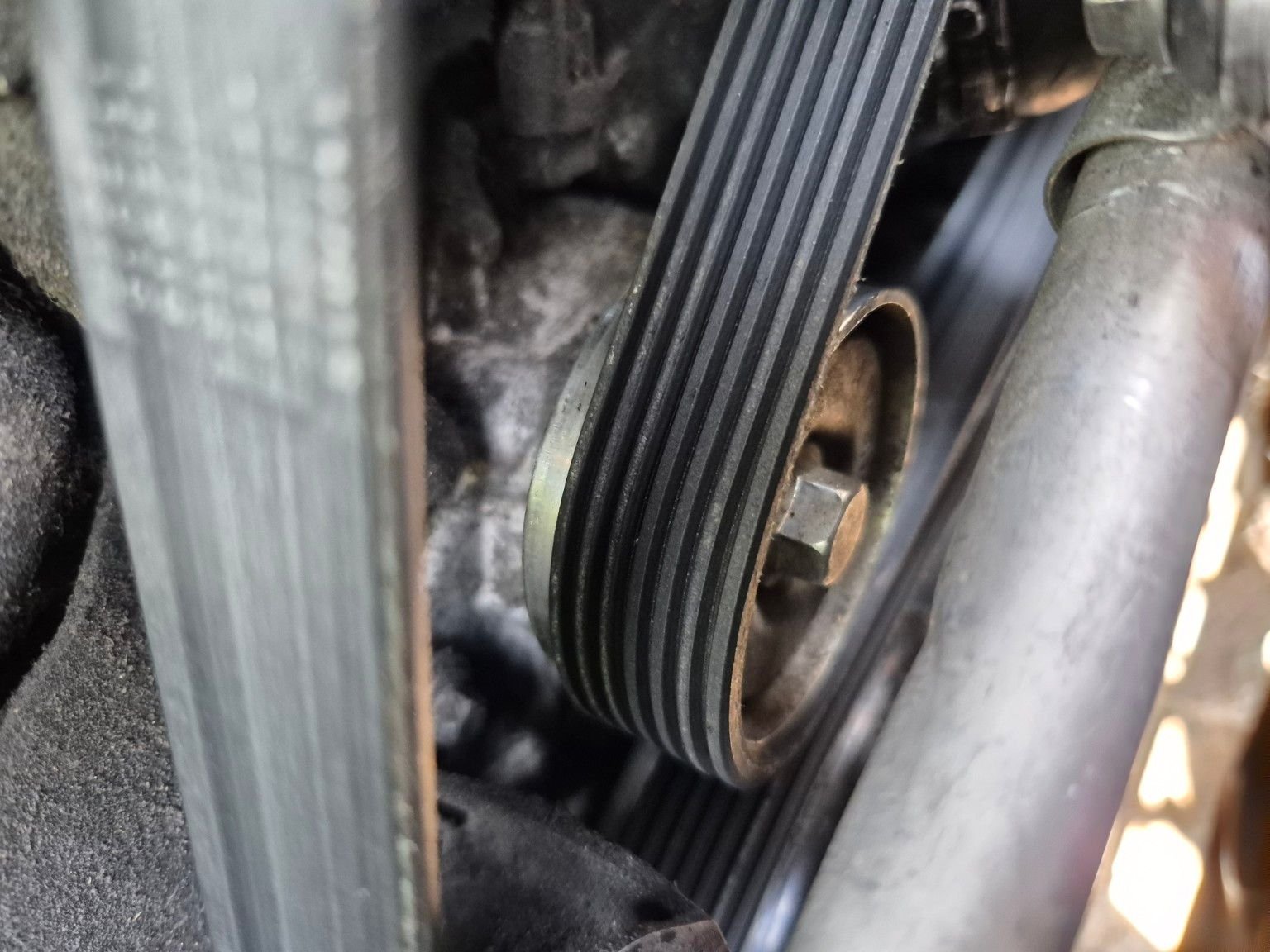

If i understand your question correctly no that belt does not appear to be aligned on the pulley properly. The belt should be centered, not over hanging off the edge like it looks like in your photo.

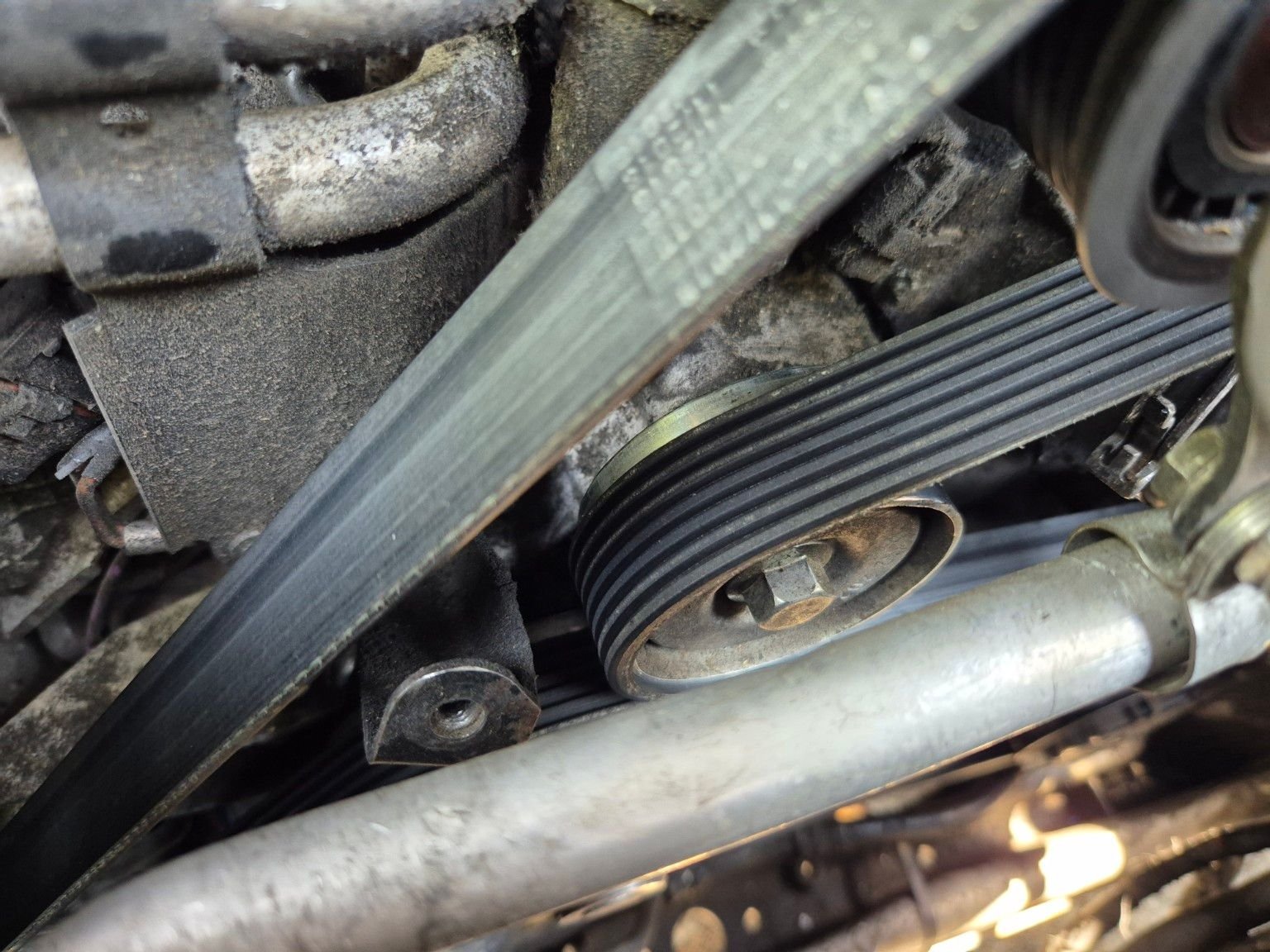

That looks like an old pulley, can see the markings where the belt used to ride on it.
