2002 CL 500 Fuse Box diagrams
Thread Starter
Newbie
Joined: Oct 2021
Posts: 6
Likes: 2
2002 CL500 W215
2002 CL 500 Fuse Box diagrams
Hi, Am new to this forum. Sorry if duplicate thread but I have not been able to find a clear answer or link,

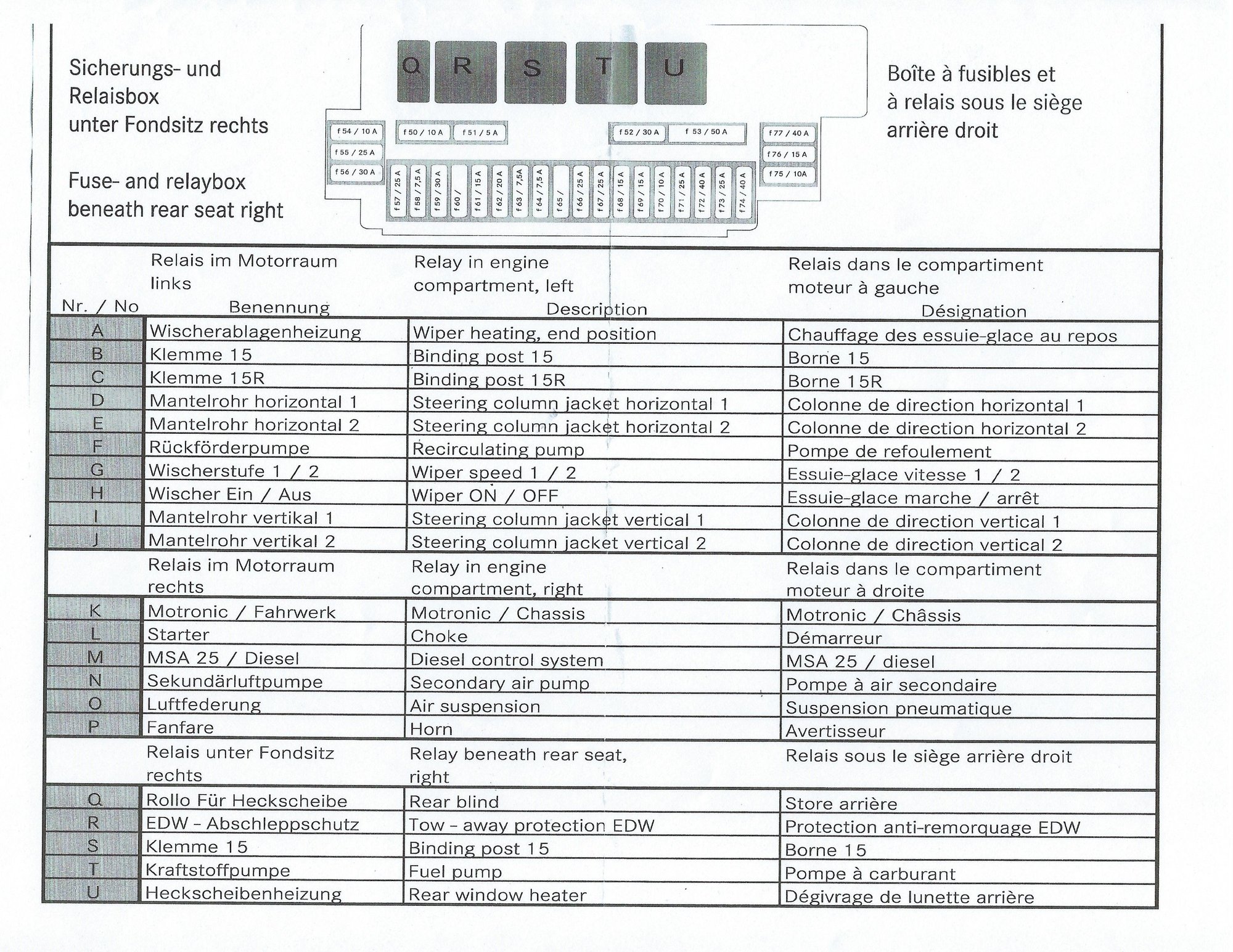

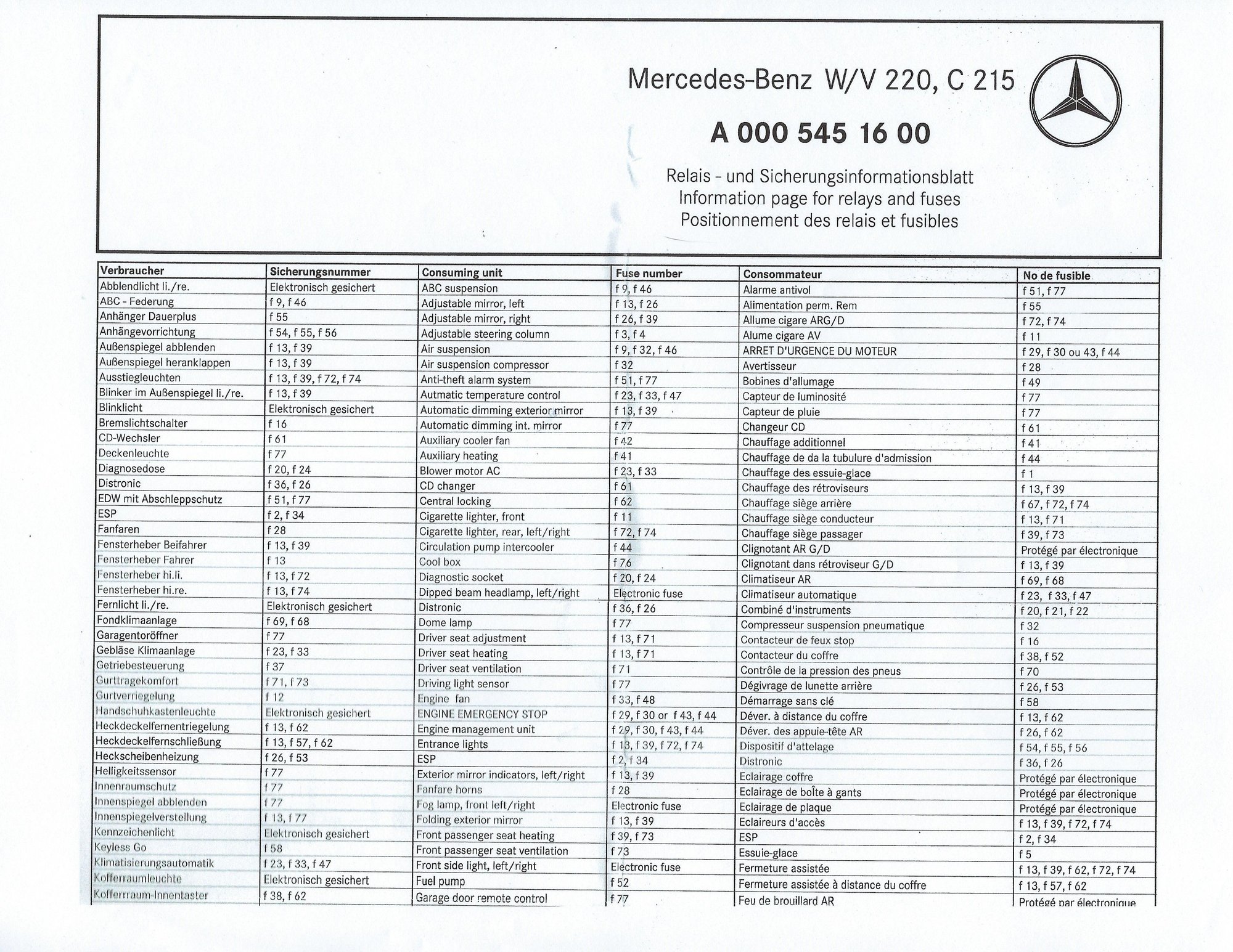

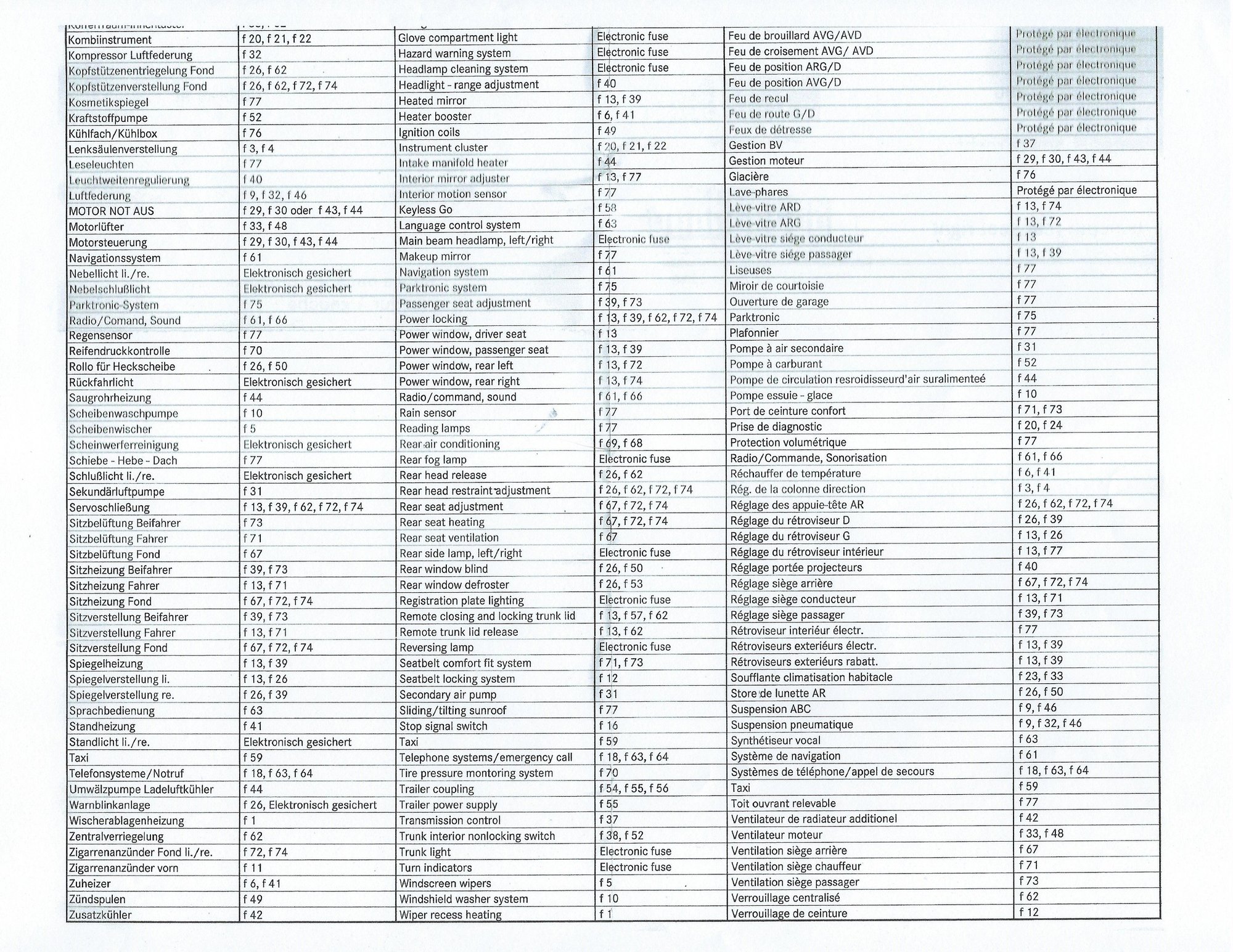

I have a 2002 CL 500 W215. I am looking for the fuse box diagrams (the two in the front engine) and the one below the passenger rear seat.
I have seen some diagrams for C215 and others, no one has said that these are identical to the 2002 CL 500 W215 diagrams.
I bought this car used and see fuses with different amps than what the diagrams I have seen show... for example my car has 15 amp fuses in slots 8 and 9. I am afraid to change these to 40 and 30 amps. Can someone send me the fuse box diagrams for my car model please... VIN. WDBPJ75J62A030959
I have a 2002 CL 500 W215. I am looking for the fuse box diagrams (the two in the front engine) and the one below the passenger rear seat.
I have seen some diagrams for C215 and others, no one has said that these are identical to the 2002 CL 500 W215 diagrams.
I bought this car used and see fuses with different amps than what the diagrams I have seen show... for example my car has 15 amp fuses in slots 8 and 9. I am afraid to change these to 40 and 30 amps. Can someone send me the fuse box diagrams for my car model please... VIN. WDBPJ75J62A030959
Member
Joined: Nov 2014
Posts: 167
Likes: 22
2003 CLK500, 2008 e350
Hi, Am new to this forum. Sorry if duplicate thread but I have not been able to find a clear answer or link,
I have a 2002 CL 500 W215. I am looking for the fuse box diagrams (the two in the front engine) and the one below the passenger rear seat.
I have seen some diagrams for C215 and others, no one has said that these are identical to the 2002 CL 500 W215 diagrams.
I bought this car used and see fuses with different amps than what the diagrams I have seen show... for example my car has 15 amp fuses in slots 8 and 9. I am afraid to change these to 40 and 30 amps. Can someone send me the fuse box diagrams for my car model please... VIN. WDBPJ75J62A030959
I have a 2002 CL 500 W215. I am looking for the fuse box diagrams (the two in the front engine) and the one below the passenger rear seat.
I have seen some diagrams for C215 and others, no one has said that these are identical to the 2002 CL 500 W215 diagrams.
I bought this car used and see fuses with different amps than what the diagrams I have seen show... for example my car has 15 amp fuses in slots 8 and 9. I am afraid to change these to 40 and 30 amps. Can someone send me the fuse box diagrams for my car model please... VIN. WDBPJ75J62A030959
Thread Starter
Newbie
Joined: Oct 2021
Posts: 6
Likes: 2
2002 CL500 W215
I purchased. 2002 CL500 a couple of months ago and use this: https://fuse-box.info/mercedes-benz/...uses-and-relay
