02 clk320 stereo wiring
Thread Starter
Junior Member
Joined: Mar 2020
Posts: 25
Likes: 2
2002 CLK 320
02 clk320 stereo wiring
So I am looking into installing an aftermarket stereo but I haven't the slightest clue where to start on this car. I've installed aftermarket radios in all of my cars that I've owned in the past so installing it won't be an issue.
I can't seem to find a wiring diagram not for the specific year. And other than losing steering wheel controls do I need the interface for it?
Also the car has what looks like a microphone beside the sos button. Does it work?
I can't seem to find a wiring diagram not for the specific year. And other than losing steering wheel controls do I need the interface for it?
Also the car has what looks like a microphone beside the sos button. Does it work?
Junior Member
Joined: Nov 2024
Posts: 16
Likes: 0
2002 CLK 430
theres a wiring diagram on the sticky on how to and a wiring diagram from southwest star on how to do it with a PAC system. but if you want to save yourself some trouble get the CRUX SWRBM-57C for 1999-2002 CLK w208 the wiring is already done and has controls for steering wheel. I found that you do not need the CRUX CS-LOC1 as it makes the audio line quieter and the max audio is half of its actual capacity mind you that i am using a SONY XAV-AX4000 that has built in pre amp and I am not getting any audio issues as a direct line in. My car is a CLK 430 2002 with a bose audio system. the amp on needs to be attached to the accessory power.

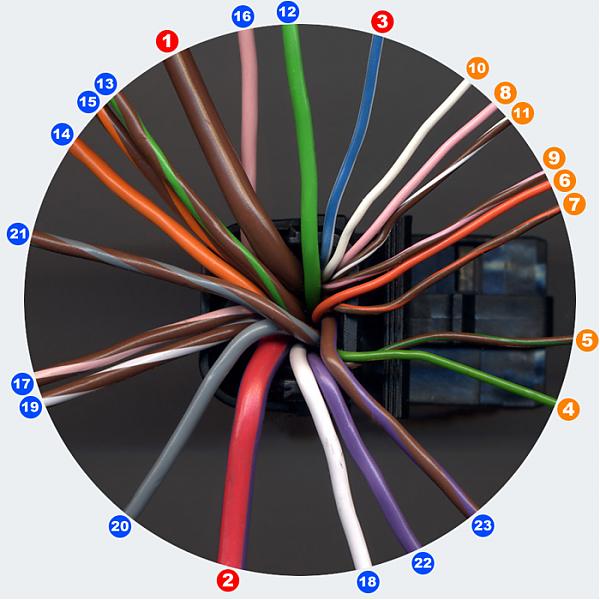

Here is a complete and CORRECT list of all wires in the Amplifier plug
(see attached pictures too!):
1. BROWN (big wire): Chassis Ground
2. RED with VIOLET strip (big wire): 12 Volt Ignition/Acc
3. BLUE with WHITE strip: Amp Turn-On (Remote)
INPUTS (from Headunit to Amplifier) - 8 THIN wires:
4. GREEN: + Left Front (input)
5. BROWN with GREEN strip: - Left Front (input)
6. ORANGE: + Right Front (input)
7. BROWN with ORANGE strip: - Right Front (input)
8. PINK: + Left Rear (input)
9. BROWN with PINK strip: - Left Rear (input)
10. WHITE: + Right Rear (input)
11. BROWN with WHITE strip: - Right Rear (input)

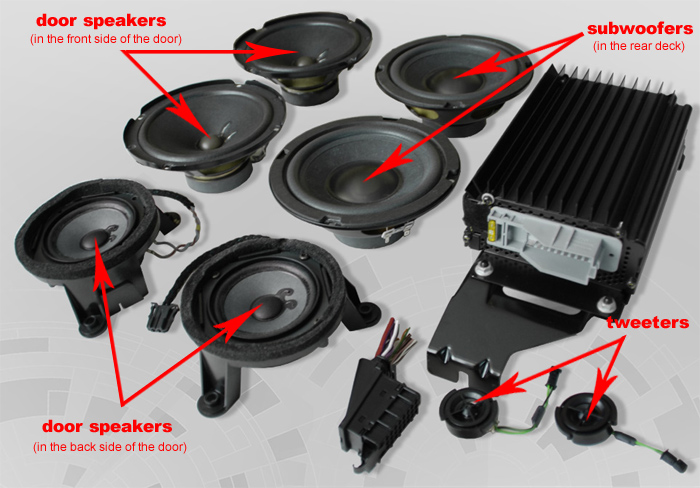

OUTPUTS (from Amplifier to Speakers) - 10 THICK wires:
12. GREEN: + Left Speaker and Tweeter in the Front side of the door (output)
13. BROWN with GREEN strip: - Left Speaker and Tweeter in the Front side of the door (output)
14. ORANGE: + Right Speaker and Tweeter in the Front side of the door (output)
15. BROWN with ORANGE strip: - Right Speaker and Tweeter in the Front side of the door (output)
16. PINK: + Left Speaker in the Back side of the door (output)
17. BROWN with PINK strip: - Left Speaker in the Back side of the door (output)
18. WHITE: + Right Speaker in the Back side of the door (output)
19. BROWN with WHITE strip: - Right Speaker in the Back side of the door (output)
20. GRAY: + Left Speaker(subwoofer) in the rear deck (output)
21. BROWN with GRAY strip: - Left Speaker(subwoofer) in the rear deck (output)
22. VIOLET: + Right Speaker(subwoofer) in the rear deck (output)
23. BROWN with VIOLET strip: - Right Speaker(subwoofer) in the rear deck (output)

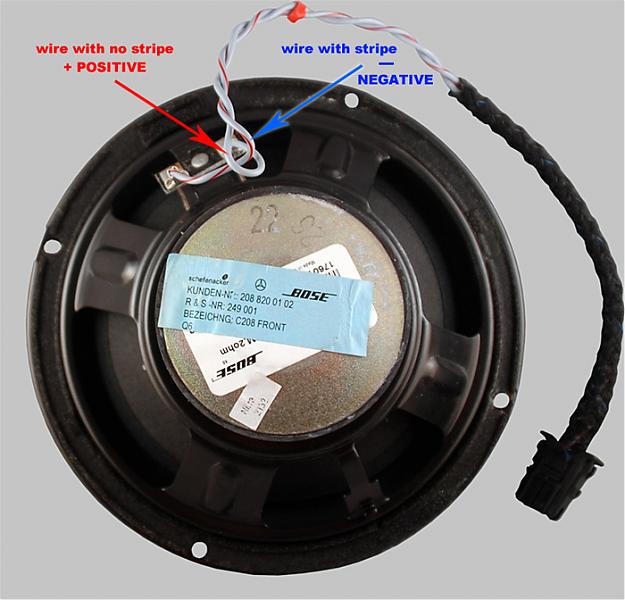

All speakers have two wires: one with a strip (Negative) and one with no strip (Positive):
(see attached pictures too!):1. BROWN (big wire): Chassis Ground
2. RED with VIOLET strip (big wire): 12 Volt Ignition/Acc
3. BLUE with WHITE strip: Amp Turn-On (Remote)
INPUTS (from Headunit to Amplifier) - 8 THIN wires:
4. GREEN: + Left Front (input)
5. BROWN with GREEN strip: - Left Front (input)
6. ORANGE: + Right Front (input)
7. BROWN with ORANGE strip: - Right Front (input)
8. PINK: + Left Rear (input)
9. BROWN with PINK strip: - Left Rear (input)
10. WHITE: + Right Rear (input)
11. BROWN with WHITE strip: - Right Rear (input)
OUTPUTS (from Amplifier to Speakers) - 10 THICK wires:
12. GREEN: + Left Speaker and Tweeter in the Front side of the door (output)
13. BROWN with GREEN strip: - Left Speaker and Tweeter in the Front side of the door (output)
14. ORANGE: + Right Speaker and Tweeter in the Front side of the door (output)
15. BROWN with ORANGE strip: - Right Speaker and Tweeter in the Front side of the door (output)
16. PINK: + Left Speaker in the Back side of the door (output)
17. BROWN with PINK strip: - Left Speaker in the Back side of the door (output)
18. WHITE: + Right Speaker in the Back side of the door (output)
19. BROWN with WHITE strip: - Right Speaker in the Back side of the door (output)
20. GRAY: + Left Speaker(subwoofer) in the rear deck (output)
21. BROWN with GRAY strip: - Left Speaker(subwoofer) in the rear deck (output)
22. VIOLET: + Right Speaker(subwoofer) in the rear deck (output)
23. BROWN with VIOLET strip: - Right Speaker(subwoofer) in the rear deck (output)
All speakers have two wires: one with a strip (Negative) and one with no strip (Positive):
