Taking apart a damaged M 178 engine - 27k miles
Super Member
Joined: May 2021
Posts: 615
Likes: 155
From: Utah
2018 Diamond White GT-R
Thread Starter
Senior Member
Joined: Aug 2010
Posts: 359
Likes: 291
From: Rockport, TX
2007 S65 AMG-Sold, 2007 SL55 P030 - 2016 GL450 - - 2017 AMG GTS - Sold - 2015 AMG S65
No - Nothing was loose inside the engine apart from the extra bolt found, when I take things apart each bolt/fastener gets placed in a zip lock bag and with a permanent marker described where it came from.
The area around the oil pipe running from the engine to the oil reservoir showed evidence of a being being hit by a road hazard object. I believe the PO had the damaged pipe replaced and tried to run the engine again instead of taking things apart the first time around.
It's like what "Stenzel" said it appears they did run the engine way longer than they should have.
Pending the completion of more work on other inhouse subjects I'll report the results of further inspection results here when available.
Thank all of you for your participation and feed back and hopefully this will help all of you (practicing preventive maintenance) to take car of these interesting machines.
Today I'm off enjoying the GTS in a quick 2 day roundtrip to Houston (400 miles) to show a Motor yacht. Would you buy a motor yacht from a guy that drives an AMG GTS?
It's like what "Stenzel" said it appears they did run the engine way longer than they should have.
Pending the completion of more work on other inhouse subjects I'll report the results of further inspection results here when available.
Thank all of you for your participation and feed back and hopefully this will help all of you (practicing preventive maintenance) to take car of these interesting machines.
Today I'm off enjoying the GTS in a quick 2 day roundtrip to Houston (400 miles) to show a Motor yacht. Would you buy a motor yacht from a guy that drives an AMG GTS?
MBWorld Fanatic!
Joined: Sep 2017
Posts: 1,025
Likes: 706
From: Santa Monica Mountains
2025 Lucid Air Grand Touring, 2022 F-150, 1926 Rolls-Royce SSG roadster
Member
Joined: Sep 2019
Posts: 75
Likes: 48
AMG GTS (2016), GL63 (2016), SL63 (2022) -- Old Cars: E400, CLS 63s, ML 63, CL 600, S550 ...
I am in the "best not to say unless we are certain" camp.
MBWorld Fanatic!
Joined: Sep 2017
Posts: 1,025
Likes: 706
From: Santa Monica Mountains
2025 Lucid Air Grand Touring, 2022 F-150, 1926 Rolls-Royce SSG roadster
Well, unless there is a good "chain of custody" for this engine, we could not even say for sure that the engine had not been worked on post-delivery and the bolt dropped in at that time. I realize that's unlikely, but can we really say it was the original builder for sure?
I am in the "best not to say unless we are certain" camp.
I am in the "best not to say unless we are certain" camp.
MBWorld Fanatic!
Joined: Jun 2016
Posts: 1,375
Likes: 543
2024 AMG G63 2025 Ferrari SF90 AF Spider
Scott:
It seems logical to me that the “one man one engine” person would know almost immediately that they dropped and couldn’t account for a bolt in a open engine during assembly?
If the bolt couldn’t be accounted for on the floor or around the work bench then logic says they or another team member would have to dismantle the build until the bolt was located.
To hide the fact that the bolt was MIA would, in my assessment, be grounds for dismissal.
Jerry
It seems logical to me that the “one man one engine” person would know almost immediately that they dropped and couldn’t account for a bolt in a open engine during assembly?
If the bolt couldn’t be accounted for on the floor or around the work bench then logic says they or another team member would have to dismantle the build until the bolt was located.
To hide the fact that the bolt was MIA would, in my assessment, be grounds for dismissal.
Jerry
Super Member
Joined: May 2021
Posts: 615
Likes: 155
From: Utah
2018 Diamond White GT-R
Scott:
It seems logical to me that the “one man one engine” person would know almost immediately that they dropped and couldn’t account for a bolt in a open engine during assembly?
If the bolt couldn’t be accounted for on the floor or around the work bench then logic says they or another team member would have to dismantle the build until the bolt was located.
To hide the fact that the bolt was MIA would, in my assessment, be grounds for dismissal.
Jerry
It seems logical to me that the “one man one engine” person would know almost immediately that they dropped and couldn’t account for a bolt in a open engine during assembly?
If the bolt couldn’t be accounted for on the floor or around the work bench then logic says they or another team member would have to dismantle the build until the bolt was located.
To hide the fact that the bolt was MIA would, in my assessment, be grounds for dismissal.
Jerry
And that's why Hendrik should NOT disclose who the engine builder was.. You guys have way too much time on your hands and are making a mountain out of a mole-hill..
MBWorld Fanatic!
Joined: Sep 2007
Posts: 1,481
Likes: 310
95 SL600
I'd sure like to know. Carelessness has its consequences.
Beyond that I doubt an automobile fan board would ruin anyone's life. I suspect if Mercedes-Benz and AMG were interested they could have figured it all out by now.
How about this as a compromise. We have a thread on who built your AMG GT's engine. (There are two, the first one is currently active.) Can you take a look at that thread and tell us if the engine builder who dropped the bolt is identified in that thread? https://mbworld.org/forums/coupe-roa...-s-engine.html
Beyond that I doubt an automobile fan board would ruin anyone's life. I suspect if Mercedes-Benz and AMG were interested they could have figured it all out by now.
How about this as a compromise. We have a thread on who built your AMG GT's engine. (There are two, the first one is currently active.) Can you take a look at that thread and tell us if the engine builder who dropped the bolt is identified in that thread? https://mbworld.org/forums/coupe-roa...-s-engine.html
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Member
Joined: Jul 2009
Posts: 87
Likes: 27
From: New York
2018 AMG GT S, 2016 E350, 2013 GLK350
Hendrik, Thank you for taking the time to photograph and annotate the photos. The damage done is so extensive. Have you found any punctures in the oil pans that led to the engine running for a prolonged period without oil?
I hope you are well and have a great Thanksgiving.
Dave
I hope you are well and have a great Thanksgiving.
Dave
Super Moderator
Joined: May 2002
Posts: 10,542
Likes: 3,674
From: Land of 10,000 lakes
AMG GTC Roadster, E63s Ed.1, M8 Comp. Coupe
Hmm, I wouldn't call an extra screw in a hand-build engine a mole-hill. What if it wasn't a punctured hose, etc., the engine goes and the car is out of warranty?
Super Member
Joined: May 2021
Posts: 615
Likes: 155
From: Utah
2018 Diamond White GT-R
The sky is falling,!The sky is falling! IF ifs and buts were beer and nuts oh what a party we'd have.......
Last edited by 57 GTR; Nov 22, 2021 at 03:38 PM.
Thread Starter
Senior Member
Joined: Aug 2010
Posts: 359
Likes: 291
From: Rockport, TX
2007 S65 AMG-Sold, 2007 SL55 P030 - 2016 GL450 - - 2017 AMG GTS - Sold - 2015 AMG S65
The rest of the story
Hendrik, Thank you for taking the time to photograph and annotate the photos. The damage done is so extensive. Have you found any punctures in the oil pans that led to the engine running for a prolonged period without oil?
I hope you are well and have a great Thanksgiving.
Dave
I hope you are well and have a great Thanksgiving.
Dave
For those that want to play along and are watching at home hereby my findings and some pictures to see for yourself.

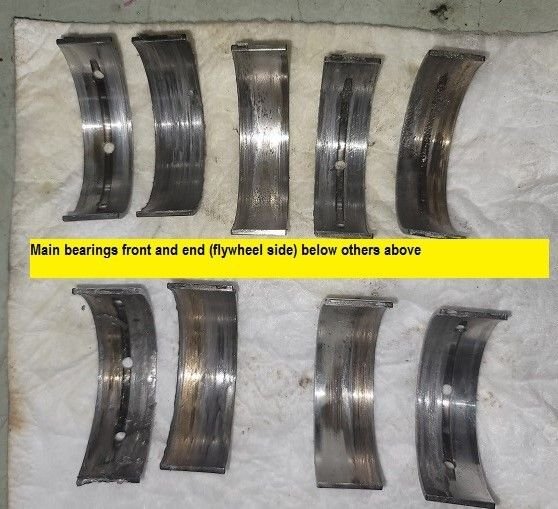

The work so far: at this time the engine is completely apart and from what I have seen I now draw the following conclusion.

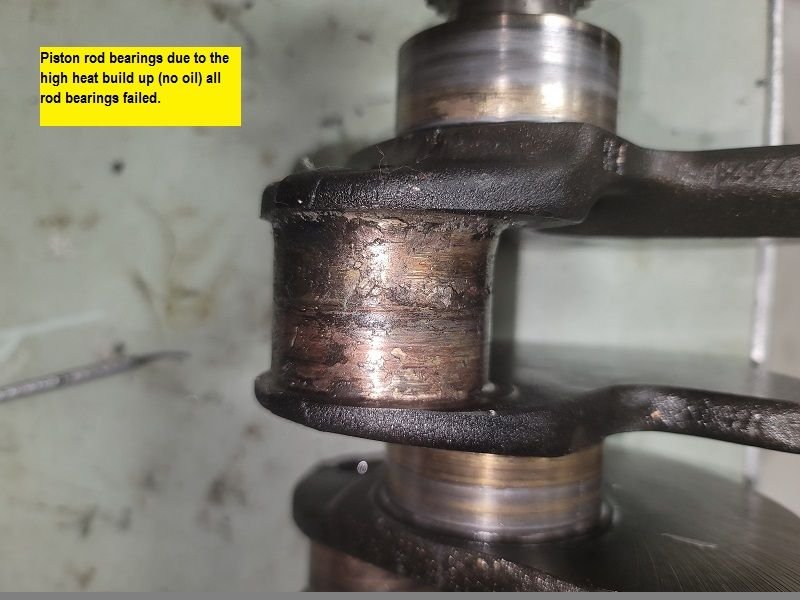

1. The PO driver did hit a road hazard that damaged the oil feed line running from the engine to the oil reservoir, lost some oil and perhaps stopped in time to avoid further damage.
2. Seeing the visual damage to the belly pan, damaged oil feed line and loss of the amount of oil they decided to pull the engine carrying subframe, crank case pan and oil feed lines from under need while the engine remained in the car, perhaps the rod cap on #3 piston rode was pulled to see the condition of the bearing, when all looked good and the engine still could still be turned over by hand they put things back together but never got the rod cap bolt for # 3 torqued correctly.

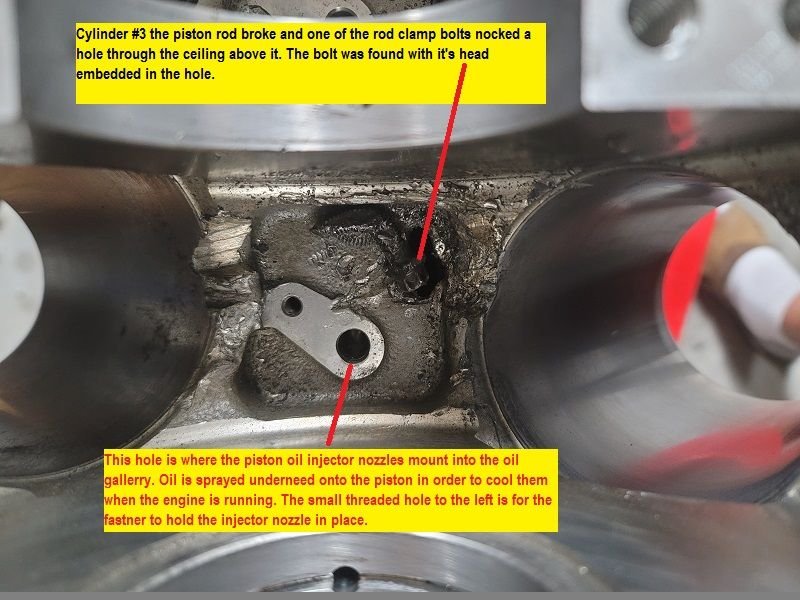

3. After things were put back together and now driving the car again the # 3 piston rod worked itself loose, the cap bolt came out and all the related damage happened in seconds.
4. The (2) broken bolt holes in the rear main cover plate demonstrates that the crank case pan was removed as without braking these (2) holes open the pan can not be removed from the engine block without first removing the flywheel (which can only be done with the engine out of the car).
5. After the second incident the engine seized and would not turn over in either direction and the PO decided to sell the car.
Best H
Thread Starter
Senior Member
Joined: Aug 2010
Posts: 359
Likes: 291
From: Rockport, TX
2007 S65 AMG-Sold, 2007 SL55 P030 - 2016 GL450 - - 2017 AMG GTS - Sold - 2015 AMG S65
Based on my findings, it all started due to a road hazard damaging the oil feed pipe to the oil reservoir and the loss of oil, which made the PO pull the crank case pan (instead of taking the motor out and do a proper costly/exam at that time) to inspect/look for any internal damage.
It is quite obvious to me that at that time they must have turned the motor over by hand and perhaps pulled to the # 3 rod bearing to check on it's condition before closing things back up.
I'm sure that if the motor couldn't be rotated by hand at that time they would not have closed it back up and tried to run it again. After starting/running it again the damage started when the # 3 rod bearing cap broke loose and the rotating crank shaft broke the # 3 piston rod, at the same time there was an immediate oil pressure loss (causing damage to all the bearings) and the motor seized within seconds after this. All the other rods where still connected to the crank shaft.
I'm sure that after this experience the PO decided to sell the car.
It's all good now, the car is doing fine and it's happy with it's new motor and perhaps with it's new owner, I wasn't looking for one but it found me!
Enjoy your cars
Member
Joined: Jul 2009
Posts: 87
Likes: 27
From: New York
2018 AMG GT S, 2016 E350, 2013 GLK350
Hendrik, if we ever needed a reminder that when oil pressure drops to zero, we should stop the engine immediately, this is it! Thank you for the additional photos and explanation.
Dave
Dave
Member
Joined: Apr 2021
Posts: 82
Likes: 29
None yet
The two holes on the cover plate, since it can’t be removed without further dismantling things, I wonder if someone just cut the top halves of those holes to loosen the bolts with a flat wrench and slide the cover on off? Looks like a “Bubbas Kar Shop” move “hey, I could might fix that for ya!”
Super Member
Joined: Dec 2020
Posts: 564
Likes: 453
From: Germany
AMG GTR
Anyone who cares a little about mechanics should do that.
Unfortunately, you don't notice it. You only have an oil level warning.
No oil pressure monitoring. Not even on the Can bus.
It just doesn't exist. Not even a pilot light.
Who wants to prevent here:
A simple oil pressure switch (recommendation: NC / open @ 0.8 bar / 12 psi) in combination with a buzzer and / or indicator light, can save lives. :-)
The thread of the stock test connection point (measuring is between oil pump and oil gallery)
M12 x 1.5
Longer connection/adapter is an advantage. The best way to access it is from below. (attach pics.)
Oil pressure switch (One wire, grounded switched) ----> control device minus / control device plus ----> terminal 15 (ignition) or better with buzzer, terminal 87 (engine running)
Info:
The oil pump is regulated in 3 stages.
1 bar / 14.5 psi (idle)
2 bar / 29 psi
4 bar / 58 psi
If you don't want to pull cables into the interior. Or be in hurry ... Quick and dirty ;-)
Mount a ground switched, (one wire) Oil Presure Switch. Connect the oilswitch wire, parallel to the level indicator of brake fluid reservoir.(= Brown/white wire).
If there is no oil pressure (engine off), one red brake warning lamp, lights up. If there is oil pressure, it is off and brake fluid level continues to be monitored.
Just to make it complete: If you have alert, check both, brakefluid and oil Level.
Note:
Made this quite often at other MB, but not yet tested on GT. (I retrofitted an oil pressure gauge, with an alarm).
I looked at the circuit diagrams, it should work.
May also be that a resistor is still needed.However, it maybe that you get an error message (brake fluid level) after starting and with "o.k". you must reset.
But it would be simulated quickly.Just bridge over the connector of the brake fluid level sensor. Remove the connection after the engine has started.
Kind Regards
Stenzel
Oil pressure test point, with retrofitted oil pressure sensor.
Prüfanschluß mit Öldruckgeber. 1
Prüfanschluß mit Öldruckgeber. 2
Last edited by Stenzel-Germany; Nov 24, 2021 at 07:03 AM.
