E320 W124 ABS light stays on
MBWorld Fanatic!
Joined: Nov 2002
Posts: 1,028
Likes: 133
From: Massachusetts
2018 GLE350, 2014 G550, 2000 SL500, 1980 TR8, 1995 E320 Cabriolet
Here is a troubleshooting guide that may help. You cannot read ABS codes on the 8 or 16 pin diagnostic connectors on the 4 & 6 cylinder W124 cars, however, you can read them on the 38 pin connector on the V8 models.
- FD
- FD
MBWorld Fanatic!
Joined: Nov 2002
Posts: 1,028
Likes: 133
From: Massachusetts
2018 GLE350, 2014 G550, 2000 SL500, 1980 TR8, 1995 E320 Cabriolet
Phat -

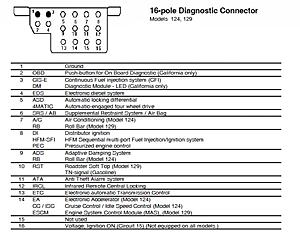

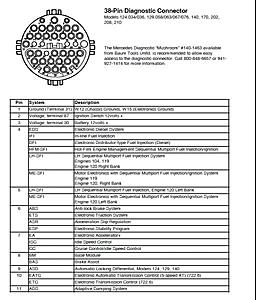

I noted that your profile says you drive a 400e, but the title of your post simply says E320 W124, so I am assuming that we're talking about a a 6 cylinder car here. I have posted the diagnostic connector functional pin outs for 8, 16, and 38 pin connectors. On the 8 or 16 pin connectors, pin 6 is the SRS (Airbag) pulse code output which will not be relevant to an ABS problem. Pin 6 is, however, the ABS output on your 400e which will have the 38 pin connector.
Follow the troubleshooting guide in the PDF and see what you come up with.
- FD
I noted that your profile says you drive a 400e, but the title of your post simply says E320 W124, so I am assuming that we're talking about a a 6 cylinder car here. I have posted the diagnostic connector functional pin outs for 8, 16, and 38 pin connectors. On the 8 or 16 pin connectors, pin 6 is the SRS (Airbag) pulse code output which will not be relevant to an ABS problem. Pin 6 is, however, the ABS output on your 400e which will have the 38 pin connector.
Follow the troubleshooting guide in the PDF and see what you come up with.
- FD
Thread Starter
Junior Member
Joined: Feb 2013
Posts: 29
Likes: 0
mercedes 400e
Hi Floobydust,
Thank you so much for the information. I am still digesting the Mitchell information you sent. Indeed, I have the 400e with 300K miles on it. I recently got a 320. I wish I can get the ABS tester to do the job right.
Phat
Thank you so much for the information. I am still digesting the Mitchell information you sent. Indeed, I have the 400e with 300K miles on it. I recently got a 320. I wish I can get the ABS tester to do the job right.
Phat
MBWorld Fanatic!
Joined: Nov 2002
Posts: 1,028
Likes: 133
From: Massachusetts
2018 GLE350, 2014 G550, 2000 SL500, 1980 TR8, 1995 E320 Cabriolet
phat -
Two more suggestions. One, be sure that all of your fuse contacts are cleaned and that the fuses are each removed and inspected (preferably replaced). Two, check your OVP relay - if you are not familiar, it is located behind the battery and has one or two blade style fuses located under a plastic cover on it. Be sure that (those) fuse(s) is(are) not blown. The OVP supplies power to the ABS solenoid relay and no-power to this relay is what causes the ABS light to come on (via a blocking diode).
- FD
Two more suggestions. One, be sure that all of your fuse contacts are cleaned and that the fuses are each removed and inspected (preferably replaced). Two, check your OVP relay - if you are not familiar, it is located behind the battery and has one or two blade style fuses located under a plastic cover on it. Be sure that (those) fuse(s) is(are) not blown. The OVP supplies power to the ABS solenoid relay and no-power to this relay is what causes the ABS light to come on (via a blocking diode).
- FD
