HID connection question

Hi guys,

Does anyone have a picture or a diagram of the Xenon headlight connection - from the ballast to the Xenon bulb?

It'd be better if it's the OEM Xenon headlight connection - Thanks in advance
JeffreyP

Jul 23, 2008 | 03:38 PM

Semikolon

Senior Member

Joined: Jun 2007

Posts: 382

Likes: 2

From: Norway

2001 E220T CDI Avantgarde, 2002 E55T AMG

it looks like this http://i295.photobucket.com/albums/m...6/DSC02761.jpg

What do you need this for? You should not mess with this cable if that is what you are planning. When igniting the bulb the voltage is about 22 000-25 000Volts.

BTW, the socket is ~the same from all manufacturers of D2R/S electronics

Last edited by Semikolon; Jul 23, 2008 at 03:40 PM.

Jul 23, 2008 | 03:46 PM

JeffreyP

Thread Starter

Member

Joined: Dec 2003

Posts: 100

Likes: 0

Thank you, now that make sense

So just to make sure, the other opening on the ballast (top right corner) is the connector to power somewhere?

Jul 23, 2008 | 04:06 PM

Semikolon

Senior Member

Joined: Jun 2007

Posts: 382

Likes: 2

From: Norway

2001 E220T CDI Avantgarde, 2002 E55T AMG

the other connection on the ballast is for 12V DC yes.

some info

The hella ballast used in mercedes headlights have integrated igniter. Nominal output voltage when lamp is on is 85V DC. When igniting the voltage is about 22-25kV DC.

Other manufacturers may use a separate igniter. The output voltage from the ballast to the igniter is then always 85V DC. But when igniting the igniter will make 22-25kV to turn on, then return to 85V.

So if you are planning on cutting and splicing and whatnot, DON'T touch the cable between the igniter and the socket! If you get a separate igniter the wires between the ballast and igniter is safe to play with.

I can add that the reason not to play with the igniter cable is that such high voltages as 25kV may travel through air and insulation of the wrong type. It can be compared to a thunderstorm when lightning hits the ground. That is electricity traveling through air because of the high voltage.

Last edited by Semikolon; Jul 23, 2008 at 04:08 PM.

Jul 23, 2008 | 04:19 PM

JeffreyP

Thread Starter

Member

Joined: Dec 2003

Posts: 100

Likes: 0

Thank you,

I found a more detailed picture, not sure if it's OK to post the link here

http://www.benzworld.org/forums/sale...r-hid-kit.html

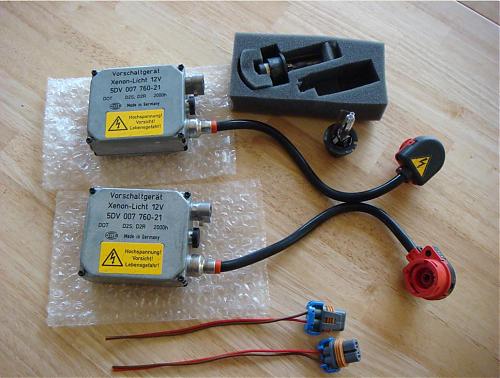

So seems like the original owner cut off the power connector (the two connectors at the bottom of the 2nd picture), the end connector seem to connect to the top right of the ballast? the red/black cable go to 12V DC somewhere?
