Airmatic failure on one side?
Thread Starter
Junior Member
Joined: Aug 2016
Posts: 41
Likes: 5
2006 e500
Airmatic failure on one side?
2006 E500 Sedan (RWD) 58,000 miles. Was driving about 100 miles from home on the highway and got the dreaded "STOP! CAR TOO LOW!" error message in red. Unfortunately at the time I was in the fast lane in heavy LA traffic and it took me about 2 miles before I could get off and then maybe another 1/2 mile to find a safe side street to park.
I got out to find that both passenger side corners were sitting down on the tires. Driver's side looks fine.
I tried cycling the "lift" button and could hear the compressor whining but no change in ride height on the passenger side. There was too much background noise to hear if there was a noticeable air leak.
Three hours and $800 later, I was flatbed towed back home and now I'm trying to get my arms around where to start diagnosing this problem. I've spent several hours researching and googling, but one thing I haven't seen is a reference to one *side* of the vehicle going out.
Based on my reading, I believe there is a "block" or manifold that supplies the front two struts and another manifold that supplies the rear, so it is a likely source of problems when you have both front or both rears drop.
Is there any similar problem that would cause both shocks/struts on the PASSENGER side to drop and not respond to the compressor?
Thanks in advance. If this doesn't point me in any particular direction, I'll be starting with the soapy water trick on both the passenger side struts.
I got out to find that both passenger side corners were sitting down on the tires. Driver's side looks fine.
I tried cycling the "lift" button and could hear the compressor whining but no change in ride height on the passenger side. There was too much background noise to hear if there was a noticeable air leak.
Three hours and $800 later, I was flatbed towed back home and now I'm trying to get my arms around where to start diagnosing this problem. I've spent several hours researching and googling, but one thing I haven't seen is a reference to one *side* of the vehicle going out.
Based on my reading, I believe there is a "block" or manifold that supplies the front two struts and another manifold that supplies the rear, so it is a likely source of problems when you have both front or both rears drop.
Is there any similar problem that would cause both shocks/struts on the PASSENGER side to drop and not respond to the compressor?
Thanks in advance. If this doesn't point me in any particular direction, I'll be starting with the soapy water trick on both the passenger side struts.
Last edited by sbsyncro; Sep 3, 2019 at 07:12 PM.
Senior Member
Joined: Jul 2013
Posts: 401
Likes: 44
From: Cedar Rapids, IA
2009 e550 4Matic
Passenger side rear is not dropped in that picture. Its simply sitting lower because the front is sunk. I'm betting on a front passenger air strut.
When you get it home, turn it on and try and listen for a leak. If none detected, spray everything with soapy water. Strut connections, strut bag, connections at valve block and compressor.
When you get it home, turn it on and try and listen for a leak. If none detected, spray everything with soapy water. Strut connections, strut bag, connections at valve block and compressor.
MBWorld Fanatic!
Joined: Aug 2015
Posts: 1,059
Likes: 73
From: DC Metro Area
2007 Mercedes E550
Your strut is blown. It should be replaced, and it seems to happen to almost all of these cars. If you are handy, you can do it yourself and save thousands. There are lots of DIY videos out there that show step by step. Feel free to PM me if you have questions.
Thread Starter
Junior Member
Joined: Aug 2016
Posts: 41
Likes: 5
2006 e500
Thank you. Yes, I've spent the last few days watching videos and researching the various options (Arnott vs. OEM vs spring conversion, etc). Definitely want to stay with the airmatic system. Good to hear that its common for the rear to drop when the front goes (the driver's side rear is currently sitting about 1.5" higher than the passenger side rear, but it makes sense that losing the front would also drop the rear down some.
I'll bust out the spray bottle later today!

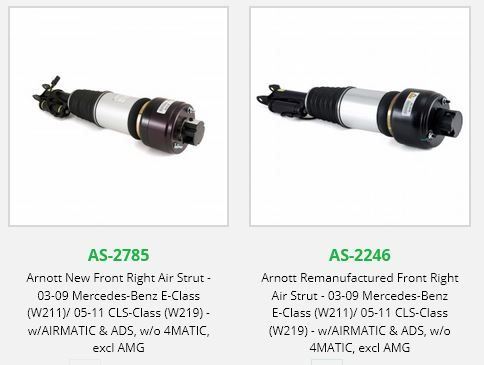

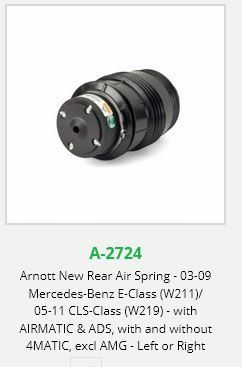

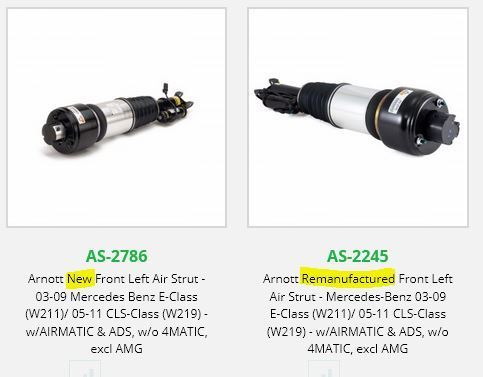

One question I have is which strut to get. When I go to Arnott's web site, the listing of options is confusing to me. Which car do I have? I don't have 4matic, and its not a wagon and its not an AMG. But the remaining 2 options sound very similar... (and I'm assuming I have ADS - thats the little "shock absorber" button that allows you to cycle through three levels of firmness, right?)
Member
Joined: Sep 2019
Posts: 159
Likes: 53
Mercedes-Benz S430, S500, S600, and E320 CDI
I just looked at Arnott's site. Looks like the two options do indeed have different part #'s for the AIRmatic struts. Better give them a call to be sure. I've talked with their customer support folks a couple of months ago, and they were rather helpful.
Trending Topics
Out Of Control!!
Joined: Jul 2003
Posts: 15,901
Likes: 4,630
From: North Scottsdale, AZ
'71 Pinto
06 e550 non-4matic - as a matter of reference OEM front left 2113206113, right 2113206013; rear 2113201525, 2113201625 use these # to cross reference when shopping aftermarket. Check online occasionally vendors offer cheaper pricing on Arnott part #s also, I believe Arnott direct offers a discount to members check with doug@arnott.com
Last edited by konigstiger; Sep 4, 2019 at 01:22 PM.
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Thread Starter
Junior Member
Joined: Aug 2016
Posts: 41
Likes: 5
2006 e500

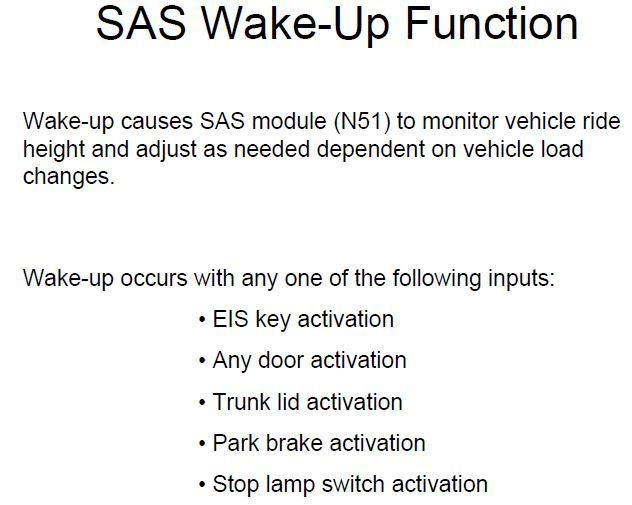

Thanks everyone. So the diagnostic procedure is confounding me a bit. When I turn on the key to position 2, I don't get any warning messages. When I start the car, I don't get any warning messages (despite the passenger front sitting down on the tire). I also don't hear a compressor running (does it only run when the engine is running, or should it run when the key is in position 2?). I had to drive for 5 minutes or so after the warning message - is it likely that I also burned out the compressor?
I know there's a fuse and relay somewhere that I suppose I should check, but I need better info on *when* the compressor *should* be running in order to get a more complete picture.
Thanks again for the help here. I'm watching online videos and reading tutorials, but for some reason I don't see any mention anywhere of *when* the compressor is supposed to run (ignition on or engine running).
I know there's a fuse and relay somewhere that I suppose I should check, but I need better info on *when* the compressor *should* be running in order to get a more complete picture.
Thanks again for the help here. I'm watching online videos and reading tutorials, but for some reason I don't see any mention anywhere of *when* the compressor is supposed to run (ignition on or engine running).
Thread Starter
Junior Member
Joined: Aug 2016
Posts: 41
Likes: 5
2006 e500
Thank you! So it sounds like the compressor should be kicking on when i open a door or insert a key and unless it is VERY quiet, its not running. I do hear some sort of coolant recirc pump pushing water through the heater hoses (?) but no compressor running... Time to bust out the volt meter...
Former Vendor of MBWorld
Joined: Jan 2012
Posts: 302
Likes: 29
From: Merritt Island, Florida
MERCEDES-BENZ CL-CLASS
Arnott no longer sells direct
I believe Arnott direct offers a discount to members check with doug@arnott.com
Former Vendor of MBWorld
Joined: Jan 2012
Posts: 302
Likes: 29
From: Merritt Island, Florida
MERCEDES-BENZ CL-CLASS
Contact Arnott Customer Support with your VIN for Exact Fitment
One question I have is which strut to get. When I go to Arnott's web site, the listing of options is confusing to me. Which car do I have? I don't have 4matic, and its not a wagon and its not an AMG. But the remaining 2 options sound very similar... (and I'm assuming I have ADS - thats the little "shock absorber" button that allows you to cycle through three levels of firmness, right?)
- In the EU, Russia, Middle East and Africa: https://www.arnotteurope.com/contacts
- In North America (and other regions not covered by Arnott Europe): https://www.arnottindustries.com/contacts
Thread Starter
Junior Member
Joined: Aug 2016
Posts: 41
Likes: 5
2006 e500
Yes, Mercedes did offer a bunch of suspension options and different OE numbers. Call or contact Arnott online with your Vehicle Identification Number (VIN) and customer support can quickly do a search to determine the exact model and correct part for your vehicle.
- In the EU, Russia, Middle East and Africa: https://www.arnotteurope.com/contacts
- In North America (and other regions not covered by Arnott Europe): https://www.arnottindustries.com/contacts

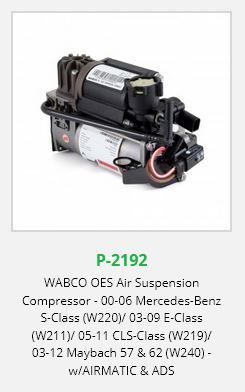

Looks like I burned out the compressor/pump (its not running at all), so I guess I have to replace that before I can diagnose which strut is bad. Fuse #45 has continuity, but I dont' really know how to test the pump other than that... Two hours of Google-fu and I'm no better informed on this specific question...
