E- Class W211 Water Pump Schematic

Thread Tools

Search this Thread

Rate Thread

Old Nov 9, 2020 | 03:48 PM
Share
  #1
goaboi's Avatar
goaboi
Thread Starter
Newbie

Joined: Jul 2019
Posts: 2
Likes: 4
E500 Base

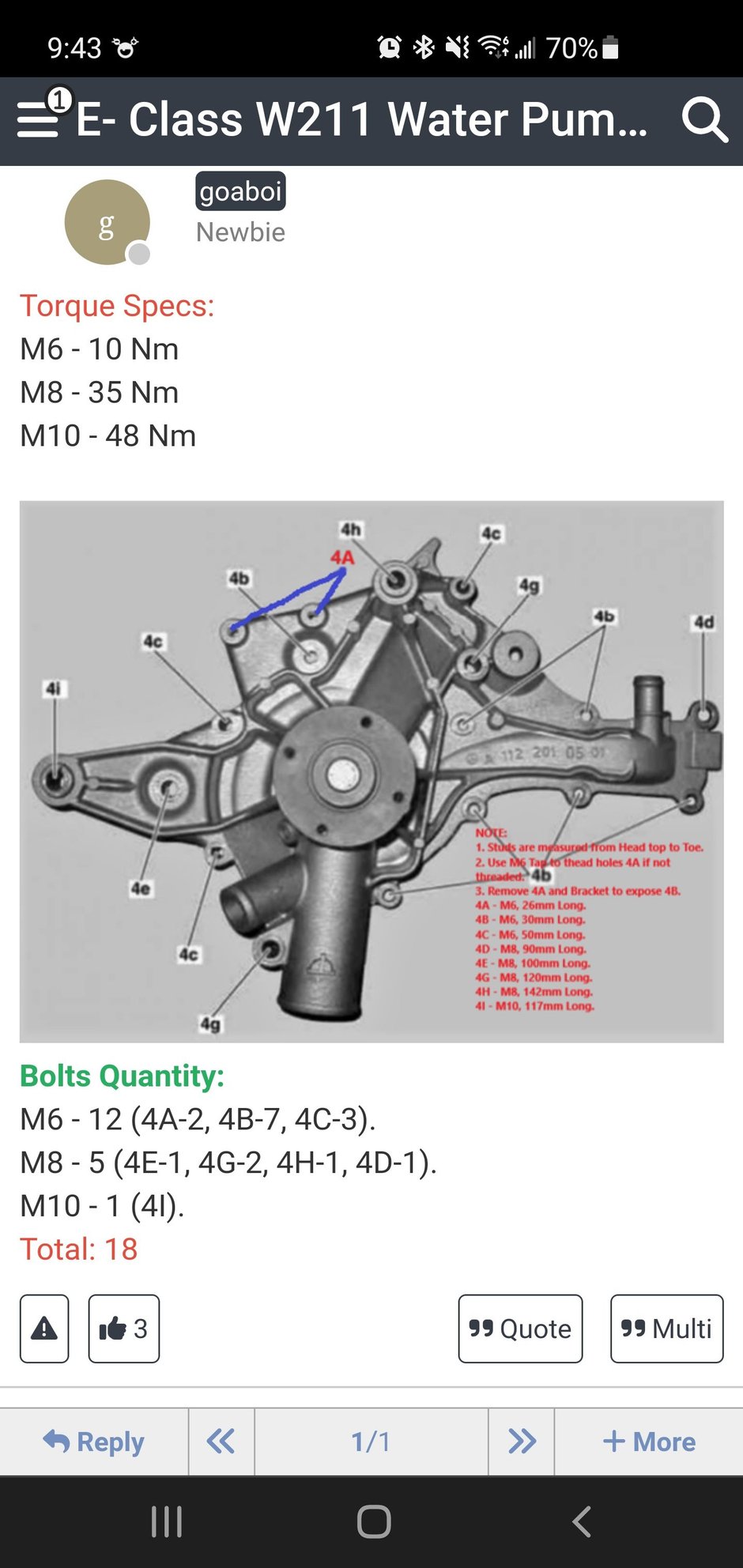

Smile E- Class W211 Water Pump Schematic
Torque Specs:
M6 - 10 Nm
M8 - 35 Nm
M10 - 48 Nm


Bolts Quantity:
M6 - 12 (4A-2, 4B-7, 4C-3).
M8 - 5 (4E-1, 4G-2, 4H-1, 4D-1).
M10 - 1 (4I).
Total: 18
Reply
4
Old Nov 13, 2020 | 09:48 AM
Share
  #2
NewShockerGuy's Avatar
NewShockerGuy
Super Member
10 Year Member
Liked
Loved
Community Favorite

Joined: Sep 2014
Posts: 916
Likes: 134
From: NOVA/DC
20' RCF, 18' NX, 09' E350, 07' Solara, 05' STi, 01' Ranger
Good information!

Thank you,
-Nigel
Reply
0
Old Nov 13, 2020 | 11:19 AM
Share
  #3
tjts1's Avatar
tjts1
MBWorld Fanatic!
5 Year Member
Liked
Loved
Community Favorite

Joined: May 2017
Posts: 2,290
Likes: 434
C320
This only applies to the m112 and m113 engine.
Reply
0
Old Jul 26, 2023 | 09:33 PM
Share
  #4
jonseal's Avatar
jonseal
Newbie

Joined: Sep 2022
Posts: 5
Likes: 2
From: Stuart, FL
2005 SL500, 2018 GLC300
Thanks so much for posting this! Couldn't find it any where.
Reply
0
Old Mar 17, 2025 | 11:48 AM
Share
  #5
Speed Mafia's Avatar
Speed Mafia
Newbie
Liked

Joined: Jan 2021
Posts: 7
Likes: 2
SL55 AMG
Question, i noticed on some of the bolts they are not "Threaded" i assume i need to run taps?
For example
M10 X 1.5 Metric Hand Tap, Right Hand
M8 X 1.25 Metric Hand Tap, Right Hand

I believe there is a video out there stating this information is correct. Thanks in advance.
Reply
0
Old Apr 3, 2025 | 11:17 AM
Share
  #6
CLSM113K's Avatar
CLSM113K
Junior Member
Liked

Joined: Feb 2024
Posts: 17
Likes: 0
CLS 55 AMG
Is the m10 bolt self tapping ? My new waterpump has also no thread on the double idler fastener. Wis says 68 nm ? (M113k)
Last edited by CLSM113K; Apr 3, 2025 at 11:18 AM.
Reply
0
Old Apr 3, 2025 | 11:33 AM
Share
  #7
Speed Mafia's Avatar
Speed Mafia
Newbie
Liked

Joined: Jan 2021
Posts: 7
Likes: 2
SL55 AMG
Originally Posted by CLSM113K
Is the m10 bolt self tapping ? My new waterpump has also no thread on the double idler fastener. Wis says 68 nm ? (M113k)
I tapped mine but my buddy from mercedes said you can use the bolt to tap...yes self tapping. I personally didn't want to take the chance 😕 so I tapped them
Reply
0

Trending Topics

Old Apr 3, 2025 | 11:38 AM
Share
  #8
CLSM113K's Avatar
CLSM113K
Junior Member
Liked

Joined: Feb 2024
Posts: 17
Likes: 0
CLS 55 AMG
Originally Posted by Speed Mafia
I tapped mine but my buddy from mercedes said you can use the bolt to tap...yes self tapping. I personally didn't want to take the chance 😕 so I tapped them
what torque spec did you use ? 68 nm ?
Reply
0
MB World Stories

The Best of Mercedes & AMG

story-0

6 Mercedes Models That Did NOT Age Well (But Are Somehow Still Cool)

 Verdad Gallardo
story-1

Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun

 Verdad Gallardo
story-2

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

 Verdad Gallardo
story-3

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

 Verdad Gallardo
story-4

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

 Verdad Gallardo
story-5

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

 Verdad Gallardo
story-6

Mercedes EQS Gets A Major Update: Everything You Need to Know

 Verdad Gallardo
story-7

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

 Verdad Gallardo
story-8

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

 Verdad Gallardo
story-9

10 Most Reliable Mercedes-Benz Models You Can Buy Used

 Verdad Gallardo
Old Apr 3, 2025 | 11:44 AM
Share
  #9
Speed Mafia's Avatar
Speed Mafia
Newbie
Liked

Joined: Jan 2021
Posts: 7
Likes: 2
SL55 AMG
Originally Posted by CLSM113K
what torque spec did you use ? 68 nm ?
I referred to this video



Reply
1
