How does the ABC sport setting work
hello
i have read a lot in this thread and maybe it is already explained but i have not seen it
in ABC sport is sets the car more firm on the road and the suspension is much harder
so as i think it should work is normally i will use the accumulator to get a sort of spring rate
but how does is it firm up this ?
it can not just shut the valve like in of position and it does not feel like that
if there is build up more pressure in the system it normally just raise the car up because the strut is a 1 way route
where the oil is going in
maybe somebody can explain how the oil system works in sport mode how does it keep the car comfortable and sporty in ABC sport?
Thanks
Very nice thread to read
i have read a lot in this thread and maybe it is already explained but i have not seen it
in ABC sport is sets the car more firm on the road and the suspension is much harder
so as i think it should work is normally i will use the accumulator to get a sort of spring rate
but how does is it firm up this ?
it can not just shut the valve like in of position and it does not feel like that
if there is build up more pressure in the system it normally just raise the car up because the strut is a 1 way route
where the oil is going in
maybe somebody can explain how the oil system works in sport mode how does it keep the car comfortable and sporty in ABC sport?
Thanks
Very nice thread to read
Junior Member
Joined: Jan 2019
Posts: 22
Likes: 8
From: St. Louis, MO
ML350, W221 S65
S65 ABC Flush Just Completed
Not sure if this is the right spot to post this, but I made a video of the ABC flush that I just did in my new (to me) 2012 S65. The car has 30k miles at the time of this flush. I used the AGA tool to make it easier. I purchased 11 liters of Pentosin at the local dealer ($30/liter) and a new filter. It all went pretty smoothly, but I was nervous as I had never done this before, only read about it on this and other forums.
I hope this video is helpful to those who have not done a flush before.
I'd love to hear feedback.
Thanks.
John
I hope this video is helpful to those who have not done a flush before.
I'd love to hear feedback.
Thanks.
John
Not sure if this is the right spot to post this, but I made a video of the ABC flush that I just did in my new (to me) 2012 S65. The car has 30k miles at the time of this flush. I used the AGA tool to make it easier. I purchased 11 liters of Pentosin at the local dealer ($30/liter) and a new filter. It all went pretty smoothly, but I was nervous as I had never done this before, only read about it on this and other forums.
I hope this video is helpful to those who have not done a flush before.
https://www.youtube.com/watch?v=PC1vDOcw54M
I'd love to hear feedback.
Thanks.
John
I hope this video is helpful to those who have not done a flush before.
https://www.youtube.com/watch?v=PC1vDOcw54M
I'd love to hear feedback.
Thanks.
John
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
Can you elaborate a bit more on what problems you used to have, exactly what work was performed, and by who, and when, what happened after the work was completed, was the pump primed, and are there any other symptoms, such as warning lights or an overflowing reservoir? ?
Nick
Nick
Newbie
Joined: Sep 2019
Posts: 10
Likes: 1
W221 S500mco Mercedes 2008
Abc
u might be the only that can help me with this problem the abc pump started leaking oil by the time it came up on dash and I noticed fresh pump oil on my driveway the suspension went hard but when topped it up with the correct oil it came back to normal unfortunately the 2nd time I filled it it stayed hard ever since it’s had numerous rodeos and other tests but no fault found no other lights on dash and no faults found still break your teeth on bumpy rd all this after several inependent garages and Mercedes’s themselves looked at it all back sensors replaced sure hope u can shed light on it
Newbie
Joined: Sep 2019
Posts: 10
Likes: 1
W221 S500mco Mercedes 2008
Abc
nick could u suggest what might be the cause of hard suspension on w221 S500mco Mercedes it was really smooth until a leak from abc pump fluid ran too low and suspension went hard replaced with new Mercedes abc pump but suspension stayed I’ve had numerous rodeo tests and replacement sensors but no change sometimes suspension is raised at front driver side wheel and lower at rear passenger side I’ve almost given up on resolving this problem
MBWorld Fanatic!
Joined: May 2010
Posts: 1,027
Likes: 55
05 E55 AMG, E320 CDI, Turbo E46 M3,IS300 2JZGTE,VQ35 Turbo Maxima, Mercedes 300D
Nick
Thank you for taking so much time to document everything like you have. I have an SL65 and have weeping from a couple of lines that disappear up into the engine bay right in front of the engine. I am guessing that these lines go to the hydraulic pump, is that right? I have tried to scour the WIS and EPC but cannot clearly narrow down which one it is ... it disappears into a very tight space somewhere between the reservoir and the pump. Many of the pics in this thread unfortunately appear to be broken (at least I can't see them) and those I can see don't appear to match those on my car.
The hoses forward of those appear to be bone dry .. they go from the front valve block to each side, so I don't think I'll touch those for now since they are dry.
Would appreciate any help here.
Cheers
Thank you for taking so much time to document everything like you have. I have an SL65 and have weeping from a couple of lines that disappear up into the engine bay right in front of the engine. I am guessing that these lines go to the hydraulic pump, is that right? I have tried to scour the WIS and EPC but cannot clearly narrow down which one it is ... it disappears into a very tight space somewhere between the reservoir and the pump. Many of the pics in this thread unfortunately appear to be broken (at least I can't see them) and those I can see don't appear to match those on my car.
The hoses forward of those appear to be bone dry .. they go from the front valve block to each side, so I don't think I'll touch those for now since they are dry.
Would appreciate any help here.
Cheers
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
MBWorld Fanatic!
Joined: May 2010
Posts: 1,027
Likes: 55
05 E55 AMG, E320 CDI, Turbo E46 M3,IS300 2JZGTE,VQ35 Turbo Maxima, Mercedes 300D
Hi all I managed to remove the connection pipe from the tandem pump. The banjo bolt on it was super tight. There is a double banjo that goes into the pump. I had to use a long breaker bar and 1/2" extensions that could poke through a plastic cover from the front control arm to break it loose. It was definitely not designed for serviceability.
I took the hose to a local shop and they said they could not compression fit onto the banjo side as there was not enough length of pipe. I took it to another place to see if they could braze a solid pipe on and then I could fit the hose. The guy pointed out that I have some additional crimps on the pipe (in red) Does anyone know what these crimps are? The guy mentioned that they could be restrictors but I have no idea. Would it be bad to just put a hose there? I don't mind getting a new hose, but I thought I'd save some $$ and then also could select higher grade hydraulic hose.
Thanks
I took the hose to a local shop and they said they could not compression fit onto the banjo side as there was not enough length of pipe. I took it to another place to see if they could braze a solid pipe on and then I could fit the hose. The guy pointed out that I have some additional crimps on the pipe (in red) Does anyone know what these crimps are? The guy mentioned that they could be restrictors but I have no idea. Would it be bad to just put a hose there? I don't mind getting a new hose, but I thought I'd save some $$ and then also could select higher grade hydraulic hose.
Thanks
Last edited by turbo97se; Oct 18, 2019 at 07:32 PM.
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
hello
i have read a lot in this thread and maybe it is already explained but i have not seen it
in ABC sport is sets the car more firm on the road and the suspension is much harder
so as i think it should work is normally i will use the accumulator to get a sort of spring rate
but how does is it firm up this ?
it can not just shut the valve like in of position and it does not feel like that
if there is build up more pressure in the system it normally just raise the car up because the strut is a 1 way route
where the oil is going in
maybe somebody can explain how the oil system works in sport mode how does it keep the car comfortable and sporty in ABC sport?
Thanks
Very nice thread to read
i have read a lot in this thread and maybe it is already explained but i have not seen it
in ABC sport is sets the car more firm on the road and the suspension is much harder
so as i think it should work is normally i will use the accumulator to get a sort of spring rate
but how does is it firm up this ?
it can not just shut the valve like in of position and it does not feel like that
if there is build up more pressure in the system it normally just raise the car up because the strut is a 1 way route
where the oil is going in
maybe somebody can explain how the oil system works in sport mode how does it keep the car comfortable and sporty in ABC sport?
Thanks
Very nice thread to read
Firstly, the dampers are set to firm. There is an electrical control that goes into the top of the strut. This is nothing to do with the hydraulics.
Secondly, the roll control compensation is increased in sport mode, so that body roll is reduced.
Regards,
Nick
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
u might be the only that can help me with this problem the abc pump started leaking oil by the time it came up on dash and I noticed fresh pump oil on my driveway the suspension went hard but when topped it up with the correct oil it came back to normal unfortunately the 2nd time I filled it it stayed hard ever since it’s had numerous rodeos and other tests but no fault found no other lights on dash and no faults found still break your teeth on bumpy rd all this after several inependent garages and Mercedes’s themselves looked at it all back sensors replaced sure hope u can shed light on it
Thing is, the conventional springs and dampers are still there even when something goes wrong with ABC. The usual fault symptom is the "tuna boat" ride - it gets bouncy and wallowing and rolls, but it doesn't get harsh.
I can't explain your observations very well. The best I can suggest is to replace the accumulators, and change the suspension oil and filter.
If that doesn't help, take a very close look at the suspension level control linkages. They're prone to seizing, and in the short term that can degrade the ride.
Nick
Thread Starter
MBWorld Fanatic!
Joined: Nov 2010
Posts: 2,605
Likes: 343
From: Welwyn, Herts, UK
2006 S600
Hi all I managed to remove the connection pipe from the tandem pump. The banjo bolt on it was super tight. There is a double banjo that goes into the pump. I had to use a long breaker bar and 1/2" extensions that could poke through a plastic cover from the front control arm to break it loose. It was definitely not designed for serviceability.
I took the hose to a local shop and they said they could not compression fit onto the banjo side as there was not enough length of pipe. I took it to another place to see if they could braze a solid pipe on and then I could fit the hose. The guy pointed out that I have some additional crimps on the pipe (in red) Does anyone know what these crimps are? The guy mentioned that they could be restrictors but I have no idea. Would it be bad to just put a hose there? I don't mind getting a new hose, but I thought I'd save some $$ and then also could select higher grade hydraulic hose.
Thanks
I took the hose to a local shop and they said they could not compression fit onto the banjo side as there was not enough length of pipe. I took it to another place to see if they could braze a solid pipe on and then I could fit the hose. The guy pointed out that I have some additional crimps on the pipe (in red) Does anyone know what these crimps are? The guy mentioned that they could be restrictors but I have no idea. Would it be bad to just put a hose there? I don't mind getting a new hose, but I thought I'd save some $$ and then also could select higher grade hydraulic hose.
Thanks
The high pressure fluid that comes out of the pump has a relatively low flow rate, and I don't think it needs restricting (as if that would do any good). The banjo itself acts as a restrictor to some extent, but in any case the hose feeds the pressure control valve and accumulator, and they do the hydraulics conditioning.
If you don't have room to connect a compression fitting, try cutting off the crimp and using the pipe inside, like this
:
Nick
Last edited by Welwynnick; Oct 19, 2019 at 05:26 AM.
MBWorld Fanatic!
Joined: May 2010
Posts: 1,027
Likes: 55
05 E55 AMG, E320 CDI, Turbo E46 M3,IS300 2JZGTE,VQ35 Turbo Maxima, Mercedes 300D
Nick
Thank you for the picture and sharing your thoughts here. I took more pictures to share:

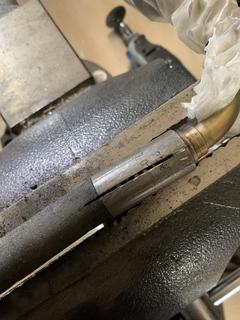

Below, I dremeled (made 4 cuts) through the crimp. There are ribs that compress the hose even more. Once you cut through those, then stop cutting. I then used a screw driver and pliers to break them off at the end. I was doing this carefully as I have not done this before.

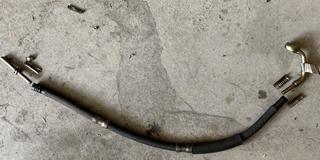

Below is what the whole hose looks like when cut apart. I am going to ask the shop to put a line in the same length as this line. After that, I am going to cut this one open and see what those additional crimps are actually doing. There is an outer rubber "jacket" on the hose ... I think one of them is just preventing the outer jacket from moving.

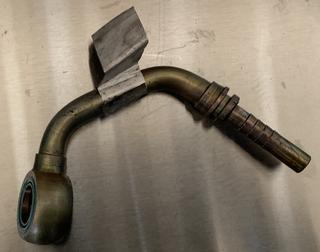

Below is a close up of the banjo fitting:
