W221 Rear diffuser
MBWorld Fanatic!
Joined: Dec 2001
Posts: 3,430
Likes: 187
From: USA
W140 Mercedes S350, W221 S550 sport
To make this less confusing. Is it true that as long as you have a 2007-2009 or 2010-2013 "AMG sport package" rear bumper, that the diffuser from the S63 will fit any of those AMG sport package bumpers?
Thread Starter
Junior Member
Joined: Oct 2013
Posts: 21
Likes: 0
S320L CDI
JT.S550, you mentioned that your cousin succesfully put these onto a 2007 s320 long wheel base. Was this a UK car?
Are the part numbers for the UK?
Also, The exhaust company mentioned that no quad mufflers would fit this car without removing the rear boxes. Was this your experience as well?
Many Thanks
Member
Joined: Apr 2012
Posts: 138
Likes: 0
From: Scarsdale
Mercedes GL conversion
A quick update... I called MB and tried to order the parts mentioned above. They have part 2218852225 (lower diffuser), but have no record of part 2218853225 on their system! JT.S550, you mentioned that your cousin succesfully put these onto a 2007 s320 long wheel base. Was this a UK car? Are the part numbers for the UK? Also, The exhaust company mentioned that no quad mufflers would fit this car without removing the rear boxes. Was this your experience as well? Many Thanks
Thread Starter
Junior Member
Joined: Oct 2013
Posts: 21
Likes: 0
S320L CDI

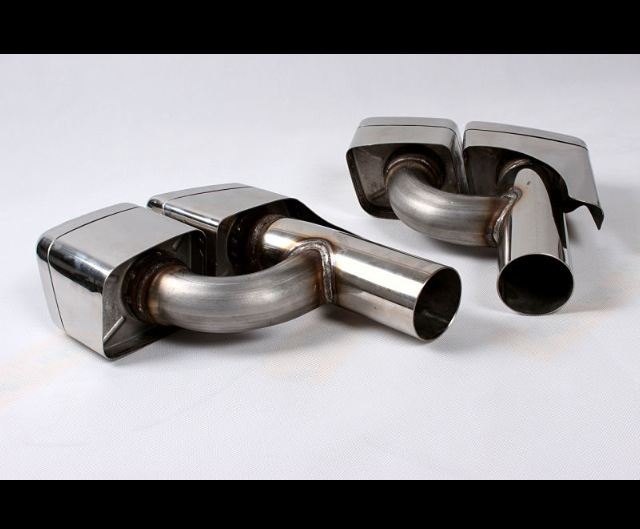

I have received my quad tailpipes and rear diffuser now. I am due to get them fitted in the next few days. Can anyone advise me what the advantages / disadvantages are of removing the rear back boxes when fitting the new tailpipes?
A mechanic told me that removing them would damage the car in the long run. Is this true?
Another tuning shop said I should remove them! So confusing!!!
I have a 2008 s320 cdi long wheelbase
A mechanic told me that removing them would damage the car in the long run. Is this true?
Another tuning shop said I should remove them! So confusing!!!
I have a 2008 s320 cdi long wheelbase
Member
Joined: Apr 2012
Posts: 138
Likes: 0
From: Scarsdale
Mercedes GL conversion
I don't understand what boxes, it's the tail pipe on the muffler that you cut so you can fit the muffler tip, when you put the diffuser on then you can see how much of pipe to cut to fit the tip
Thread Starter
Junior Member
Joined: Oct 2013
Posts: 21
Likes: 0
S320L CDI
Sorry I did not really explain that well at all.
What I meant was the resonators (silencer boxes).
Has anyone done this? Does it cause an issues removing them?
The last thing I want is a horrid farting noise!
MB World Stories
The Best of Mercedes & AMG
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
Mercedes Teases Updated EQS With Steer-By-Wire and a Yoke
Verdad Gallardo
8 Mercedes Models With Poor Reliability Records
Verdad Gallardo
Thread Starter
Junior Member
Joined: Oct 2013
Posts: 21
Likes: 0
S320L CDI
Hi JT.S550,
I managed to get the rear diffuser and center piece from Mercedes (exact part numbers mention). I took them to the garage to get installed with my Muffler tailpipes but got told that the rear diffuser is 3/4 of an inch too long!
I am stuck with a painter centre piece but should be able to return the larger diffuser hopefully
Are you sure your cousin installed that exact part onto an S320 CDI long wheel base?
I am not sure if the garage is doing something wrong but they claimed to have tried for over an hour to fit it with no joy!
They also cut off my rear resonator boxes and had to re-fit it all back to standard
Thread Starter
Junior Member
Joined: Oct 2013
Posts: 21
Likes: 0
S320L CDI
Hi JT.S550,
I managed to get the rear diffuser and center piece from Mercedes (exact part numbers mention). I took them to the garage to get installed with my Muffler tailpipes but got told that the rear diffuser is 3/4 of an inch too long!
I am stuck with a painter centre piece but should be able to return the larger diffuser hopefully
Are you sure your cousin installed that exact part onto an S320 CDI long wheel base?
I am not sure if the garage is doing something wrong but they claimed to have tried for over an hour to fit it with no joy!
They also cut off my rear resonator boxes and had to re-fit it all back to standard
I managed to get the rear diffuser and center piece from Mercedes (exact part numbers mention). I took them to the garage to get installed with my Muffler tailpipes but got told that the rear diffuser is 3/4 of an inch too long!
I am stuck with a painter centre piece but should be able to return the larger diffuser hopefully
Are you sure your cousin installed that exact part onto an S320 CDI long wheel base?
I am not sure if the garage is doing something wrong but they claimed to have tried for over an hour to fit it with no joy!
They also cut off my rear resonator boxes and had to re-fit it all back to standard

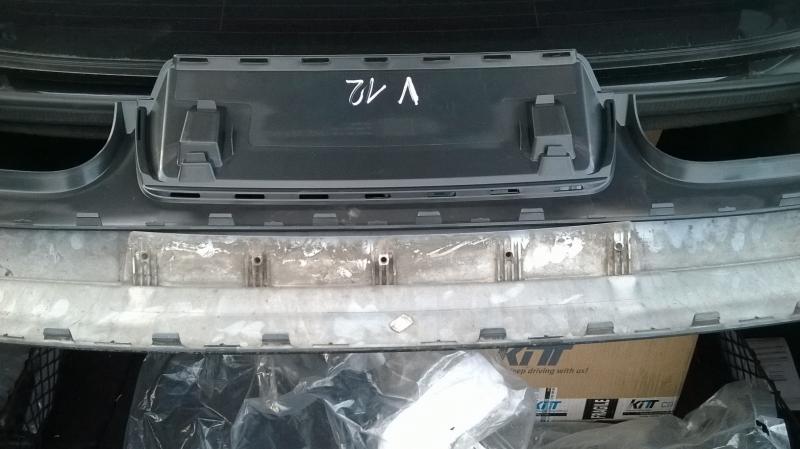

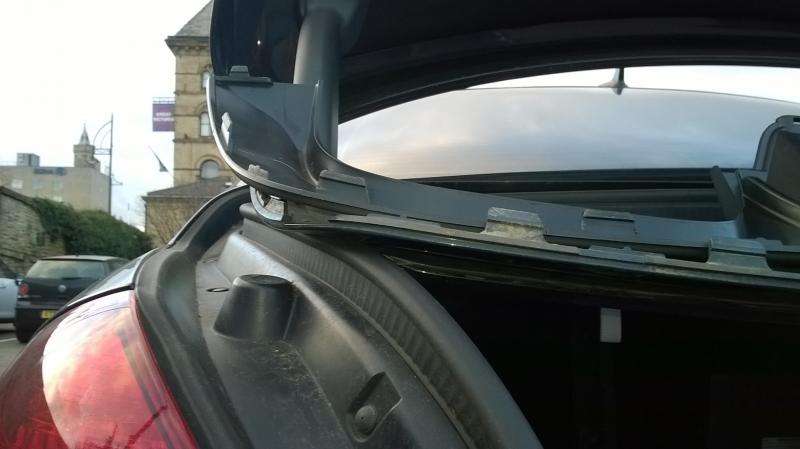

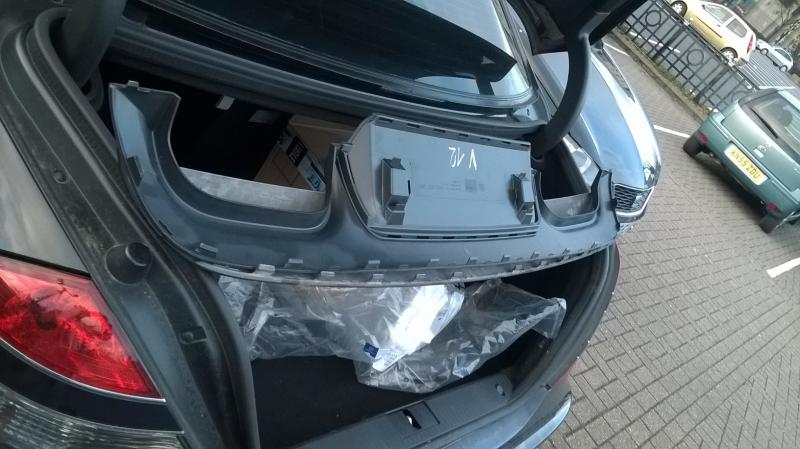

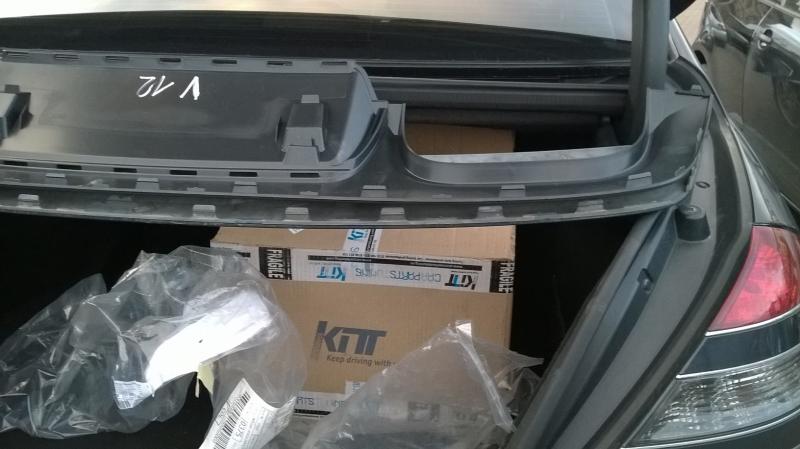

Images attached of the new and old rear diffuser. You can see that the fittings are not aligned correctly and that the new one (V12 symbol on it) is about an inch longer.

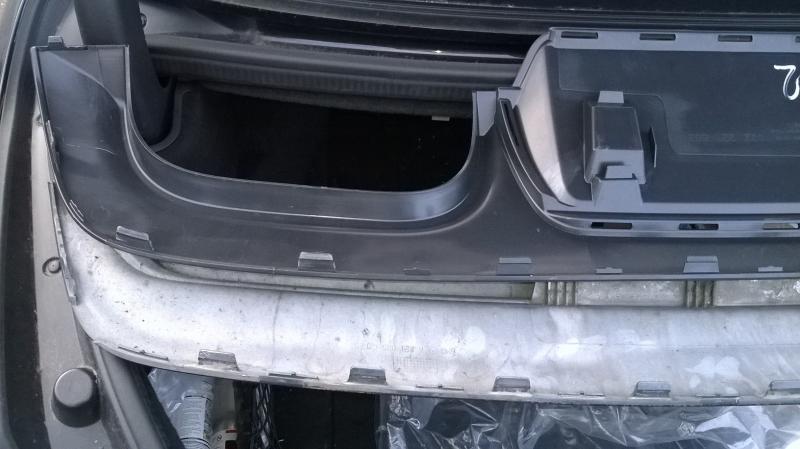

I have placed the new diffuser on top of the old one.
