W221 headlight retrofit with OEM SAM - 2024
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
If you mean you can read logic boards schematics and tell me what to change I can do that.
I still want use old SAM. Is it possible to have it work with old SAM?
CAN module is discontinued unfortunately so it's not available online. But I can share it's connected and what changes was done inside the SAM:
CAN module work as 'man-in-the-middle' method and it converts CAN signals between SAM and XALWA.
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
https://www.ckmcardes********/s-clas...sen-adapterkit
Here, in the EU this solution is named "Chinese solution". If only position/parking lights not working, you can install resistors.
It's far too complicated ( for me ) and of course far beyond any safety. All that is based on the folklore regarding " coding is hard".
Sorry, I can help only if you install the facelift SAM.
Here, in the EU this solution is named "Chinese solution". If only position/parking lights not working, you can install resistors.
It's far too complicated ( for me ) and of course far beyond any safety. All that is based on the folklore regarding " coding is hard".
Sorry, I can help only if you install the facelift SAM.
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
https://www.ckmcardes********/s-clas...sen-adapterkit
Here, in the EU this solution is named "Chinese solution". If only position/parking lights not working, you can install resistors.
It's far too complicated ( for me ) and of course far beyond any safety. All that is based on the folklore regarding " coding is hard".
Sorry, I can help only if you install the facelift SAM.
Here, in the EU this solution is named "Chinese solution". If only position/parking lights not working, you can install resistors.
It's far too complicated ( for me ) and of course far beyond any safety. All that is based on the folklore regarding " coding is hard".
Sorry, I can help only if you install the facelift SAM.
1. Batteries are different thus different protocols to operate with them: 35Ah vs 95Ah AGM under the hood, 95Ah AGM vs none in the trunk, and none vs ~10Ah in the dashboard).
2. Consumer shutoff doesn't work properly (lamps in the doors and cigarette lighter relays are turn on and off very quickly (like a strobe) instead of shut off.
3. A constant errors about F32k2 quiescent current relay
PS: For parking lights if resistors can solve it why coding can't do that?
Last edited by Plato; Nov 10, 2024 at 06:58 PM.
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
There is a domain named BMS - battery management bla, bla, where you can code the battery. Just one relay from consumer shout off will strobe a little but will stop every time with no problems.
Quiescent current can be coded as well from battery sensor domain
The resistor is needed on old SAM because there is no option for coding the positions.
Quiescent current can be coded as well from battery sensor domain
The resistor is needed on old SAM because there is no option for coding the positions.
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
Could you please share coding instructions to have facelift SAM properly work with old car' batteries? If it's smth really realistic and relevant I would revert back to facelift SAM (I still have it and all lighting works ok when it's installed).
1. Batteries are different thus different protocols to operate with them: 35Ah vs 95Ah AGM under the hood, 95Ah AGM vs none in the trunk, and none vs ~10Ah in the dashboard).
2. Consumer shutoff doesn't work properly (lamps in the doors and cigarette lighter relays are turn on and off very quickly (like a strobe) instead of shut off.
3. A constant errors about F32k2 quiescent current relay
PS: For parking lights if resistors can solve it why coding can't do that?
1. Batteries are different thus different protocols to operate with them: 35Ah vs 95Ah AGM under the hood, 95Ah AGM vs none in the trunk, and none vs ~10Ah in the dashboard).
2. Consumer shutoff doesn't work properly (lamps in the doors and cigarette lighter relays are turn on and off very quickly (like a strobe) instead of shut off.
3. A constant errors about F32k2 quiescent current relay
PS: For parking lights if resistors can solve it why coding can't do that?
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
Could you please tell me how exactly it can be coded?
PS (IMPORTANT): If I solve parking lights is it possible to code DLR to work properly? Since old car also had DLR but different type.
Last edited by Plato; Nov 10, 2024 at 07:39 PM.
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
I saw BMS under SAM in DAS - it's not as a separate module and there is no way code there smth. Or do you need coding trough DTS Monaco? Or could you please tell me how exactly it can be coded?
Two of the will strobe in rear SAM + lights in doors and trunk... I had that with my facelifit SAM
Could you please tell me how exactly it can be coded?
Do you remember what bulb was in 2008 W221 as parking light so I can find a proper resistance to try?
PS (IMPORTANT): If I solve parking lights is it possible to code DLR to work properly? Since old car also had DLR but different type.
Two of the will strobe in rear SAM + lights in doors and trunk... I had that with my facelifit SAM
Could you please tell me how exactly it can be coded?
Do you remember what bulb was in 2008 W221 as parking light so I can find a proper resistance to try?
PS (IMPORTANT): If I solve parking lights is it possible to code DLR to work properly? Since old car also had DLR but different type.
I never installed resistors so I can't tell you the values, but any Chinese installer should know.
Under PWM voltage the resistor will be very hot
About coding, is always related to the SW and HW. It's not a universal solution.
If you install facelift SAM, I can show you how to save the coding ( with Vediamo or DTS Monaco software) in such a way to see the variants.
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
Also wondering is resistor will solve parking lights why there is no errors in DAS or on screen...?? When I activate paring light in XALWA errors appear... But when I turn light on it doesn't
MB World Stories
The Best of Mercedes & AMG
Manual Mercedes? 6 Times Sindelfingen Let Drivers Have All The Fun
Verdad Gallardo
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren
Verdad Gallardo
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine
Verdad Gallardo
Flawlessly Restored Mercedes 190E Evo II Heads to Auction
Verdad Gallardo
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know
Verdad Gallardo
Mercedes EQS Gets A Major Update: Everything You Need to Know
Verdad Gallardo
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve
Verdad Gallardo
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping
Verdad Gallardo
10 Most Reliable Mercedes-Benz Models You Can Buy Used
Verdad Gallardo
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
With old SAM you will need resistors and the DRL will never work as DRL, it can only work as Fog with resistors as well ( why you keep saying DLR, I am curious). Any function with resistors is not safe and may be not legal as well.
I never installed resistors so I can't tell you the values, but any Chinese installer should know.
Under PWM voltage the resistor will be very hot
About coding, is always related to the SW and HW. It's not a universal solution.
If you install facelift SAM, I can show you how to save the coding ( with Vediamo or DTS Monaco software) in such a way to see the variants.
I never installed resistors so I can't tell you the values, but any Chinese installer should know.
Under PWM voltage the resistor will be very hot
About coding, is always related to the SW and HW. It's not a universal solution.
If you install facelift SAM, I can show you how to save the coding ( with Vediamo or DTS Monaco software) in such a way to see the variants.
But what about those ILS functions what was available in old headlights and those available in new (like adaptive fog light, highway light, etc). Do you mean you can also code it so I don't need my CAN module in fact if I install facelift SAM?
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
Thank you for your time. Much appreciated for this continued and meaningful conversation.
But what about those ILS functions what was available in old headlights and those available in new (like adaptive fog light, highway light, etc). Do you mean you can also code it so I don't need my CAN module in fact if I install facelift SAM?
But what about those ILS functions what was available in old headlights and those available in new (like adaptive fog light, highway light, etc). Do you mean you can also code it so I don't need my CAN module in fact if I install facelift SAM?
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
MBWorld Fanatic!
Joined: Aug 2014
Posts: 5,319
Likes: 1,675
S500
I have a specialist near me that has only done Merc high end retrofits for the last 20 years - many times he specifically told me he has done lots of facelift headlight conversions to old 221s and he told me (and he showed me a CGW he keeps just for this process), he fits a later gateway pulls in the files and SCNs the later options to early cars - then refits the original CGW - maybe he can do it this way as he has paid online Xentry....
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
I have a specialist near me that has only done Merc high end retrofits for the last 20 years - many times he specifically told me he has done lots of facelift headlight conversions to old 221s and he told me (and he showed me a CGW he keeps just for this process), he fits a later gateway pulls in the files and SCNs the later options to early cars - then refits the original CGW - maybe he can do it this way as he has paid online Xentry....
Newbie
Joined: Dec 2024
Posts: 4
Likes: 0
I made hundreds of headlights retrofit on w221.

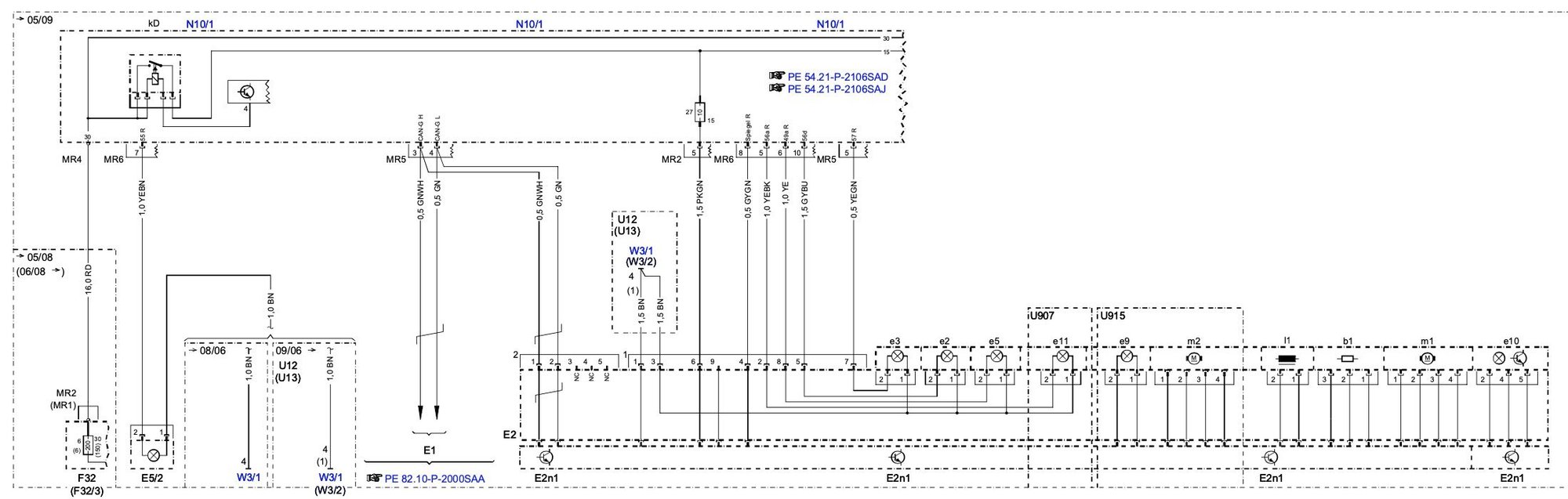

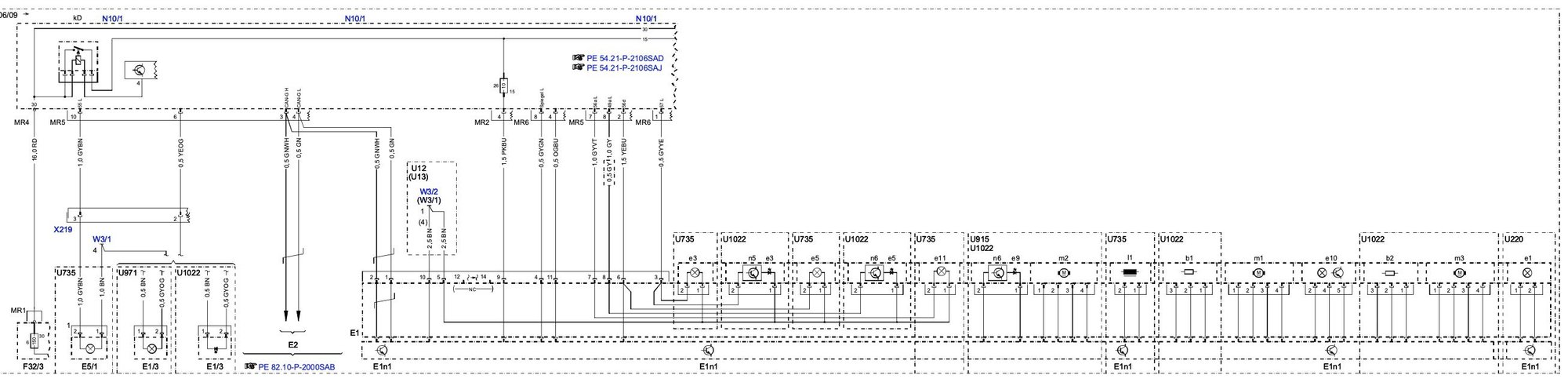

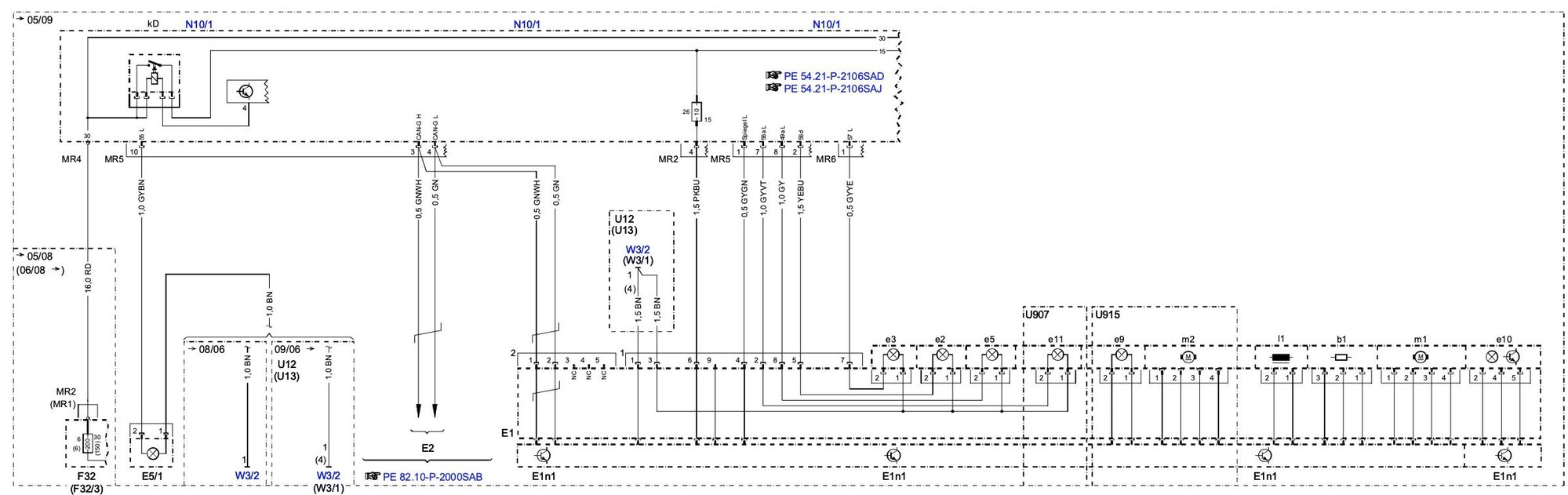

Only need facelift SAM ( the one with plastic cover) and the wiring accordingly with the facelift schematics, no any adapters needed.
All functions works, ILS, DRL, even the Battery management can be coded.
There are several wires that need to be added and most of them need to be re-routed on SAM side.to have the facelift configuration.
Only need facelift SAM ( the one with plastic cover) and the wiring accordingly with the facelift schematics, no any adapters needed.
All functions works, ILS, DRL, even the Battery management can be coded.
There are several wires that need to be added and most of them need to be re-routed on SAM side.to have the facelift configuration.
Hello, iam doing conversion, can u share what need to cross in sam front? I got facelift sam f. Best regards
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
Some knowledge is required to find and especially to understand WIS schematics
Newbie
Joined: Dec 2024
Posts: 4
Likes: 0
MBWorld Fanatic!
Joined: Dec 2011
Posts: 1,698
Likes: 490
From: Spain UTC/GMT +2 hours
W213 All-terrain
Thread Starter
Member
Joined: Oct 2021
Posts: 116
Likes: 14
W221 S500
@BOTUS @trigital or anyone else could you please disclose what dose these settings in retrofit SAM mean? What exactly they enable/disable?
Kurvenlicht Substitution
Kurvenlicht Substitution Nebelscheinwerfer
Retriggerzeit Scheinwerferaufschaltung
Ersatzlichtfunktion aktiv
Kurvenlicht Substitution
Kurvenlicht Substitution Nebelscheinwerfer
Retriggerzeit Scheinwerferaufschaltung
Ersatzlichtfunktion aktiv
