wiring diagram
Thread Starter
MBWorld Fanatic!
Joined: Nov 2015
Posts: 1,685
Likes: 820
From: Newcastle, WA
2019 S63 4Matic+, 2018 E400 Cabrio, wardens car.
wiring diagram

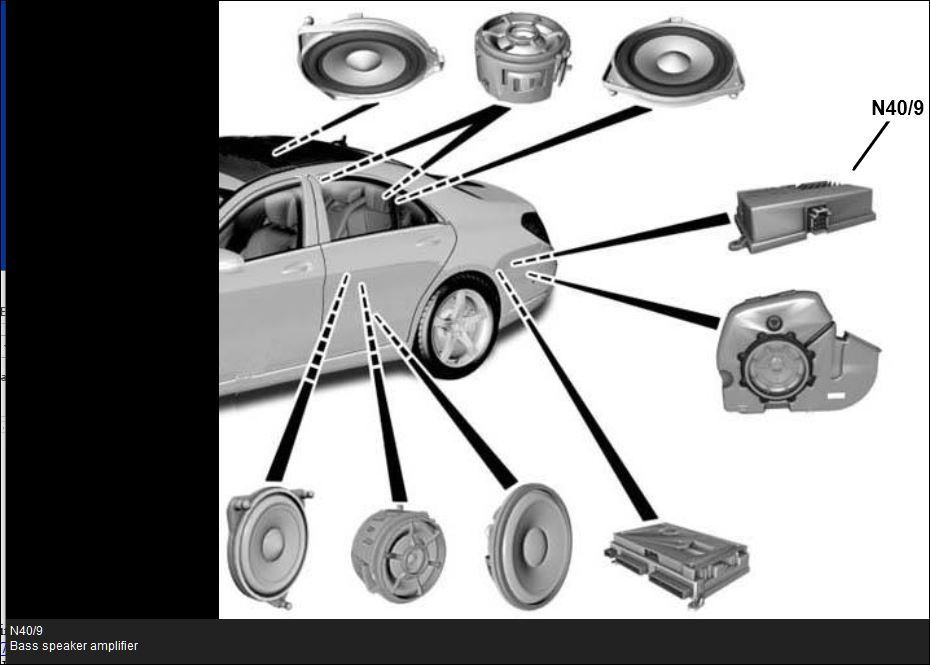

Interested in upgrading the sub amp in my 2019 S63 with Burmester 3D. I understand that the trunk mounted sub has a separate amplifier PN# 222-827-00-62 that only drives the sub. This is ideal if I can find out what the signal is going into this amp and the rest of the wiring for this unit as it will make the upgrade pretty simple. Worst case I can just grab the positive and negative going to the existing sub and send that to an audio control LOC and then to my JL sub amp and then just find 12V to drive the LOC and hook the new sub amp directly to the battery. I am also planning on replacing the factory 8" sub with a new more robust sub and reinforcing the trunk mounted enclosure along with some additional sound deadening. This will theoretically be an invisible upgrade but I will have a bass knob in the cabin that will let me adjust the sub bass. The 3D system is incredible but there are certain tracks that still really lack that ompf of bass and I want some more control over this. Plus I have all of this gear sitting in my garage from my last build so the cost is basically a few bucks for some misc. parts. So, any idea where I could get a schematic for this little factory sub amp?
MBWorld Fanatic!
Joined: Aug 2007
Posts: 1,823
Likes: 792
From: Pacific Northwest
2001 S600 V12 Sold, 2011 Jaguar XFR Sold, 2017 S550 4-Matic, 2018 S63 AMG Sedan
I'd love to see your car sometime. I'm in Normandy Park but drive to Bellevue and Tukwila for work regularly. If you're ever open to it, let me know.
MBWorld Fanatic!
Joined: Dec 2006
Posts: 6,497
Likes: 335
From: Europe
223.168 & 213.012 & 906.633 & 214.005
Interested in upgrading the sub amp in my 2019 S63 with Burmester 3D. I understand that the trunk mounted sub has a separate amplifier PN# 222-827-00-62 that only drives the sub. This is ideal if I can find out what the signal is going into this amp and the rest of the wiring for this unit as it will make the upgrade pretty simple. Worst case I can just grab the positive and negative going to the existing sub and send that to an audio control LOC and then to my JL sub amp and then just find 12V to drive the LOC and hook the new sub amp directly to the battery. I am also planning on replacing the factory 8" sub with a new more robust sub and reinforcing the trunk mounted enclosure along with some additional sound deadening. This will theoretically be an invisible upgrade but I will have a bass knob in the cabin that will let me adjust the sub bass. The 3D system is incredible but there are certain tracks that still really lack that ompf of bass and I want some more control over this. Plus I have all of this gear sitting in my garage from my last build so the cost is basically a few bucks for some misc. parts. So, any idea where I could get a schematic for this little factory sub amp?
Thread Starter
MBWorld Fanatic!
Joined: Nov 2015
Posts: 1,685
Likes: 820
From: Newcastle, WA
2019 S63 4Matic+, 2018 E400 Cabrio, wardens car.

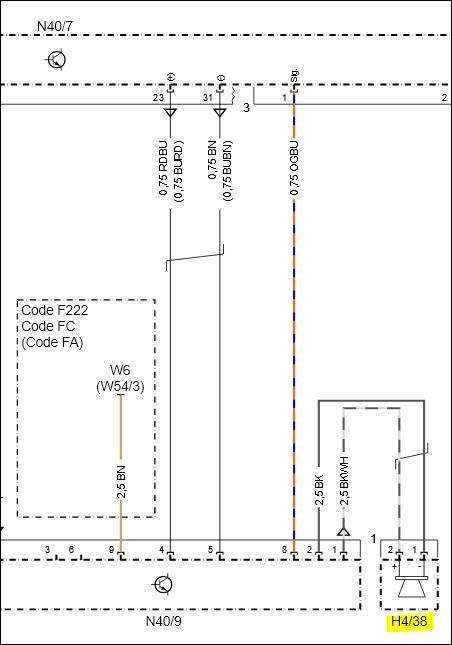

Thanks Diesel, this schematic does not include the optional 3D Burmester trunk sub. I can see the description but the schematic does not have it that I can see.
