W222 Standard Burmester wiring diagram
Hello All, i'm going to be attempting my audio upgrade this weekend. i'm going to add a sub in the trunk. does anyone know where a wiring diagram for the speakers on the standard burmester is located (PDF). I've seen people say its the blue wires. I'd like to use both the left floor panel and right one to go into the Helix Hi/Low converter. thanks.
MBWorld Fanatic!
Joined: Aug 2007
Posts: 1,823
Likes: 792
From: Pacific Northwest
2001 S600 V12 Sold, 2011 Jaguar XFR Sold, 2017 S550 4-Matic, 2018 S63 AMG Sedan
Hello All, i'm going to be attempting my audio upgrade this weekend. i'm going to add a sub in the trunk. does anyone know where a wiring diagram for the speakers on the standard burmester is located (PDF). I've seen people say its the blue wires. I'd like to use both the left floor panel and right one to go into the Helix Hi/Low converter. thanks.
MBWorld Fanatic!
Joined: Nov 2015
Posts: 1,685
Likes: 820
From: Newcastle, WA
2019 S63 4Matic+, 2018 E400 Cabrio, wardens car.

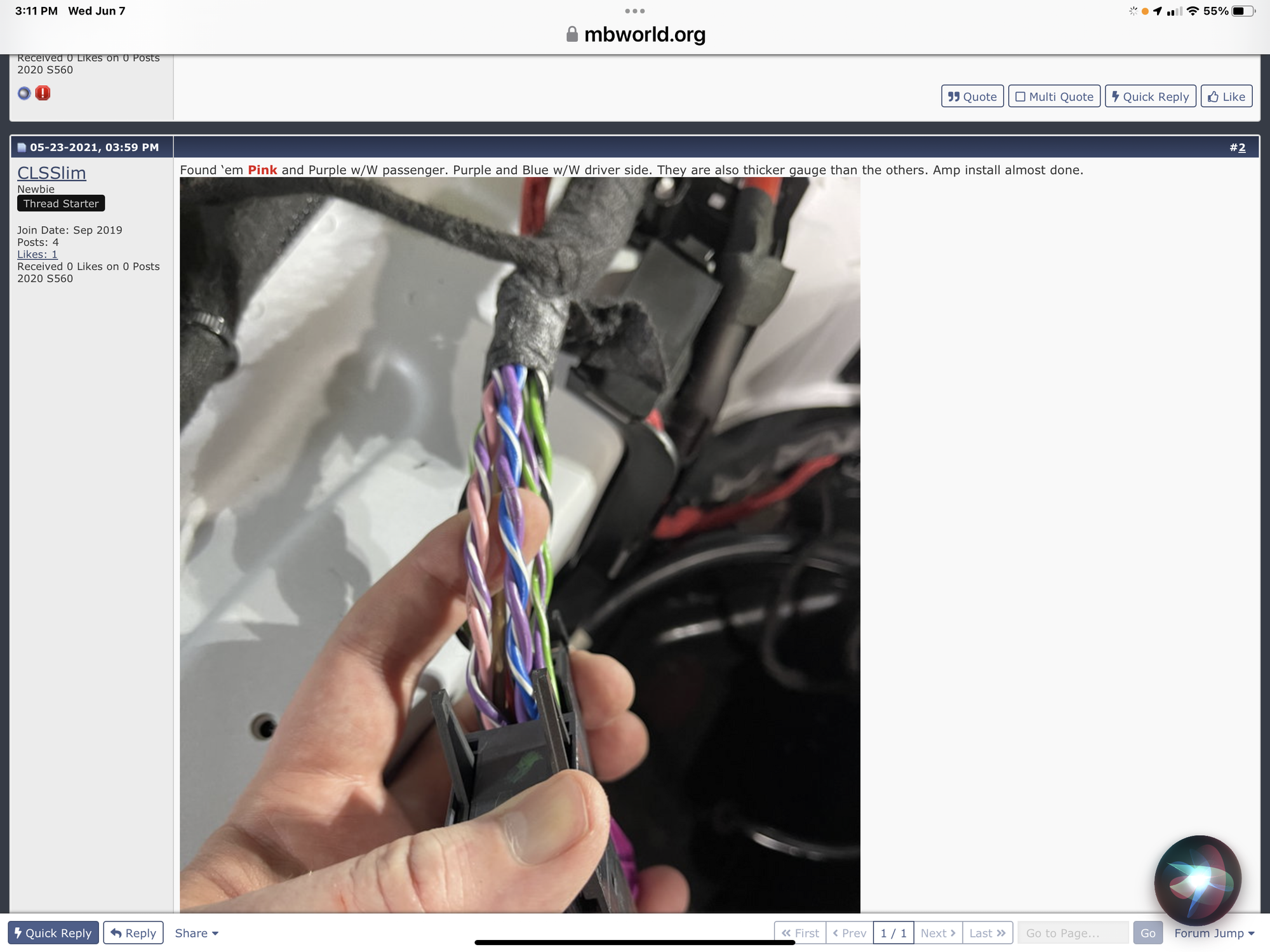

The Blue/Blue White pair and the Brown/Brown White pair are the left and right front sub channels on the standard Burmester Amp located in the rear driver side trunk well just behind the rear wheel well. I did this upgrade several years ago and it was a huge improvement. I tapped those two pairs and sent that signal into an Audio Control LCi. From there I went to a JL Audio VXi1000/1 sub amp and JL WA7 10" sub in a sealed box. It was loud, very loud, too loud. Vibrated the car. Later on I did the rest of the channels with a JL VXi 800/8 amp and it was superb but then I sold the car and all the gear as I could not get it to work with my new S63 with the HE Burmester setup. To many nannies in HE system to overcome.
Super Member
Joined: Jun 2003
Posts: 713
Likes: 147
From: Aridzona
'15 S550, '10 E350 P1/P2, '02 ML320
This link from @UrBusted works for me, are you not able to see it?
If anyone needs it, here is a diagram for the entire car, sorry about how it's scanned, it was difficult to get this back when I was looking for it.
https://www.dropbox.com/s/3mfv5hw4nk...70828.pdf?dl=0
https://www.dropbox.com/s/3mfv5hw4nk...70828.pdf?dl=0
