Installation instruction for R230 SL55/SL65/SL500 carbon interior trims

Since many members asked how to remove/install the wood centerconsole and door trims on R230 SL models, we decieded just make a thread post porviding the detail step-by-step installation instruction for R230 owners' reference.
If you still have any question about the installation, feel free to contact us
[email protected]

First part, the door panels

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-001.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-002.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-003.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-004.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-005.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-006.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-007.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-008.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-010.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-009.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-0111.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-013.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-014.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-015.jpg
DCTMOTORSPORTS is online now
The following users liked this post:
dblankenbaker (03-26-2017)
Old 08-21-2010, 08:09 PM
  #2
SPONSOR
Thread Starter

DCTMOTORSPORTS's Avatar

Join Date: Feb 2009
Location: Cupertino
Posts: 2,409
Received 16 Likes on 16 Posts
W211 Estate
The center console

Part 2: center console

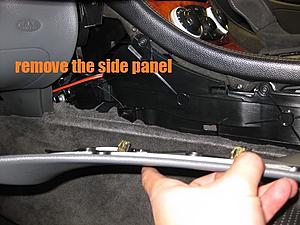

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-016.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-017.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-018.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-019.jpg

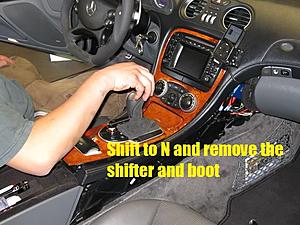

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-020.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-021.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-022.jpg

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-023.jpg

After remove the components (AC control/shifter frame/convertible op switch) from old panel, put them on new carbon console trim and put the console back!

Completed!

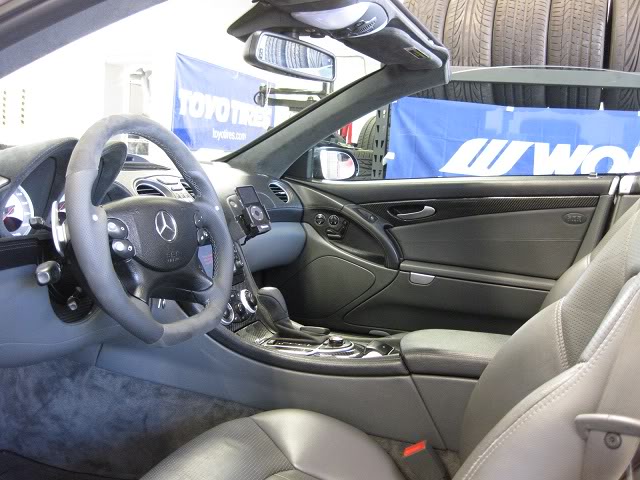

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-024.jpg


Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-sl55carboninteriorset_01.jpg

Last edited by DCTMOTORSPORTS; 08-21-2010 at 08:16 PM.
DCTMOTORSPORTS is online now
The following users liked this post:
dblankenbaker (03-26-2017)
Old 08-21-2010, 11:43 PM
  #3
Member

AdrockTT's Avatar

Join Date: May 2010
Posts: 211
Likes: 0
Received 0 Likes on 0 Posts
SL65
Helpful post, thank you.

Is removal of the shifter knob/boot the same for keyless go equipped cars?
AdrockTT is offline
Old 08-22-2010, 08:49 PM
  #4
Super Member

Join Date: Sep 2008
Location: Puerto Rico
Posts: 730
Likes: 0
Received 0 Likes on 0 Posts
2005 SL55 AMG, 1986 Porsche 930S, 1996 Porsche 993tt
it easier to do it after looking at pictures.
thanks.
Rick SL55 is offline
Old 08-23-2010, 01:25 PM
  #5
SPONSOR
Thread Starter

DCTMOTORSPORTS's Avatar

Join Date: Feb 2009
Location: Cupertino
Posts: 2,409
Received 16 Likes on 16 Posts
W211 Estate
shift knob removal

keyless go shifter removal is pretty much same as regular shifter
just make sure don't bend the connector pins

check this thread for more info!

Keyless go shifer



Originally Posted by AdrockTT View Post
Helpful post, thank you.

Is removal of the shifter knob/boot the same for keyless go equipped cars?
DCTMOTORSPORTS is online now
Old 08-23-2010, 07:11 PM
  #6
Member

AdrockTT's Avatar

Join Date: May 2010
Posts: 211
Likes: 0
Received 0 Likes on 0 Posts
SL65
Thanks for your response. I had read the keyless go shifter thread in the past and specifically wanted to avoid breaking/bending/ruining the pins.

In rereading the thread now, I think I'm still confused the best approach to prevent breakage.

Your instructions explain to be sure the pins are all the way into the holes before tightening, but don't cover how to safely remove the shifter/button without damaging the pins.

Could you (or anyone) clarify that part so I can save myself the soldering solution headache part

Thanks!
AdrockTT is offline
Old 08-23-2010, 09:34 PM
  #7
SPONSOR
Thread Starter

DCTMOTORSPORTS's Avatar

Join Date: Feb 2009
Location: Cupertino
Posts: 2,409
Received 16 Likes on 16 Posts
W211 Estate
Is not that complicated!
1 pull up the boot
2 release the nut at the bottom (clockwise, as I remember)
3 pull the whole shifter knob straight up
DONE~

Originally Posted by AdrockTT View Post
Thanks for your response. I had read the keyless go shifter thread in the past and specifically wanted to avoid breaking/bending/ruining the pins.

In rereading the thread now, I think I'm still confused the best approach to prevent breakage.

Your instructions explain to be sure the pins are all the way into the holes before tightening, but don't cover how to safely remove the shifter/button without damaging the pins.

Could you (or anyone) clarify that part so I can save myself the soldering solution headache part

Thanks!
DCTMOTORSPORTS is online now
Old 08-23-2010, 09:51 PM
  #8
MBWorld Fanatic!

Thericker's Avatar

Join Date: Feb 2004
Location: Southern, CA.
Posts: 9,155
Likes: 0
Received 11 Likes on 11 Posts
V12-Biturbo
Excellent info thnx for sharing! Q: All that has to come off to replace/take off the (2) small wood door strips??

Lastly I want this Suede/Alacantara shifter boot cover (I have Keyless-Go 2005 if matters?) How much? Availability? Thank you!
Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-020.jpg
Thericker is offline
Old 08-24-2010, 02:49 PM
  #9
SPONSOR
Thread Starter

DCTMOTORSPORTS's Avatar

Join Date: Feb 2009
Location: Cupertino
Posts: 2,409
Received 16 Likes on 16 Posts
W211 Estate
I know it is huge effort to remove just those 2 wood trims, but if you don't do it and try to pull off the trims with force from outside, all these small rings will fall off and rattling within your door panel
Also, you can not put the new trims back without those rings

Installation instruction for R230 SL55/SL65/SL500 carbon interior trims-013.jpg

Originally Posted by Thericker View Post
Excellent info thnx for sharing! Q: All that has to come off to replace/take off the (2) small wood door strips??

Lastly I want this Suede/Alacantara shifter boot cover (I have Keyless-Go 2005 if matters?) How much? Availability? Thank you!
DCTMOTORSPORTS is online now
Old 06-29-2012, 03:58 PM
  #10
Newbie

Join Date: Apr 2012
Location: San Diego California
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
SL55 AMG
Hello, I have a couple of quick questions, this may be off the topic but I'm having problem with my shifter. Since you are the professional in this type of job. I am hoping you can help me. My shifter is stuck in "Park" how can I remove the panel on my center console? Is is possible to remove the panel w/o shifting the gear from park to neutral? Your reply is very much appreciated. Thank you and have a good day.
ANT1SL55 is offline
