MBWorld.org Forums

W211 AMG Discuss the W211 AMG's such as the E55 and the E63

Hoses

Thread Tools

Search this Thread

Rate Thread

Old May 25, 2007 | 12:40 AM
Share
  #1
SleeperX's Avatar
SleeperX
Thread Starter
MBWorld Fanatic!

Joined: Nov 2005
Posts: 1,463
Likes: 0
E55
Hoses

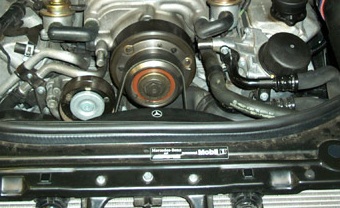

Does anyone know what the hoses to the left and right of the supercharger pulley do? Looking to the left of the supercharger pulley there are two lines that look almost identical. Right before they reach te supercharger they turn from rubber to metal. Are they both pumping coolant into the intercooler or is one pumping coolant into the intercooler and the other pumping coolant out? And what about the two hoses to the right of the supercharger pulley. What do they do? Any advise would be kindly appreciated. Thanks
Attached Thumbnails Hoses-lines.jpg
Reply
0
Old May 25, 2007 | 12:51 AM
Share
  #2
SleeperX's Avatar
SleeperX
Thread Starter
MBWorld Fanatic!

Joined: Nov 2005
Posts: 1,463
Likes: 0
E55

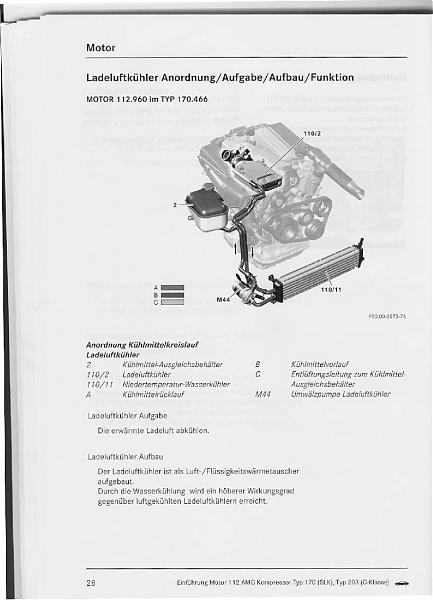

Does anyone have a chart like this for an W211 E55 AMG?
Attached Thumbnails Hoses-intercooler.jpg
Reply
0
Old May 25, 2007 | 06:46 AM
Share
  #3
OzE55's Avatar
OzE55
MBWorld Fanatic!

Joined: Apr 2005
Posts: 1,117
Likes: 0
From: Brisbane, Australia
2003 E55
In Finny's "project awe" thread this is the current question - I sure Finny will chime in.
Reply
0
Old May 25, 2007 | 08:18 AM
Share
  #4
enzom's Avatar
enzom
MBWorld Fanatic!
20 Year Member

Joined: Aug 2004
Posts: 1,732
Likes: 1
From: NJ
2005 E55
What are you up to now, SleeperX??
Reply
0
Old May 25, 2007 | 08:18 AM
Share
  #5
Finny's Avatar
Finny
Super Member
Photogenic
Shutterbug
Liked
Loved

Joined: May 2006
Posts: 566
Likes: 21
From: Australia
03 E55 AMG
If you mean the two black hoses located to the Left & Right just above the pulley on the charger face...This is a hollowed out section to plumb the emissions air pump. You know that sound you hear when you first start up after the car is cool...That vacuum cleaner sound... The air pump helps the cats get hot so they can do their job quicker thus lowering emissions.
Reply
0
Old May 25, 2007 | 08:20 AM
Share
  #6
Finny's Avatar
Finny
Super Member
Photogenic
Shutterbug
Liked
Loved

Joined: May 2006
Posts: 566
Likes: 21
From: Australia
03 E55 AMG
Originally Posted by SleeperX
Does anyone have a chart like this for an W211 E55 AMG?
It looks the same as a 55 stock set up...?
Reply
0
Old May 25, 2007 | 08:21 AM
Share
  #7
SleeperX's Avatar
SleeperX
Thread Starter
MBWorld Fanatic!

Joined: Nov 2005
Posts: 1,463
Likes: 0
E55
Originally Posted by Finny
If you mean the two black hoses located to the Left & Right just above the pulley on the charger face...This is a hollowed out section to plumb the emissions air pump. You know that sound you hear when you first start up after the car is cool...That vacuum cleaner sound... The air pump helps the cats get hot so they can do their job quicker thus lowering emissions.
Thanks. I was actually referring to the hoses just below those hoses though. I believe you and Stevebez mentioned that the hoses on the left which connect to the steel pipes are for coolant (in & out). What are the ones on the left for?
Reply
0

Trending Topics

Old May 25, 2007 | 08:24 AM
Share
  #8
SleeperX's Avatar
SleeperX
Thread Starter
MBWorld Fanatic!

Joined: Nov 2005
Posts: 1,463
Likes: 0
E55
Originally Posted by enzom
What are you up to now, SleeperX??
I will put up a post within the next two weeks if I am successful..
Reply
0
MB World Stories

The Best of Mercedes & AMG

story-0

Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

 Verdad Gallardo
story-1

8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

 Verdad Gallardo
story-2

Flawlessly Restored Mercedes 190E Evo II Heads to Auction

 Verdad Gallardo
story-3

Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

 Verdad Gallardo
story-4

Mercedes EQS Gets A Major Update: Everything You Need to Know

 Verdad Gallardo
story-5

5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

 Verdad Gallardo
story-6

Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

 Verdad Gallardo
story-7

10 Most Reliable Mercedes-Benz Models You Can Buy Used

 Verdad Gallardo
story-8

Mercedes Teases Updated EQS With Steer-By-Wire and a Yoke

 Verdad Gallardo
story-9

8 Mercedes Models With Poor Reliability Records

 Verdad Gallardo
Old May 25, 2007 | 08:33 AM
Share
  #9
Finny's Avatar
Finny
Super Member
Photogenic
Shutterbug
Liked
Loved

Joined: May 2006
Posts: 566
Likes: 21
From: Australia
03 E55 AMG
Originally Posted by SleeperX
Thanks. I was actually referring to the hoses just below those hoses though. I believe you and Stevebez mentioned that the hoses on the left which connect to the steel pipes are for coolant (in & out). What are the ones on the left for?
The two metal (alloy) ones on the Left is s/c core coolent, above L&R = Air pump plumbing, to the Right main Air pump in, a little more right and up engine oil to cooler.
Reply
0
Old May 25, 2007 | 08:40 AM
Share
  #10
SleeperX's Avatar
SleeperX
Thread Starter
MBWorld Fanatic!

Joined: Nov 2005
Posts: 1,463
Likes: 0
E55
Originally Posted by Finny
The two metal (alloy) ones on the Left is s/c core coolent, above L&R = Air pump plumbing, to the Right main Air pump in, a little more right and up engine oil to cooler.
Thanks...
Reply
0
Back to Subforum
W211 AMG
View Next Unread
Fun with an M3

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)



You have already rated this thread Rating: Thread Rating: 0 votes, average.
Show Printable Version
Email this Page

Advanced Search

All times are GMT -4. The time now is 08:54 AM.

story-0
Mercedes SLR McLaren 722 S Is Extremely Rare Example Modified by McLaren

Slideshow: A one-of-one U.S.-spec Mercedes-Benz SLR McLaren Roadster became even rarer after a factory-backed transformation at McLaren's headquarters.

By Verdad Gallardo | 2026-04-29 11:19:28


VIEW MORE
story-1
8 Classic Boxy Mercedes Designs That Have Aged Like Fine Wine

Slideshow: Before curves took over, Mercedes mastered the art of the straight line, and some of those shapes still look right today.

By Verdad Gallardo | 2026-04-25 12:05:49


VIEW MORE
story-2
Flawlessly Restored Mercedes 190E Evo II Heads to Auction

Slideshow: The 190E Evolution II shows how a homologation necessity became a six-figure collector icon.

By Verdad Gallardo | 2026-04-22 17:53:47


VIEW MORE
story-3
Electric Mercedes C-Class Unveiled: 11 Things You Need to Know

Slideshow: Mercedes is turning one of its core nameplates electric, and the details show just how serious this shift is.

By Verdad Gallardo | 2026-04-21 13:58:06


VIEW MORE
story-4
Mercedes EQS Gets A Major Update: Everything You Need to Know

Slideshow: Faster charging, longer range, and a controversial steer-by-wire system define the latest evolution of Mercedes-Benz EQS.

By Verdad Gallardo | 2026-04-15 10:35:34


VIEW MORE
story-5
5 Underrated Mercedes-Benz Models That Don't Get the Love They Deserve

Slideshow: These overlooked Mercedes-Benz models never got the spotlight, but they quietly delivered more than most remember.

By Verdad Gallardo | 2026-04-13 19:35:45


VIEW MORE
story-6
Mercedes 300D Has Pushed Well Past 1 Million Miles and It Ain't Stopping

Slideshow: A well-used 1991 Mercedes-Benz 300D with more than one million miles is now looking for a new owner, and it still appears ready for more.

By Verdad Gallardo | 2026-04-10 10:05:15


VIEW MORE
story-7
10 Most Reliable Mercedes-Benz Models You Can Buy Used

Slideshow: From bulletproof sedans to surprisingly tough SUVs, these Mercedes models proved that the three-pointed star can go the distance.

By Verdad Gallardo | 2026-04-08 09:55:49


VIEW MORE
story-8
Mercedes Teases Updated EQS With Steer-By-Wire and a Yoke

Slideshow: The 2027 update adds a fully digital steering system, revised styling, and potential charging upgrades as the company looks to revive interest in the luxury EV.

By Verdad Gallardo | 2026-04-04 10:24:38


VIEW MORE
story-9
8 Mercedes Models With Poor Reliability Records

Slideshow: From problematic air suspensions to early dual-clutch transmission issues, these specific models and years stand out as the least dependable modern Mercedes vehicles.

By Verdad Gallardo | 2026-03-26 18:08:10


VIEW MORE
